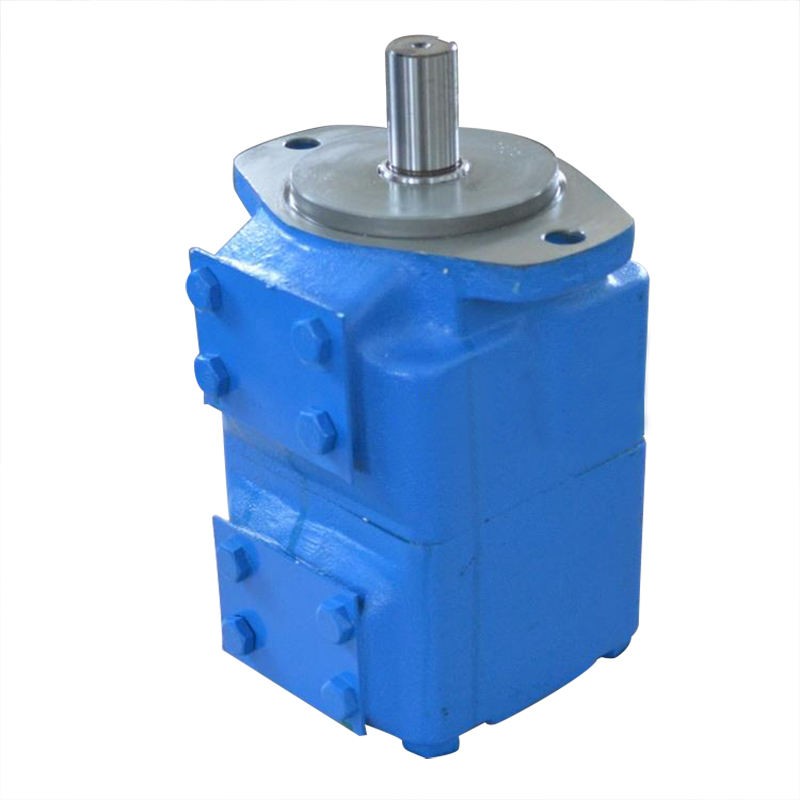

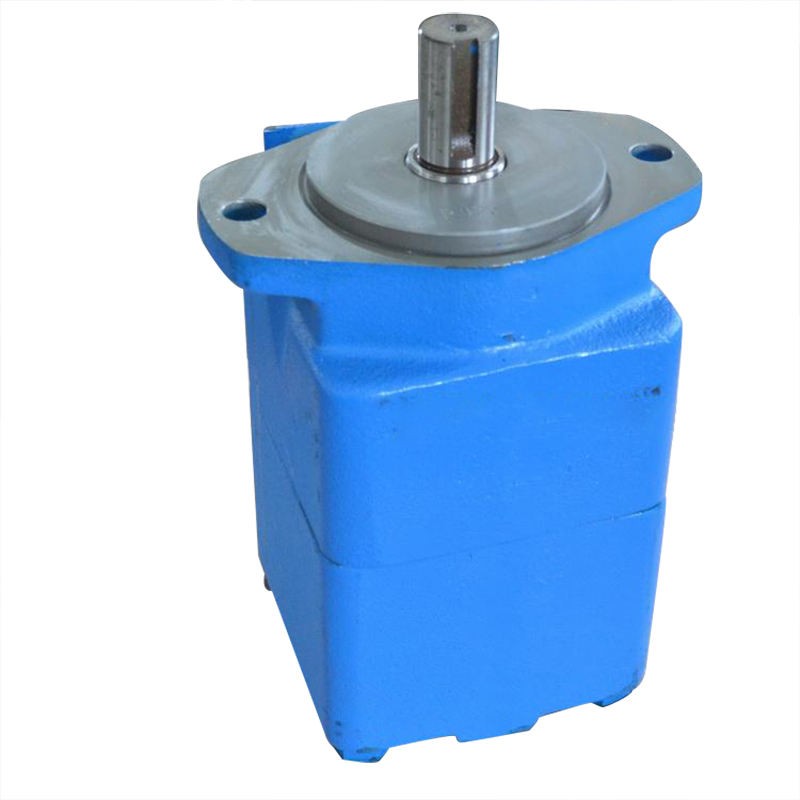

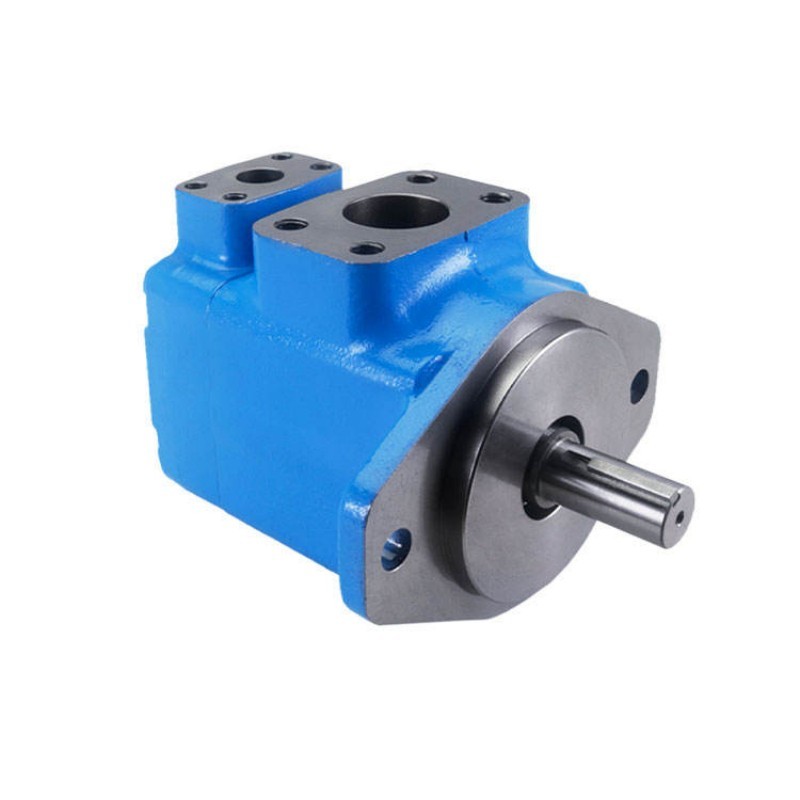

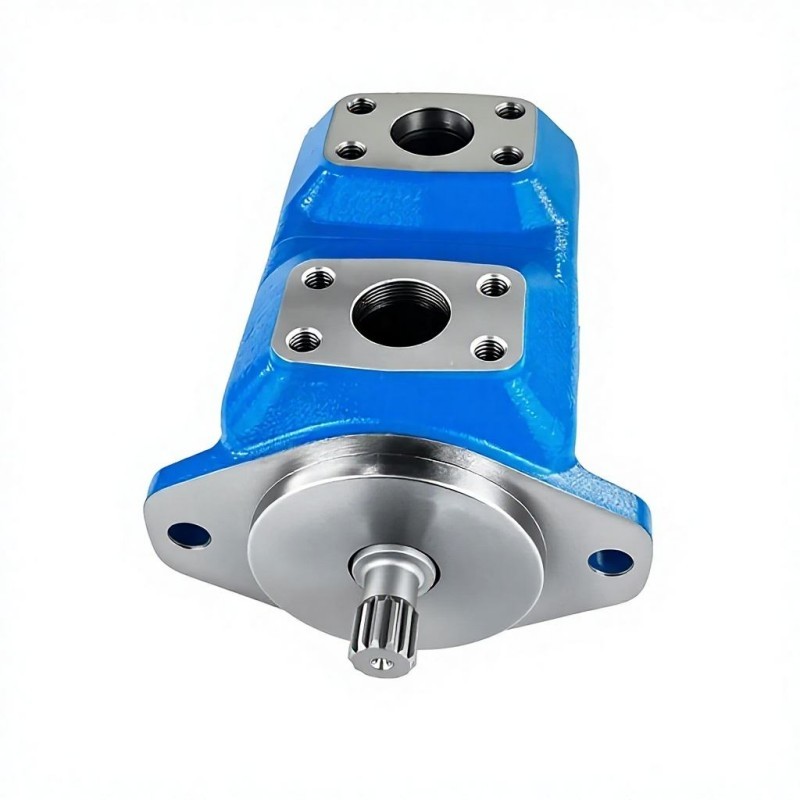

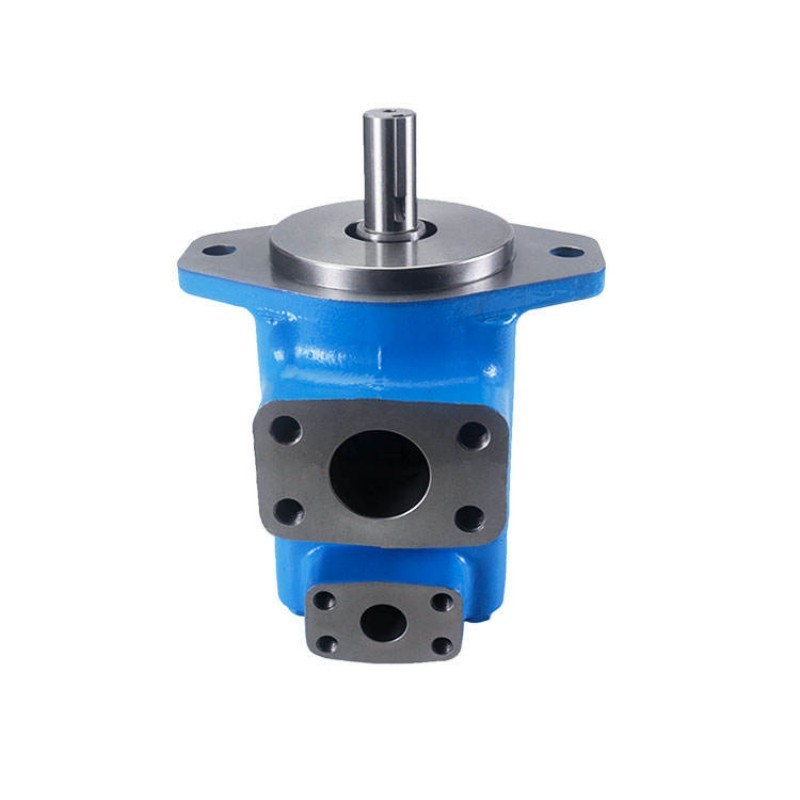

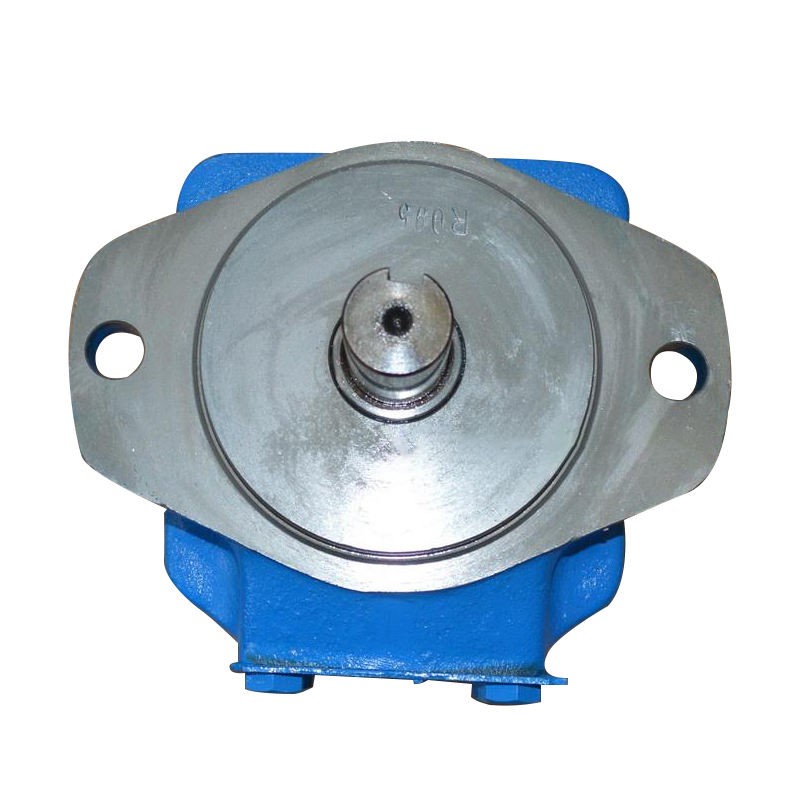

25M-50M Series Vane Motor
25M-50M Series vane motor is a fixed-displacement vane motor. It features compact structure, stable output torque and low operating noise. With good shock resistance, it can adapt to various hydraulic system working conditions and is widely used in construction machinery and industrial hydraulic equipment.
25M-50M Series-Vane Motor

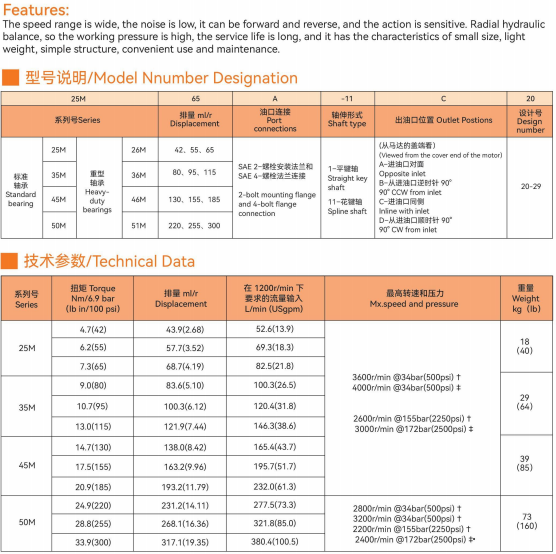

| 25M | 65 | A | -11 | C | 20 | |||
| Series | ml/r Displacement | Port connections | Shaft type | Outlet Postions | Design number | |||
| Standard bearing | 25M | Heavy- duty bearings | 26M | 42、55、65 | 2-bolt mounting flange and 4-bolt flange connection | 1- Straight key shaft 11- Spline shaft | (Viewed from the cover end of the motor) A- Opposite inlet B- 90°CCW from inlet C- Inline with inlet D- 90°CW from inlet | 20-29 |
| 35M | 36M | 80、95、115 | ||||||
| 45M | 46M | 130、155、185 | ||||||
| 50M | 51M | 220、255、300 | ||||||
Pin-supported vane design reduces friction and wear
High pressure capability with stable performance
Low noise and low vibration operation
High volumetric efficiency
Long service life and reliable operation
Suitable for continuous and heavy-duty applications
Applications
Industrial hydraulic power units
Injection molding machines
Press machines
Machine tools
Die casting equipment
Metallurgical and heavy-duty machinery
