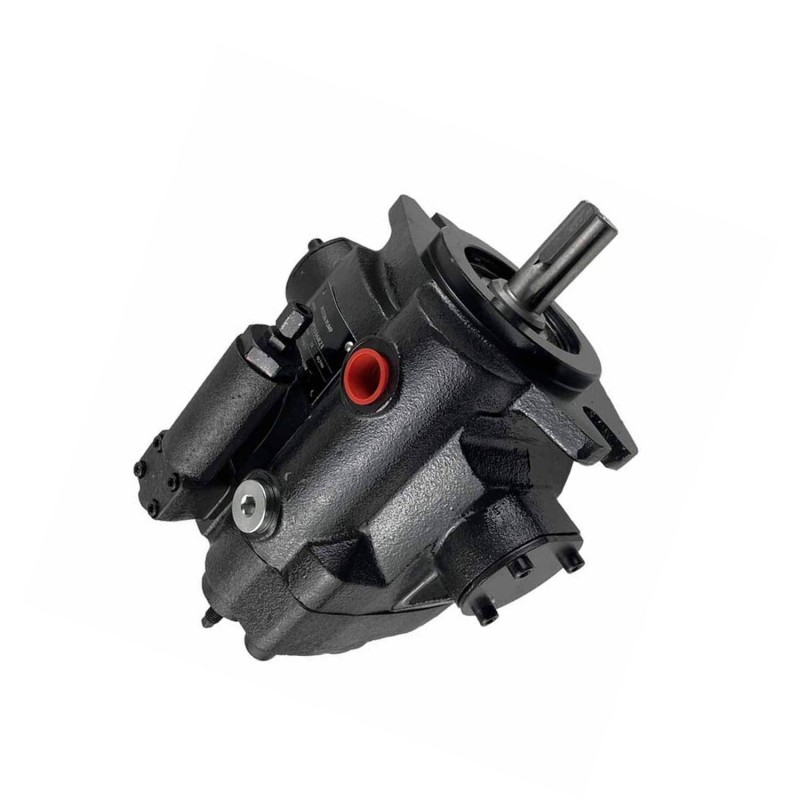

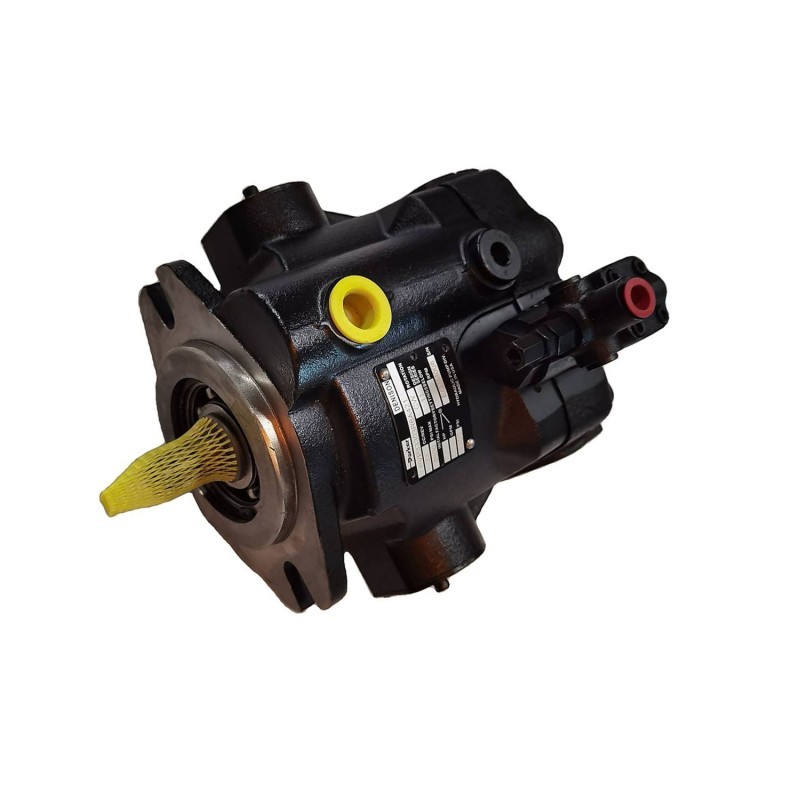

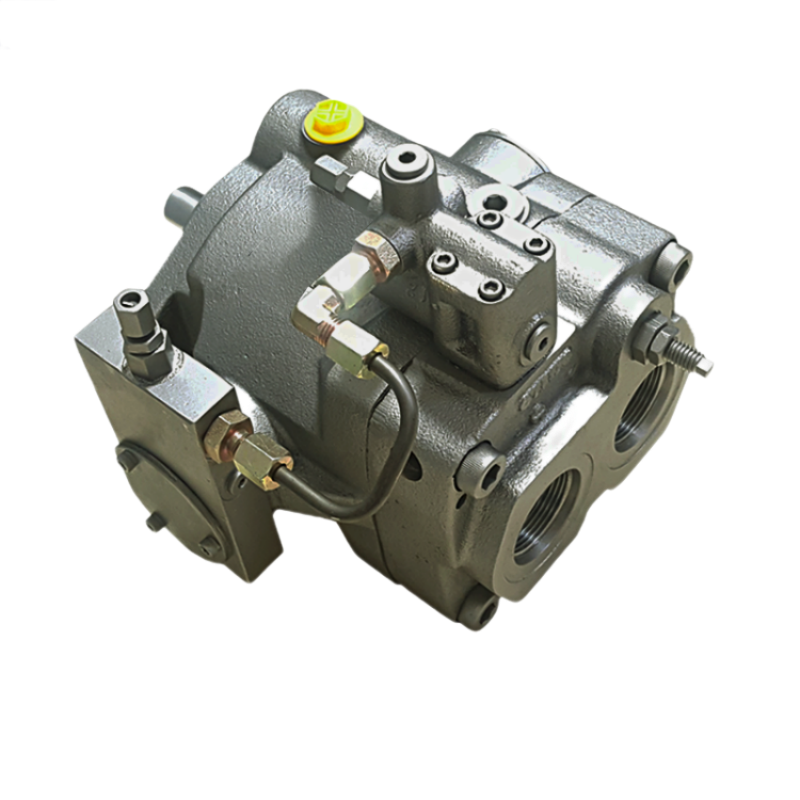

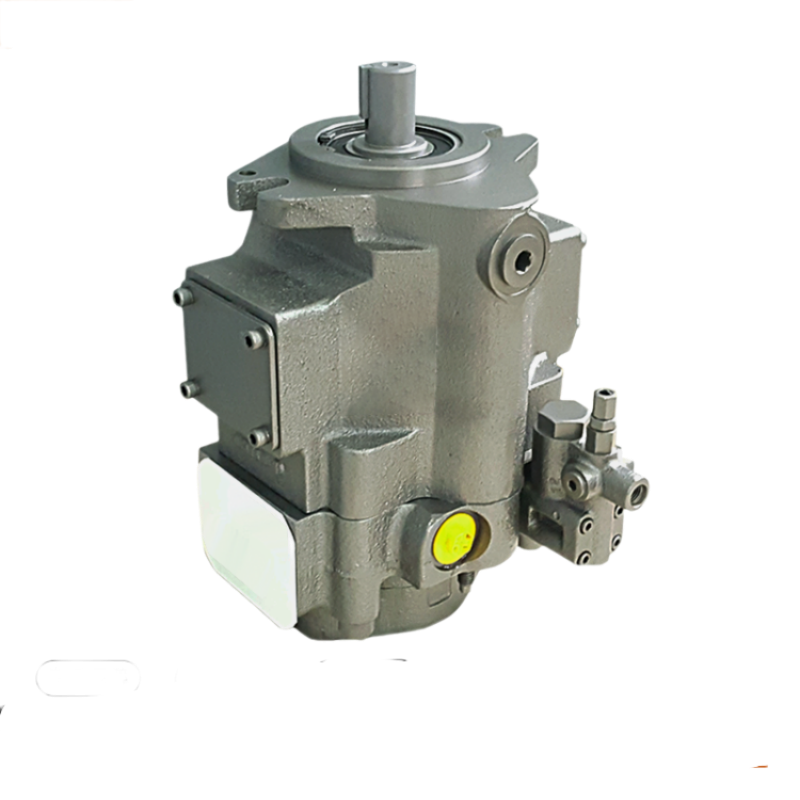

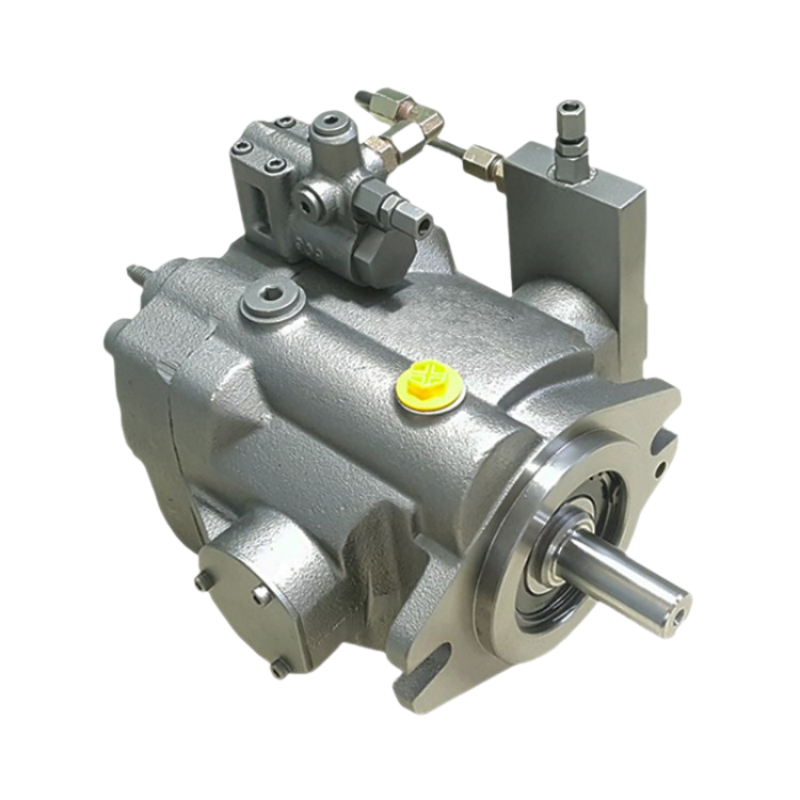

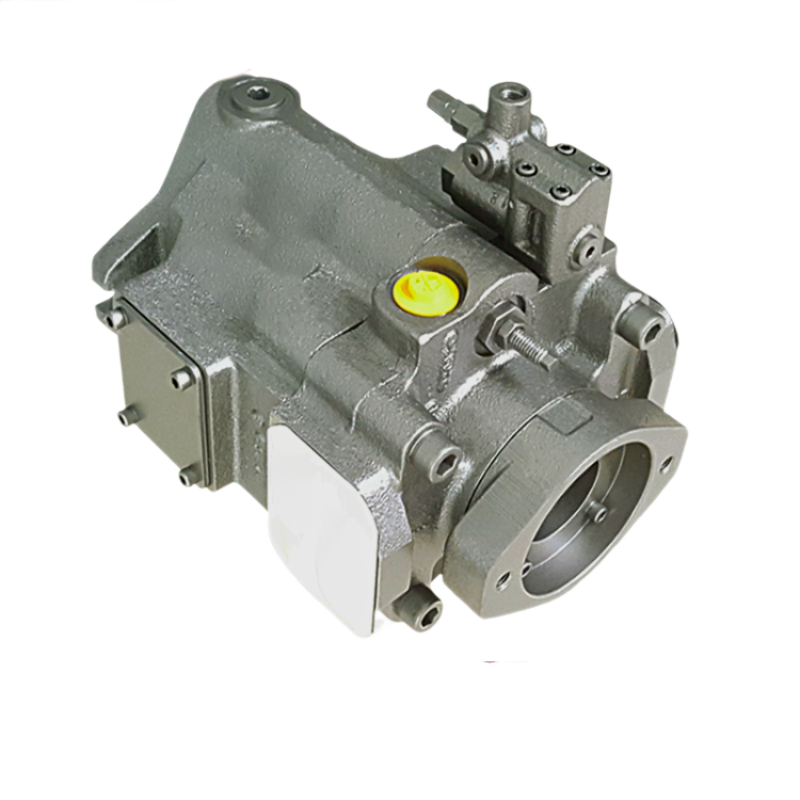

PVP Series Variable Displacement Axial Piston Pump
PVP series is swash plate type variable displacement axial piston pump designed for open hydraulic circuit. Displacement ranges from 16 to 140cc/rev. Continuous rated pressure reaches 250bar and short term peak pressure hits 350bar. It adopts thru shaft driving structure for single pump application or multi pump series combination. Multiple control modes are optional. High strength cast iron housing is applied. Valve plate and piston slipper assembly can be replaced separately. It delivers excellent noise performance and is widely used in industrial hydraulic equipment and small and medium mobile machinery fields.
Key Advantages
•Fast variable response adjusts output flow in real time according to load changes
•Excellent volumetric efficiency keeps stable internal leakage under long time operation
•Outstanding comprehensive cost performance balances performance index and spare parts procurement cost
•Wide applicable speed range satisfies driving requirements from different prime movers mining and engineering equipment
| Product Parameters | |||||||||
| Size NG | 16 | 23 | 33 | 41 | 48 | 60 | 76 | 100 | 140 |
| Displacement(cm³/rev) | 16 | 23 | 33 | 41 | 48 | 60 | 76 | 100 | 140 |
| Speed (rpm) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Flow (L/min) | 28.8 | 41.4 | 59.4 | 73.8 | 86.4 | 108 | 136.8 | 180 | 252 |
| Nominal pressure (bar) | 248 | ||||||||
| Max.pressure(bar) | 310 | ||||||||
| Weight(approx.)(kg) | 13.2 | 20.4 | 20.4 | 25 | 25 | 41 | 41 | 82 | 82 |
| Application field | Machine tool forging,metallurgy,engineering, mining,shipbuilding and other mechanical fields | ||||||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
