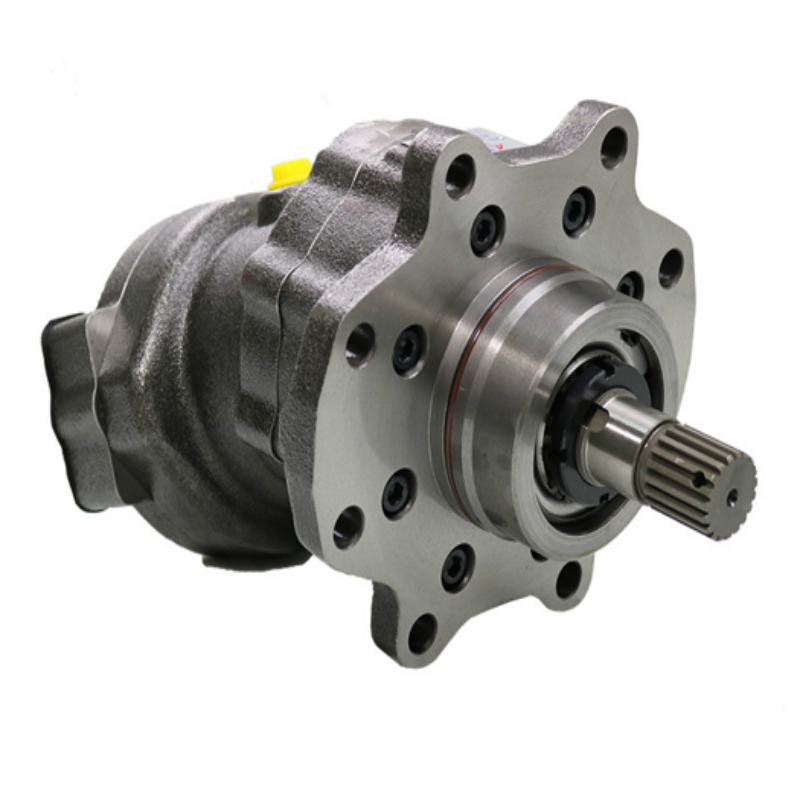

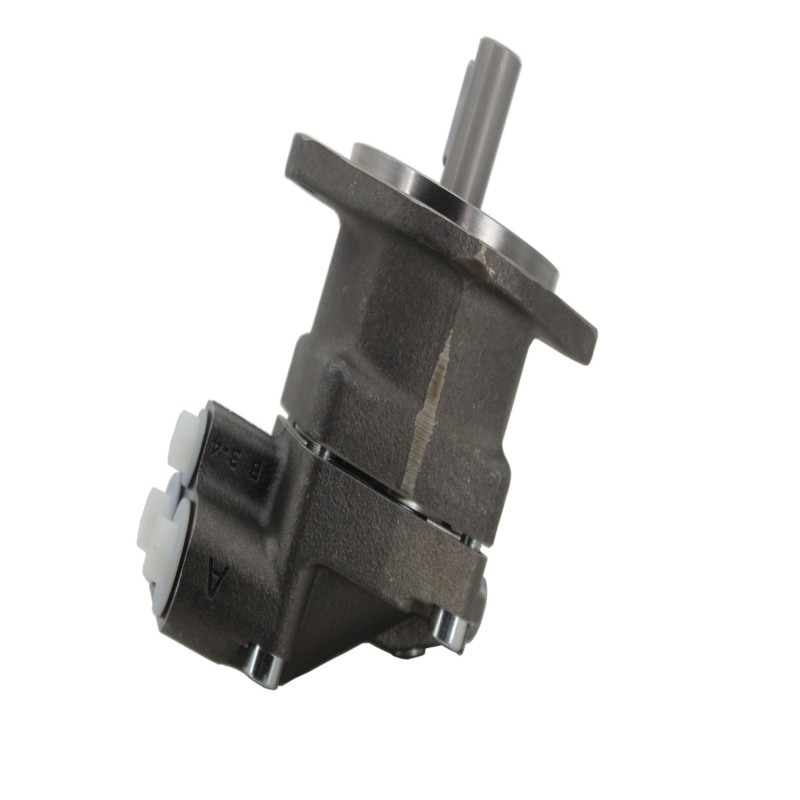

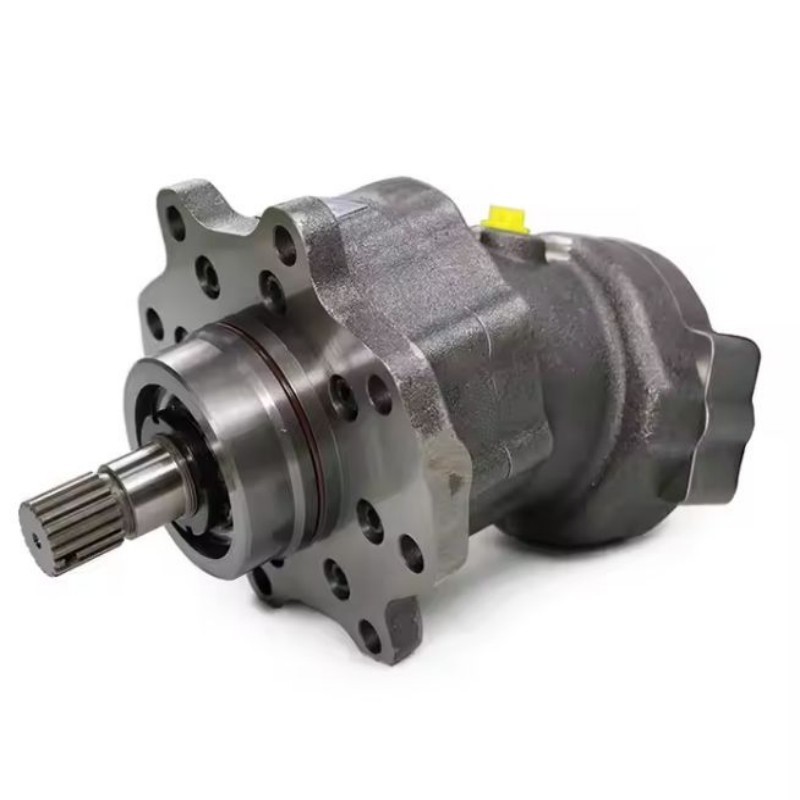

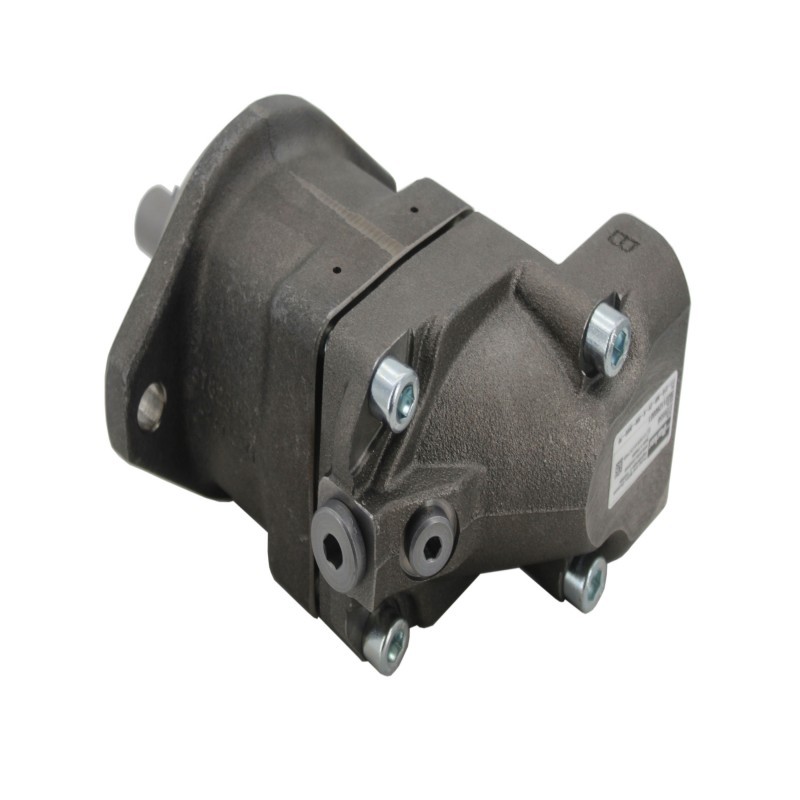

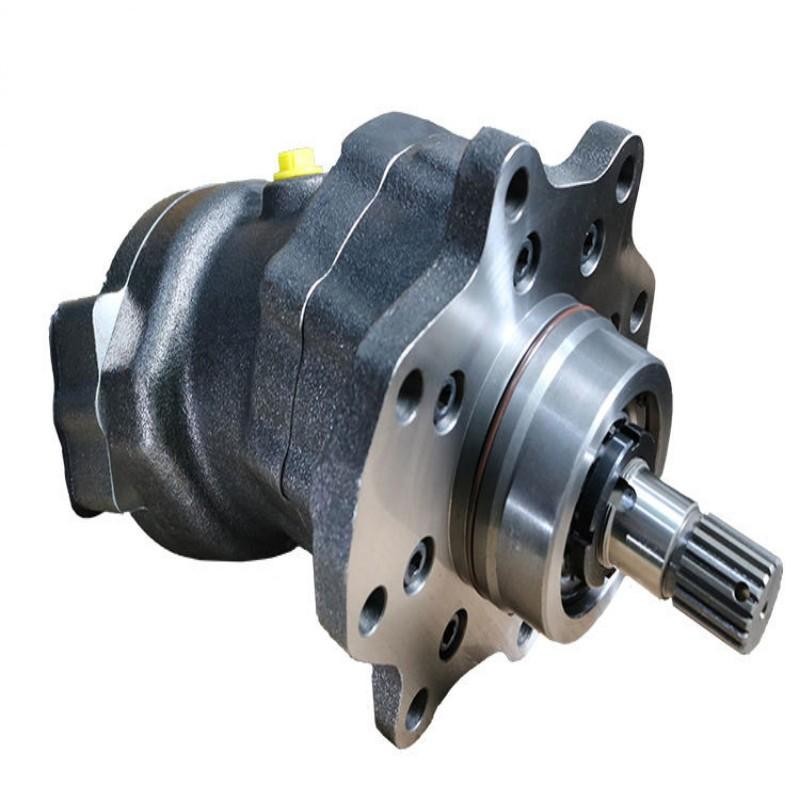

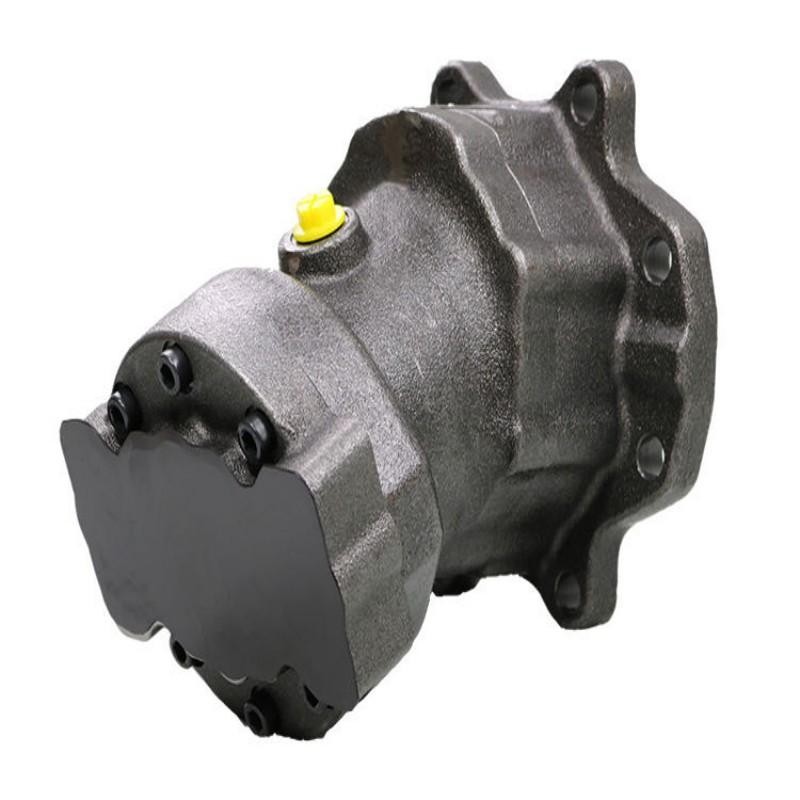

KMF90 Cartridge Fixed Displacement Motor
Plug-in Quantitative Motor
| Product Parameters | |
| Size NG | 90 |
| Displacement(cm³/rev) | 90 |
| Speed (rpm) | 3000 |
| Nominal pressure(bar) | 320 |
| Max.pressure (bar) | 350 |
| Torque p=320bar(Nm) | 459 |
| Weight(approx.)(kg) | 36 |
| Application field | Used in high-frequency vibration motors of pile drivers and various types of equipment that require high-speed rotation |
Small footprint for compact layout inside construction machinery
Stable output torque delivers sensitive and reliable swing start stop response
Excellent shock resistance fits frequent reversing swing condition for excavators
Easy disassembly and maintenance. Cartridge assembly can be replaced separately when fault occurs
Applications
Excavator swing mechanism and small rotary drilling equipment
construction machinery swing drive
mining rotary device and construction winch auxiliary drive
special engineering machinery
modified construction machinery
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 7-15 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
