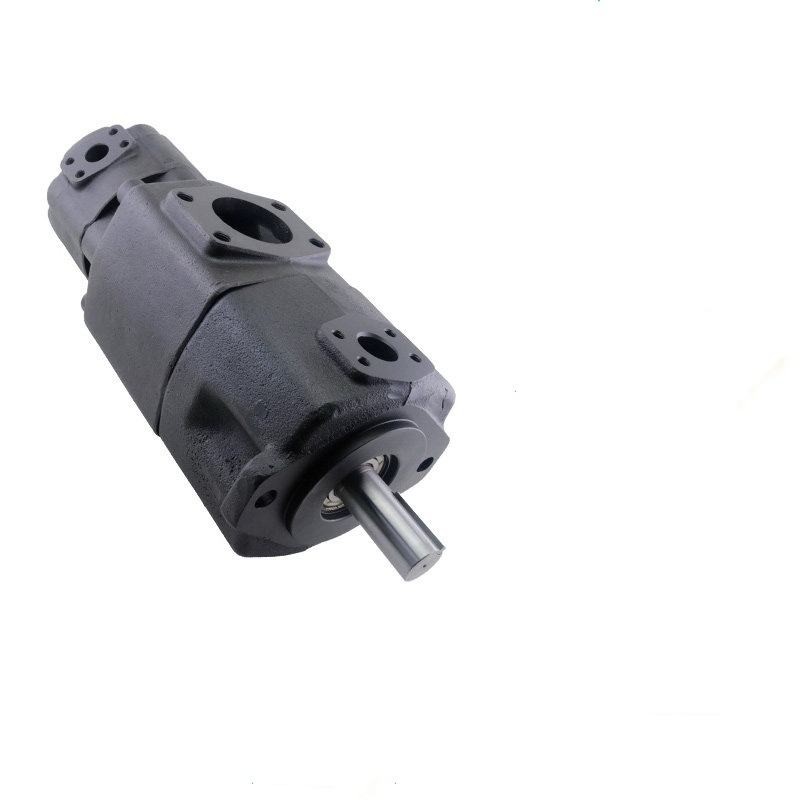

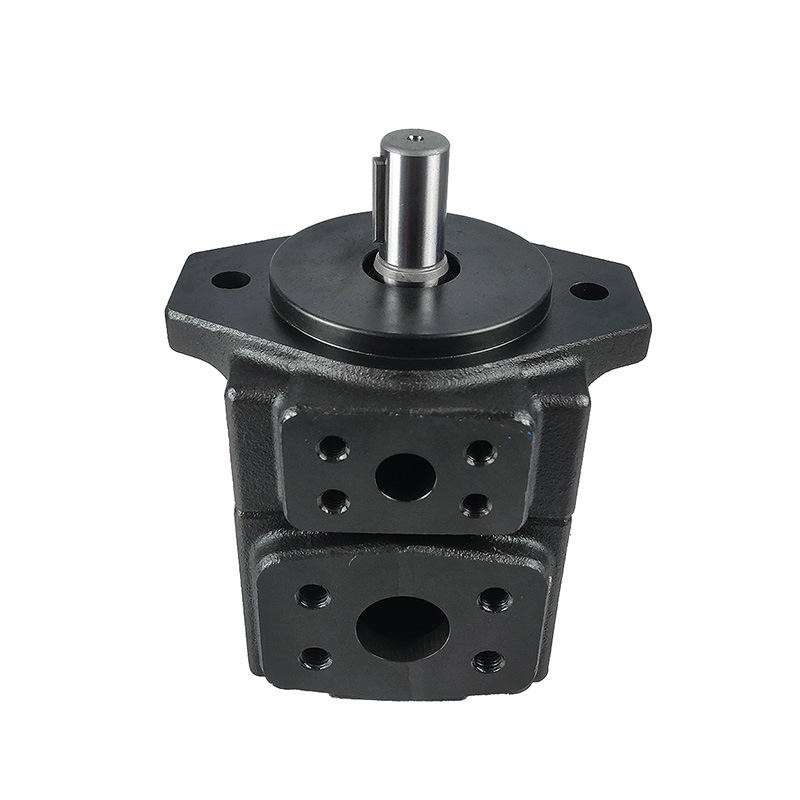

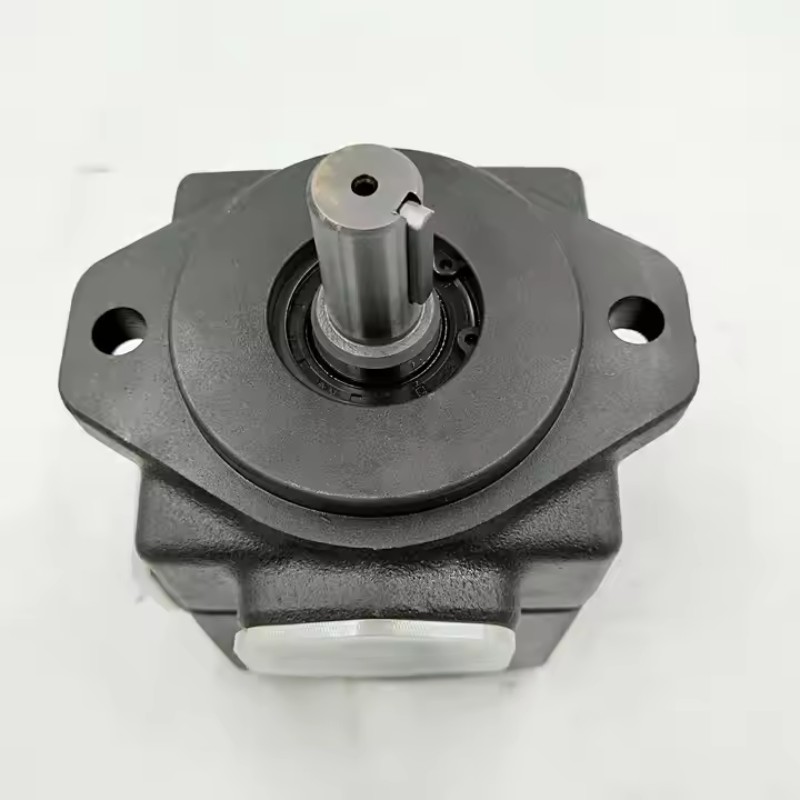

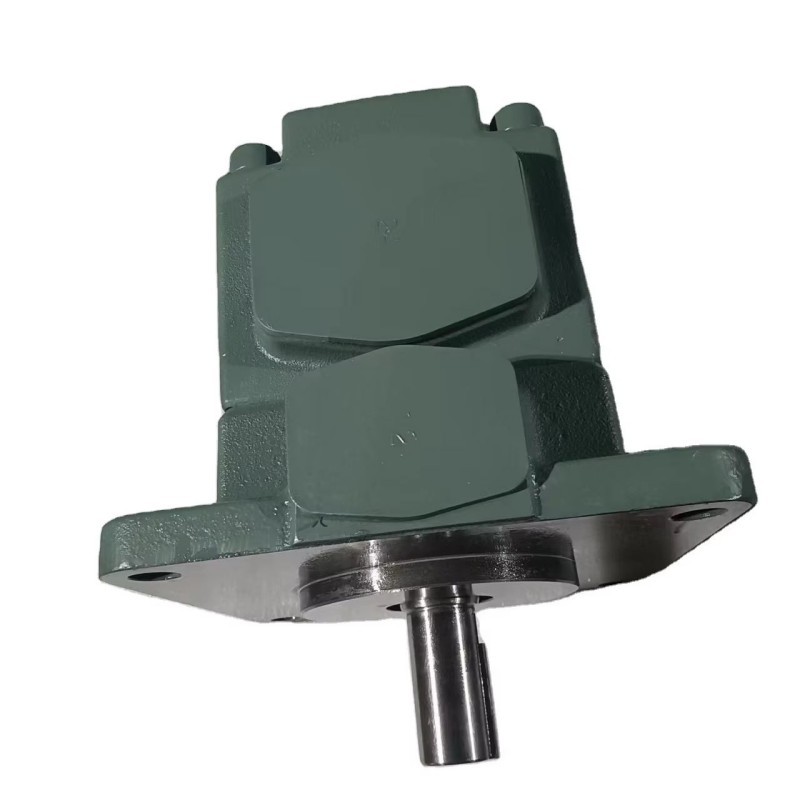

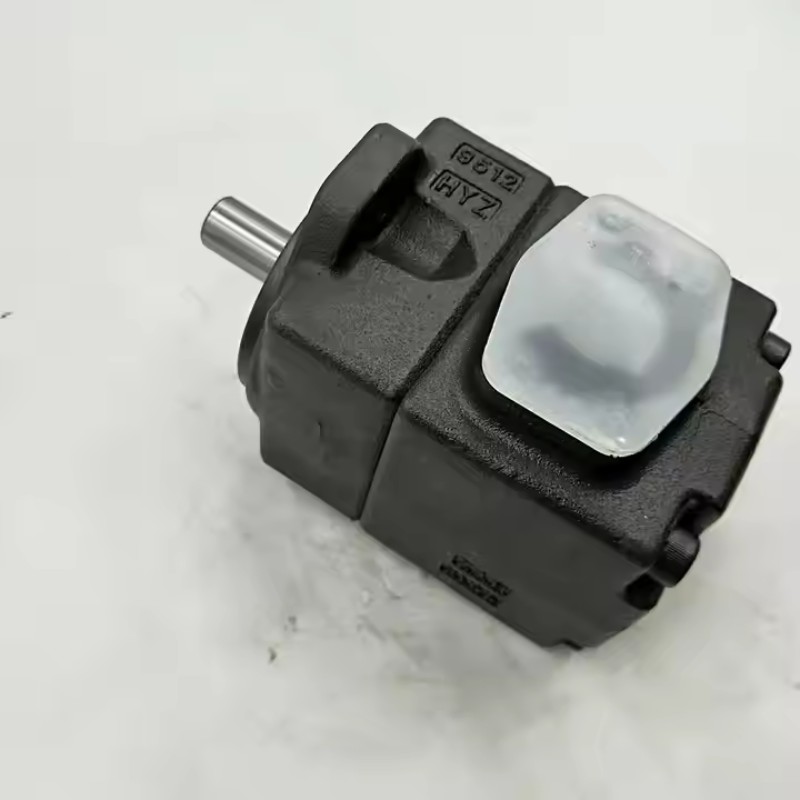

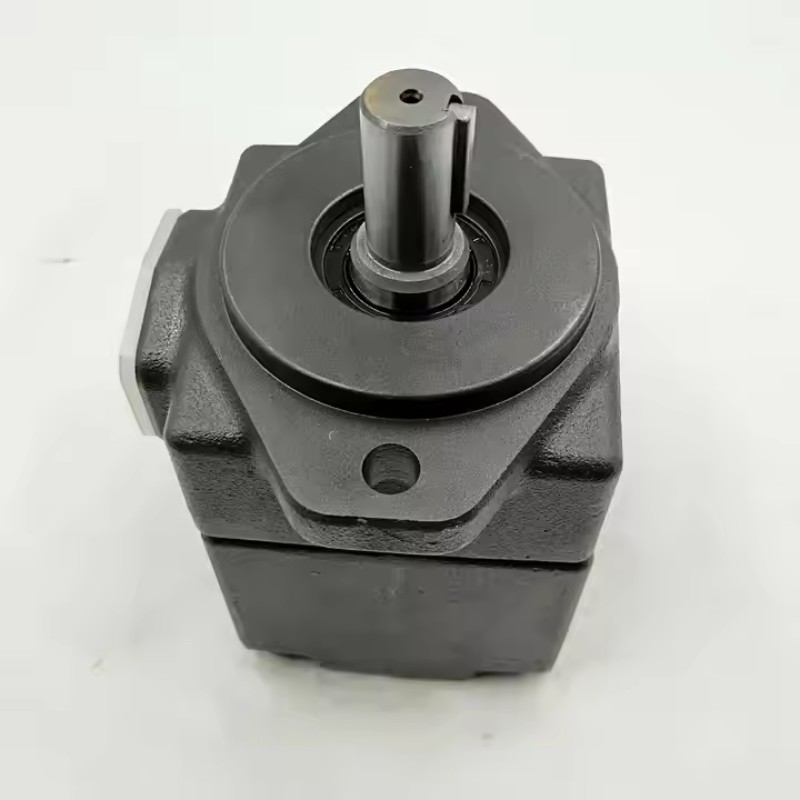

S-PV2R Series Fixed Displacement Vane Pump

S-PV2R Series Fixed Displacement Vane Pump
S‑PV2R single and double vane pumps adopt pressure‑balanced intra‑vane structure with rated pressure up to 21MPa. It delivers stable flow output and low operating noise. Independent replaceable cartridge simplifies maintenance. Double pump supports various displacement combinations. Flange and port dimensions are interchangeable with original pumps, widely used in machine tools, injection molding, forging and other industrial hydraulic systems.

Product Details

Product Tags

Product Description

S-PV2R series fixed displacement vane pump is high-performance low-medium pressure vane pump with single and double pump versions available. Equipped with precision cam ring and wear-resistant vanes, it delivers smooth pressure output with small pulsation and low running noise. Compact structure enables easy disassembly and maintenance. It is widely used in machine tools, injection molding equipment, rubber-plastic machinery and hydraulic power units.

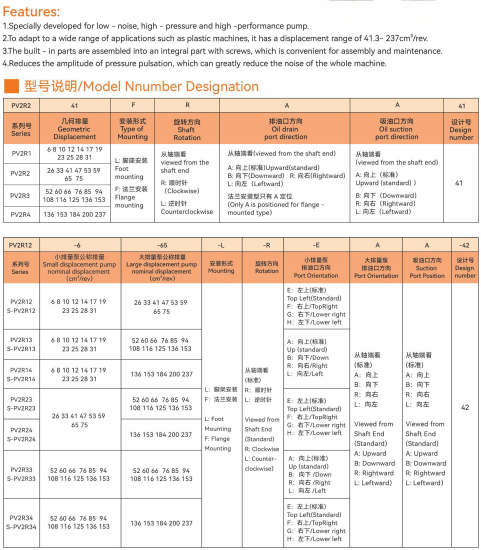

S-PV2R,Series Single/Double Vane Pumps


Model
Displacement
(cm³/rev)
Max Pressure
(kgf/cm²)		Speed Range(rpm)

Maximum Speed
Minimum Speed
PV2R1-65.8 210 1800 750
PV2R1-88.0
PV2R1-109.4
PV2R1-1212.2
PV2R1-1413.7
PV2R1-1716.6
PV2R1-1918.6
PV2R1-2322.7
PV2R1-2525.3
PV2R1-2828.1
PV2R1-3131.0 160
PV2R2-2626.6 210 1800 600
PV2R2-3333.3
PV2R2-4141.3
PV2R2-4747.2
PV2R2-5352.5
PV2R2-5958.2
PV2R2-6564.7
PV2R2-7575 160
PV2R3-5252.2 210 1800 600
PV2R3-6059.6
PV2R3-6666.3
PV2R3-7676.4
PV2R3-8585
PV2R3-9493.6
PV2R3-108108 160
PV2R3-116115.6
PV2R3-125125 140
PV2R3-136136
PV2R3-153153
PV2R4-136136 175 1800 600
PV2R4-153153
PV2R4-184184
PV2R4-200201
PV2R4-237237


  • Pin-supported vane design reduces friction and wear

  • High pressure capability with stable performance

  • Low noise and low vibration operation

  • High volumetric efficiency

  • Long service life and reliable operation

  • Suitable for continuous and heavy-duty applications

Applications

  • Industrial hydraulic power units

  • Injection molding machines

  • Press machines

  • Machine tools

  • Die casting equipment

  • Metallurgical and heavy-duty machinery
