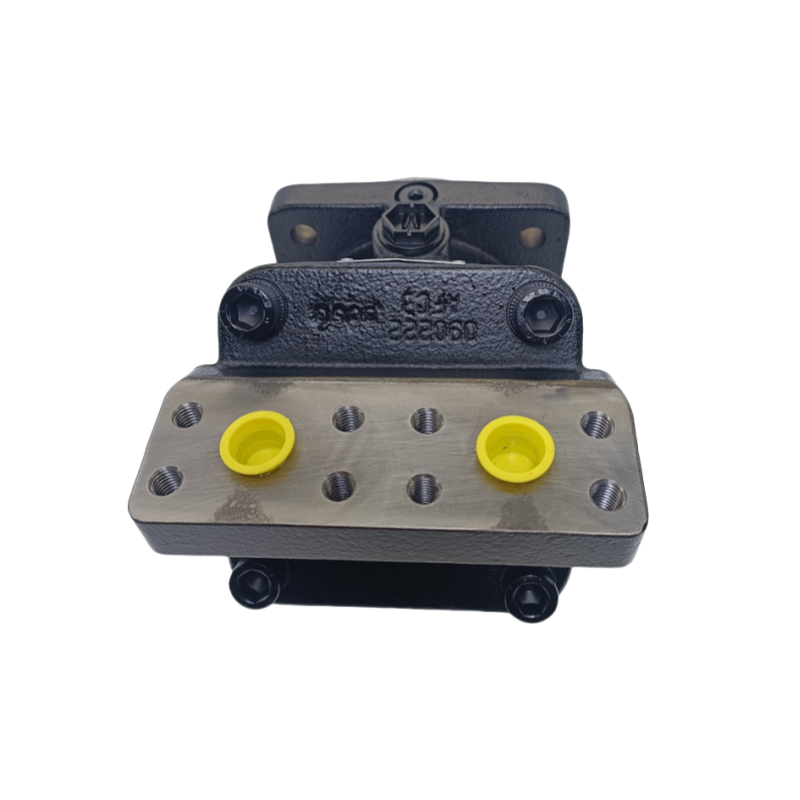

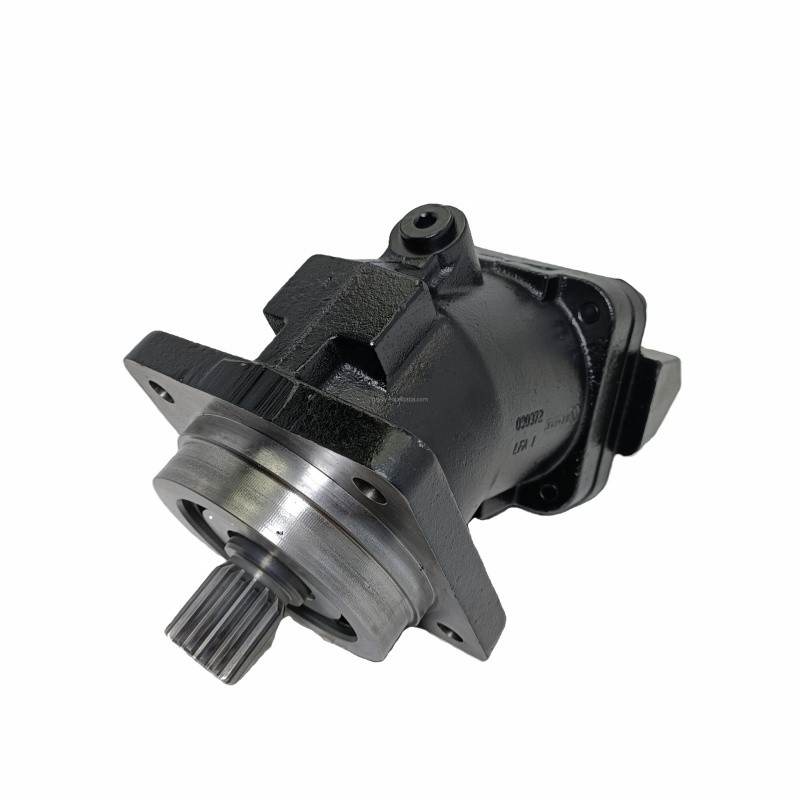

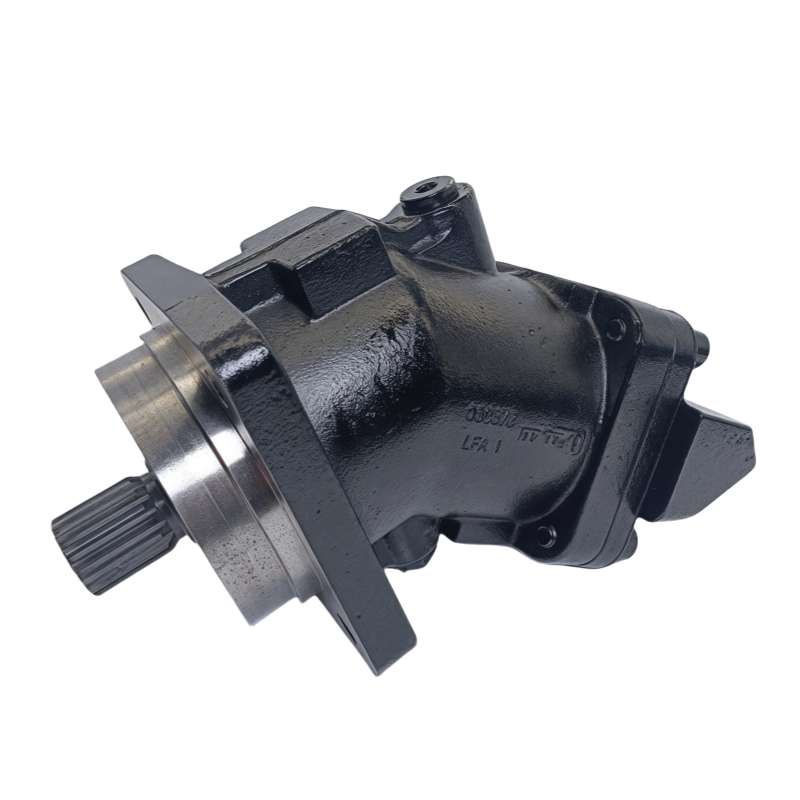

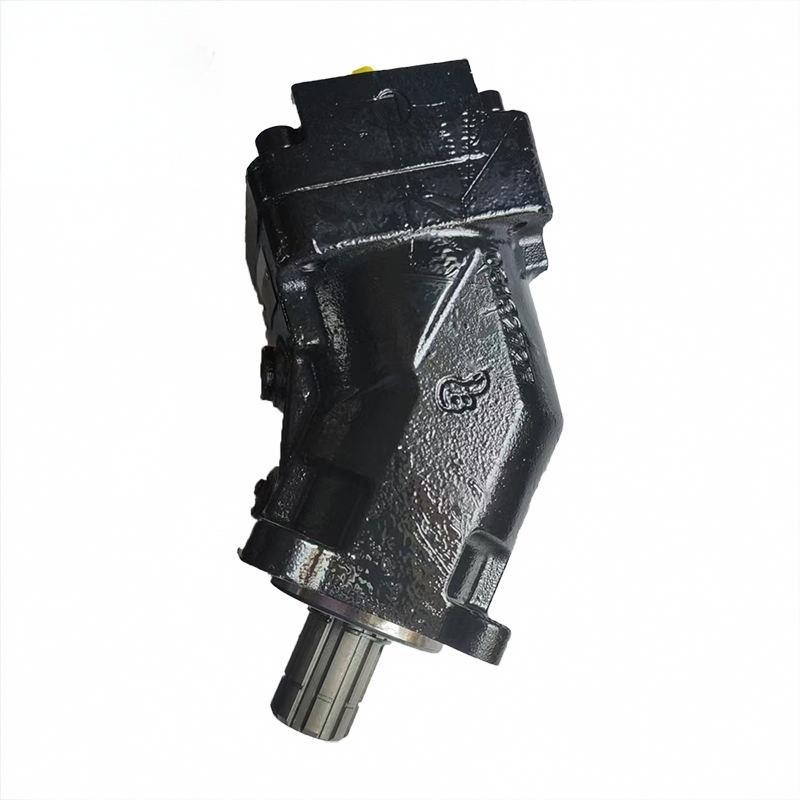

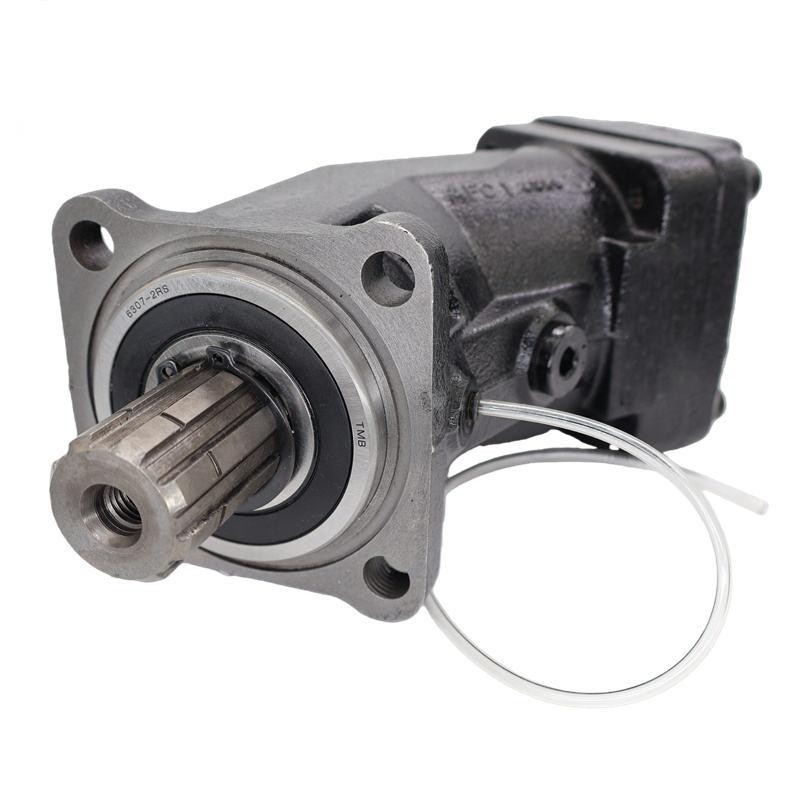

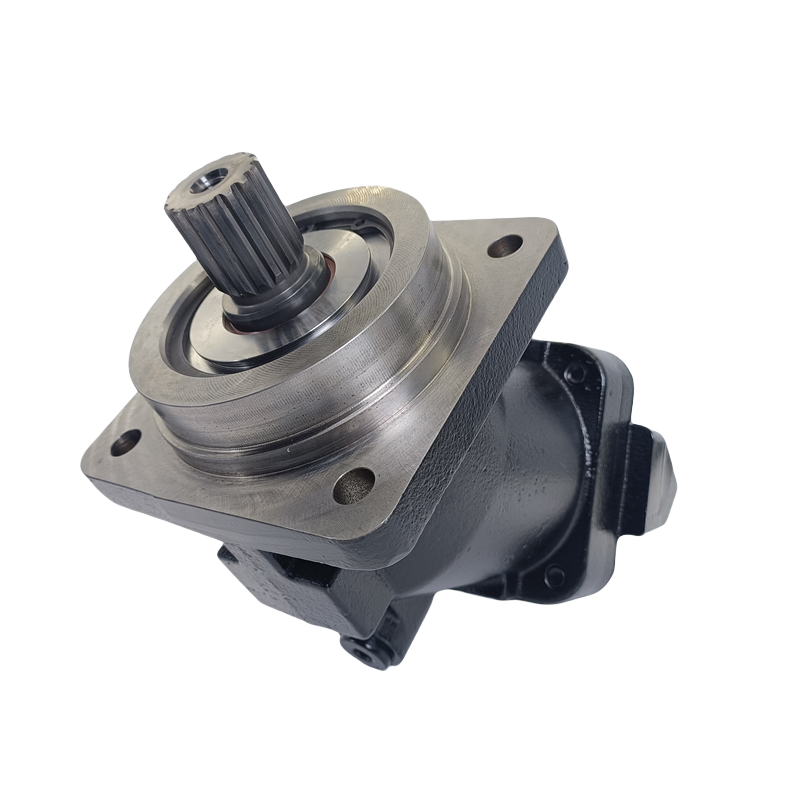

M Series Fixed Displacement Axial Piston Motor
Axial Piston Metering Motor
| Product Parameters | ||||||
| Size NG | 6 | 7 | 11 | 14 | 24 | 30 |
| Displacement (ml/rev) | 98.3 | 118.8 | 180.3 | 229.5 | 403.2 | 501.5 |
| Speed (rpm) | 3000 | 3000 | 2400 | 2400 | 2100 | 1800 |
| Torque p=350bar(Nm) | 539.5 | 651.9 | 990 | 1250 | 2158 | 2752 |
| Nominal pressure (bar) | 350 | |||||
| Max.pressure(bar) | 420 | |||||
| Mass(approx.)(kg) | 50 | 50 | 110 | 110 | 230 | 270 |
| Application field | Used in engineering machinery,specialized vehicles for oilfields,mining equipment,and other specialized mobile machinery requiring high torque. | |||||
High pressure capability with stable performance
Low noise and low vibration operation
High volumetric efficiency
Long service life and reliable operation
Suitable for continuous and heavy-duty applications
Applications
Mining & metallurgical heavy-duty machinery
Construction & road machinery
Agricultural mobile equipment
Hydraulic rotary drives & winches
Partial heavy die-casting and press mobile actuators
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 7-15 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
