✅ Product Overview

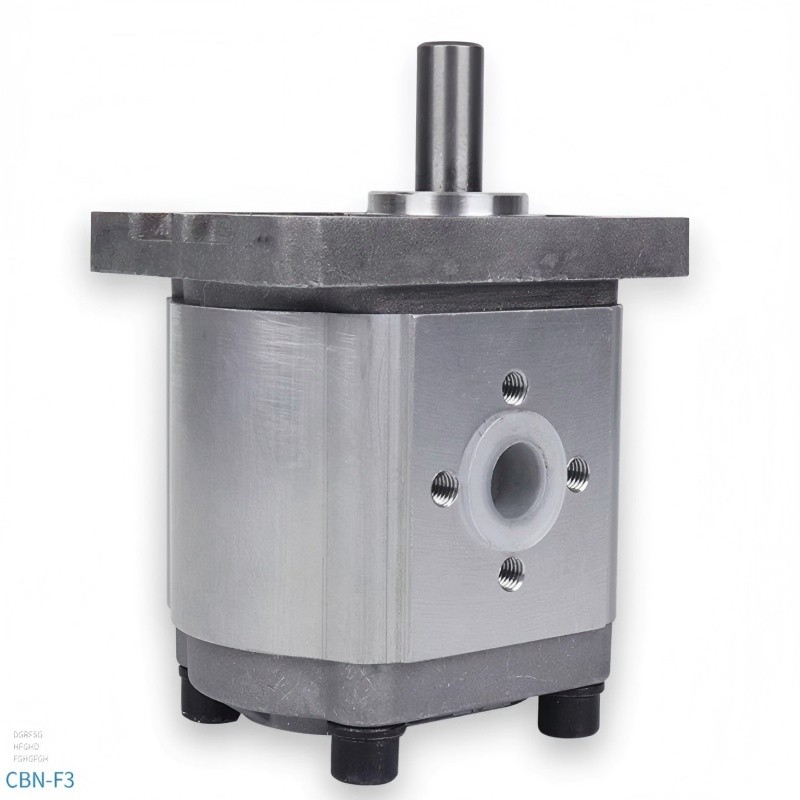

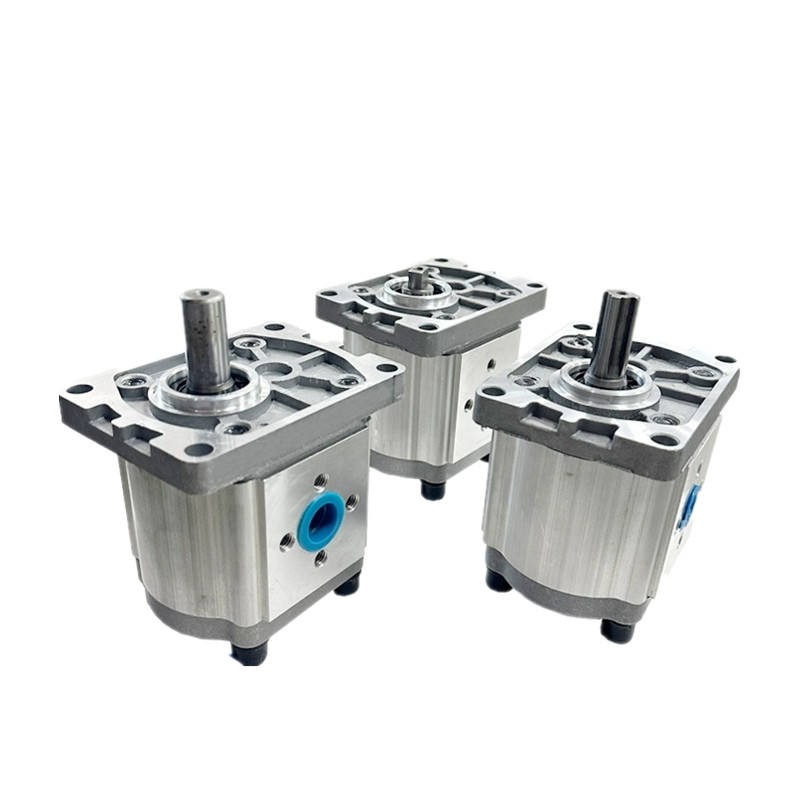

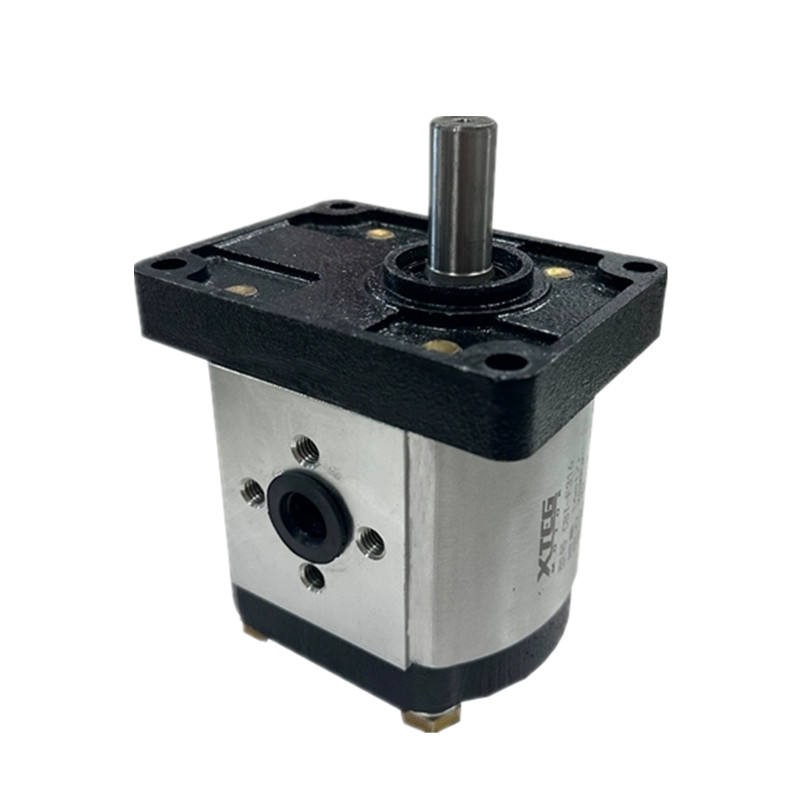

The CBN-300 Series Hydraulic Gear Pump is a power component in hydraulic systems, designed with high-precision gears, a high-strength aluminum alloy housing, and floating bushings.
It features a simple structure, light weight, high efficiency, low noise, and reliable operation.

The CBN-300 series is widely used in automotive, construction machinery, lifting and transportation equipment, mining machinery, light industrial machinery, agricultural machinery, and industrial automation hydraulic systems.

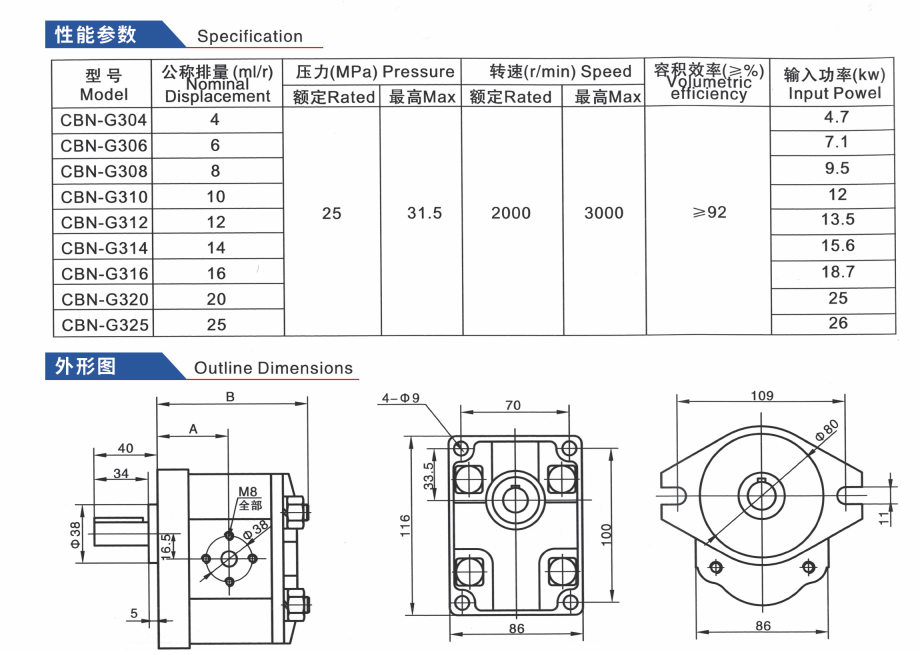

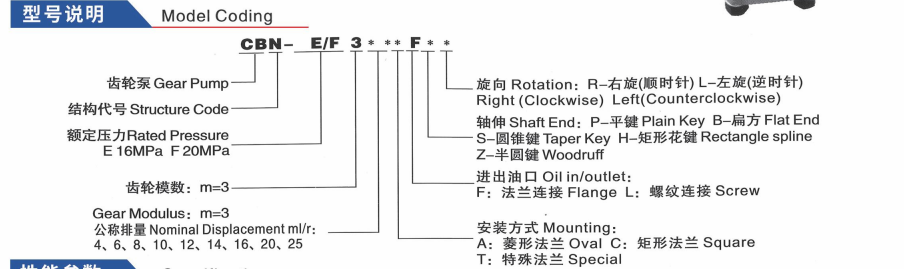

Model

(ml/r)
Nominal
Displacement
(MPa)Pressure(r/min)Speed(≥%)
Volumetric
efficiency
(kw)
Input Powel
RatedMaxRatedMax
CBN-E(F)304E16
F20
E20
F25
2000 3000 ≥923.0
CBN-E(F)3064.6
CBN-E(F)3086.1
CBN-E(F)31010 7.7
CBN-E(F)31212 9.0
CBN-E(F)31414 10.3
CBN-E(F)31616 12.8
CBN-E(F)32020 16.1
CBN-E(F)32525 17.4
