T6GC,T7GB,T6GCC,T67GCB,T7GBB,Pin Vane Pump | High Pressure Low Noise Hydraulic Vane Pump

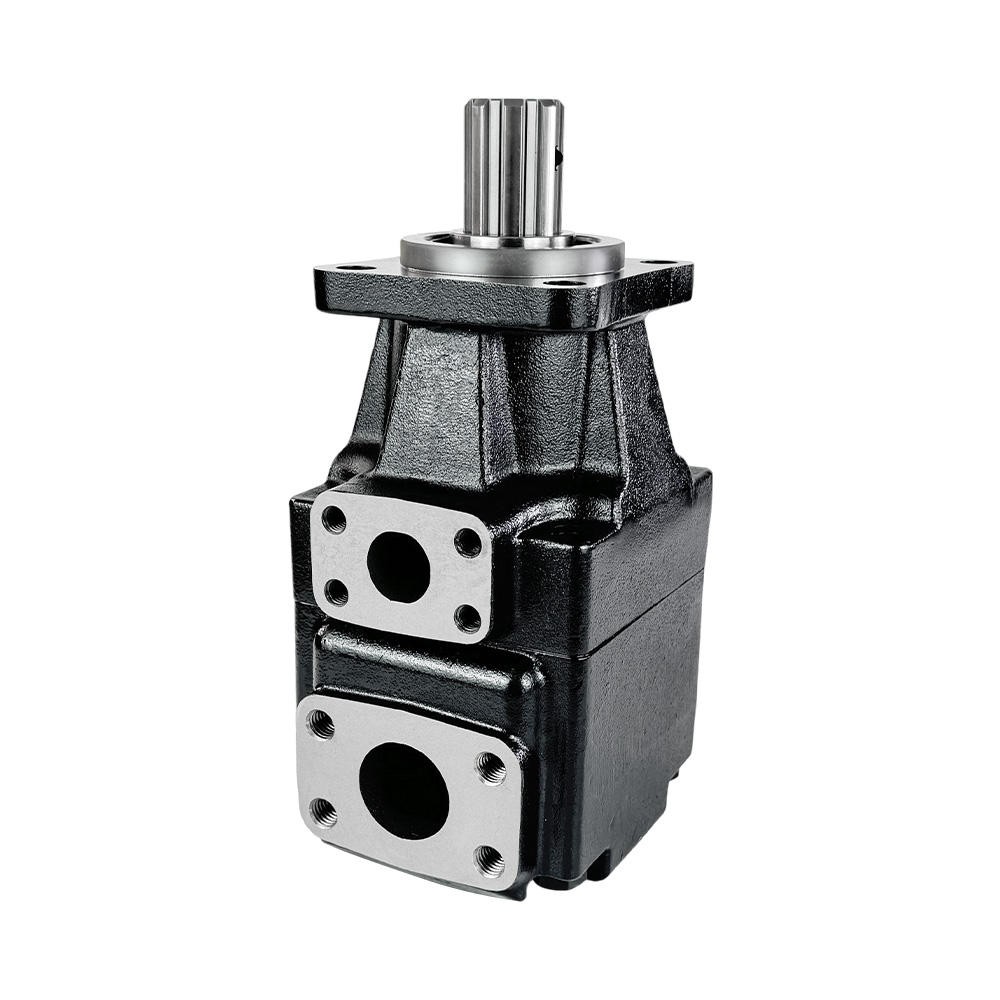

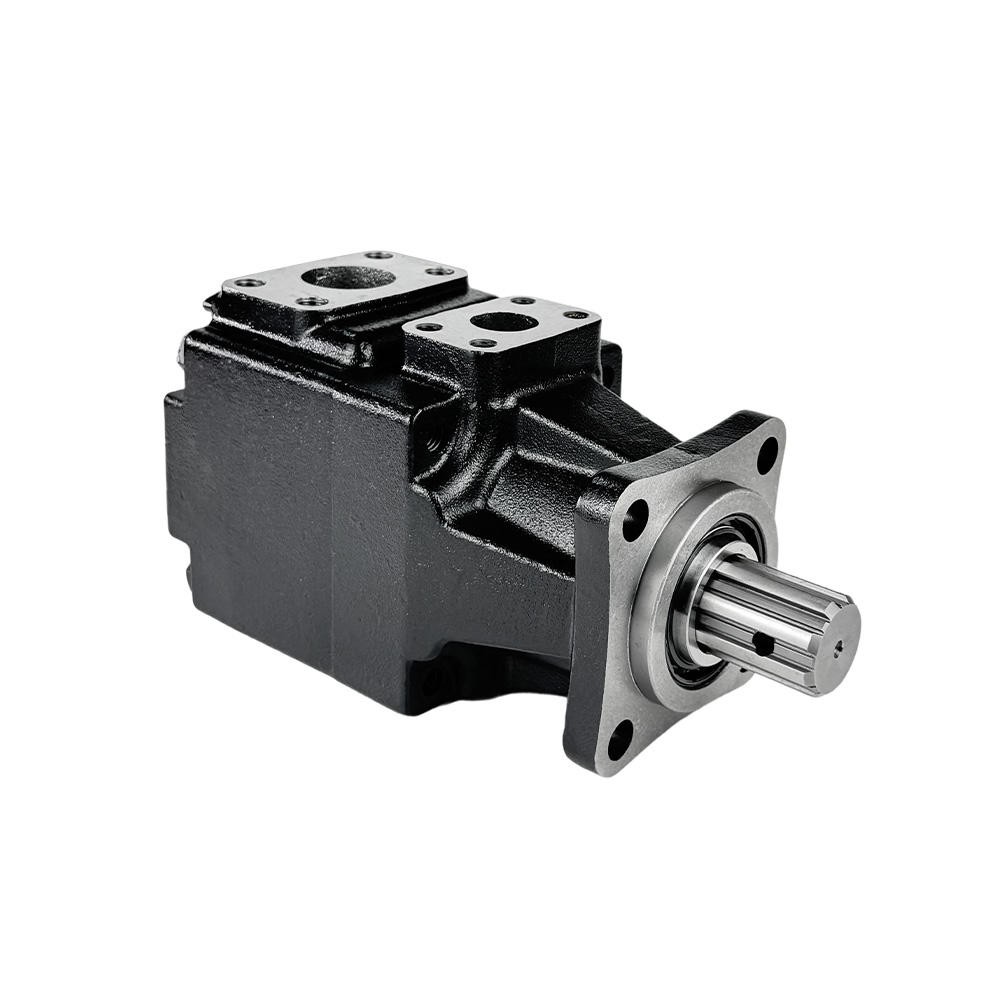

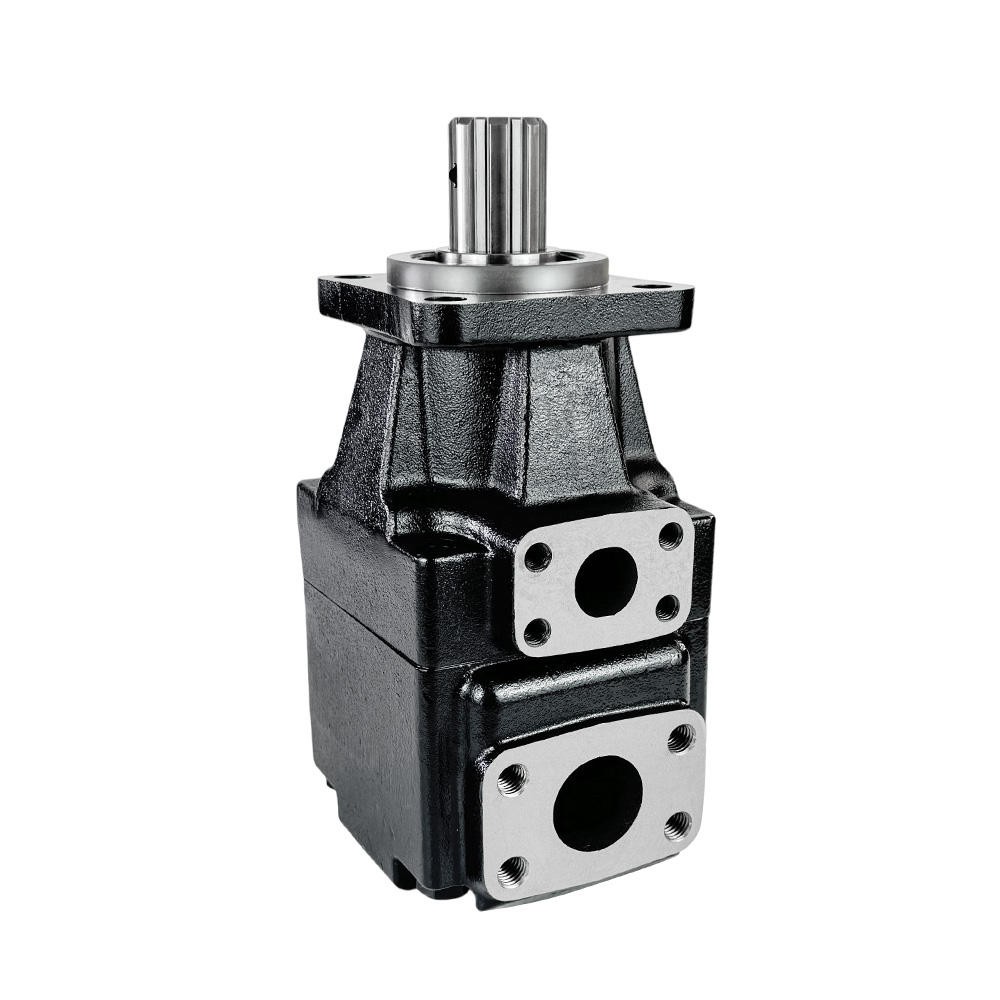

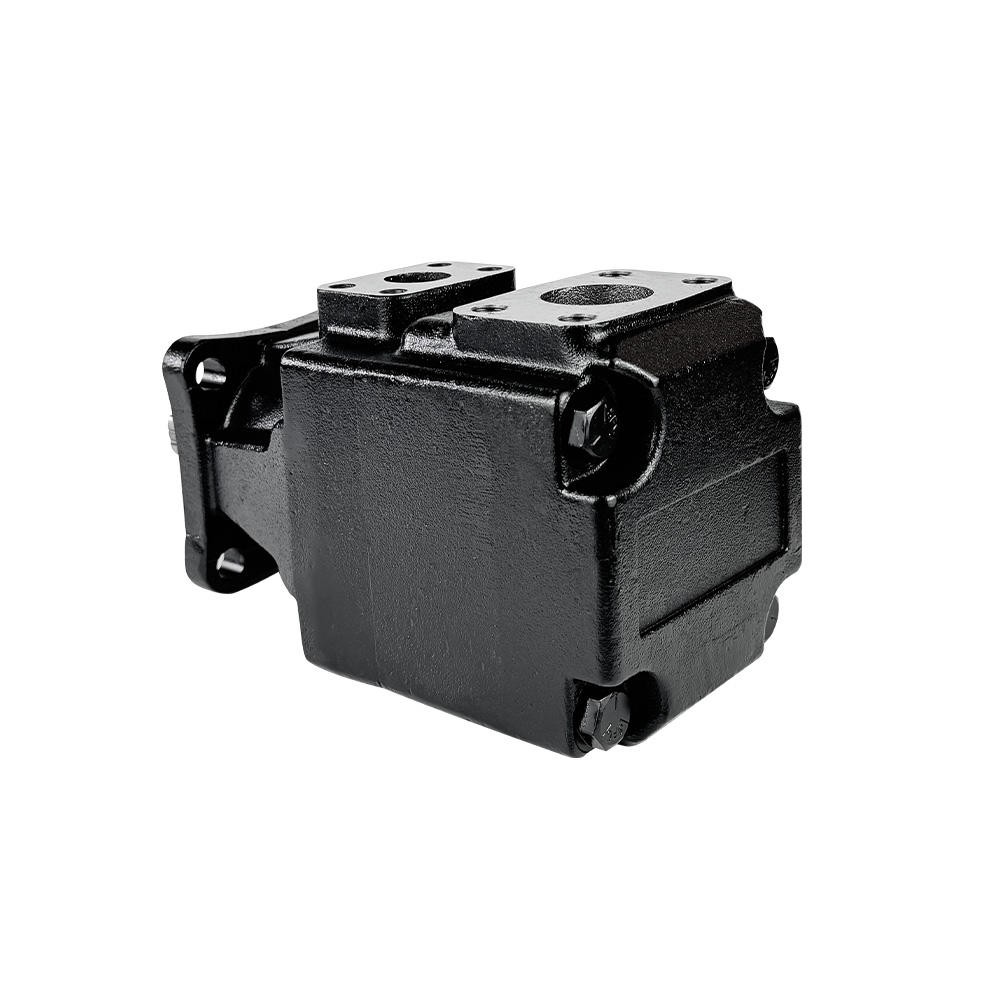

The Pin Vane Pump is a high-performance hydraulic vane pump designed for high pressure, low noise, and long service life applications.
By using a pin-supported vane structure, the pump reduces vane friction and wear, resulting in improved efficiency, stable flow, and extended operating life.
Pin vane pumps are widely used in industrial hydraulic systems where high pressure and smooth operation are required.
T6GC,T7GB,T6GCC,T67GCB,T7GBB,Series-Pin Vane Pump
| Model Number Designation | |||||||||||||
| T6GC | -B10 | -6 | R | 00 | -A | 1 | 01 | ||||||
| Series | Flow code | Shaft type | Rotation | Outlet Positions | Design number | Seal class | Port dimensions | ||||||
| T6GC | B03,B05,B06, B08,B10,B12, B14,B17,B20, B22,B25,B28, B31 | 6=(splined) (DIN 5462 ) | Viewed form shaft end of pump R-right hand for clockwise L-left hand for counter- clockwise | Viewed from shaft end of pump 00-Opposite port 01-Inline with inlet 02-90° 90℃CW from inlet 03-90° 90℃W from inlet | A | 1-S1,NBR Nitrile rubber 5-S5, Fluororubber | 00:Flange 1"BSPP 01:SAE Flange SAE 4 bolts(UNC) See installation dimensions | ||||||
| T7GB | B02,B03,B04, B05,B06,B07, B08,B10,B12, B15,B20 | 6=(splined) (DIN 5462 ) | |||||||||||
