High pressure and high performance dowel pin type vane pumps are widely used for plastic machinery, casting machinery, metal machinery, pressing machinery, refining machinery, construction machinery, marine-Machinery.

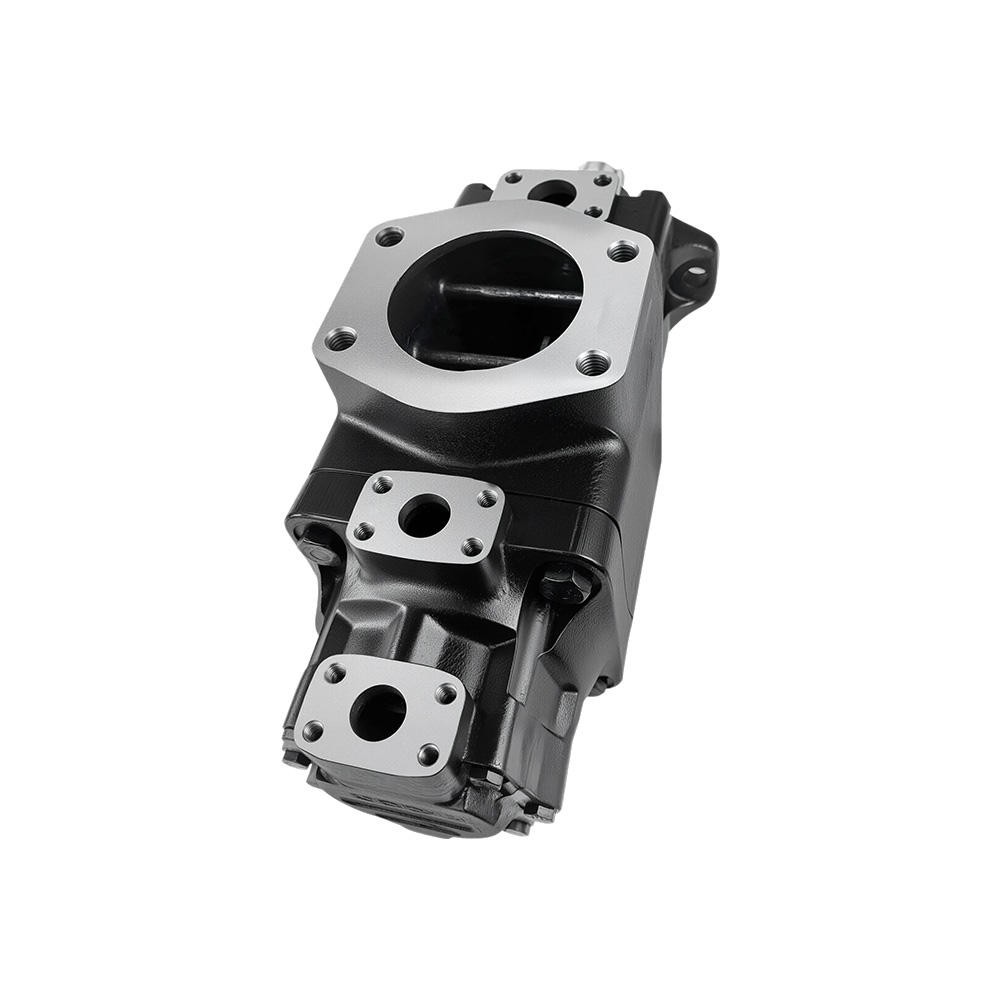

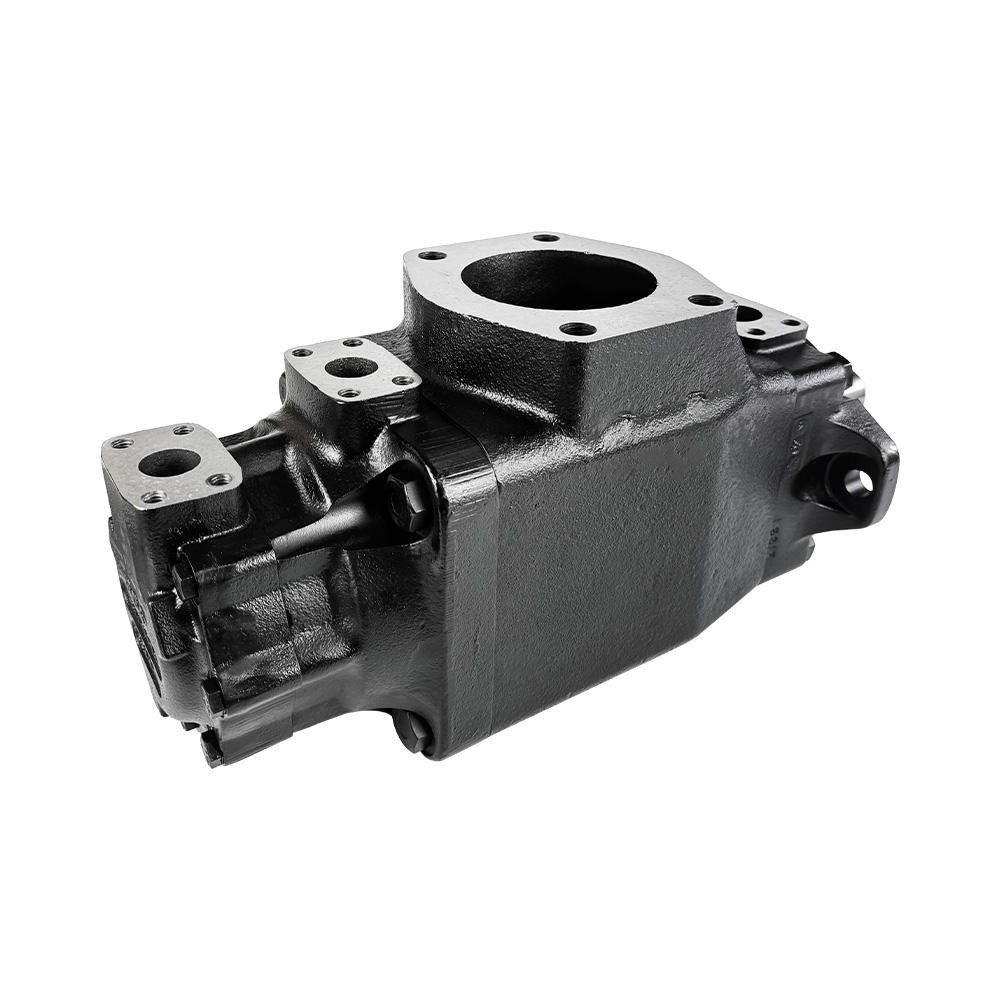

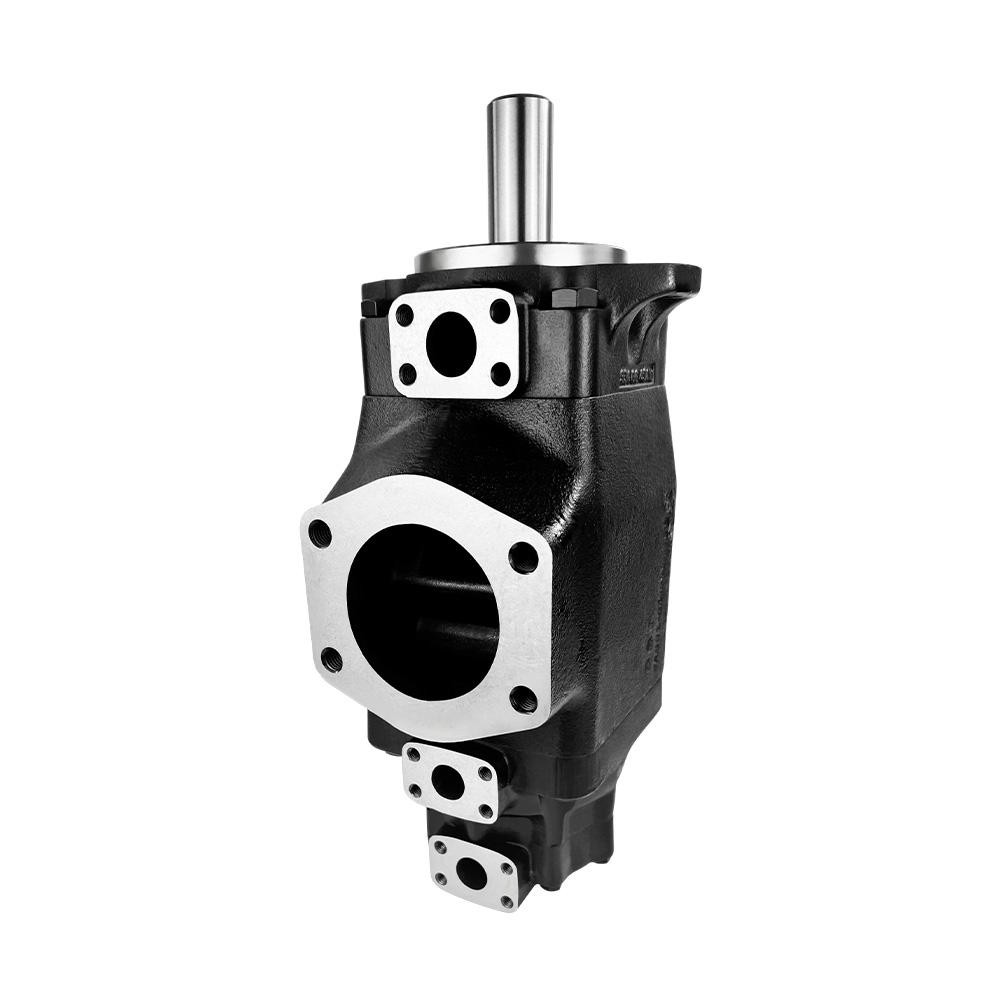

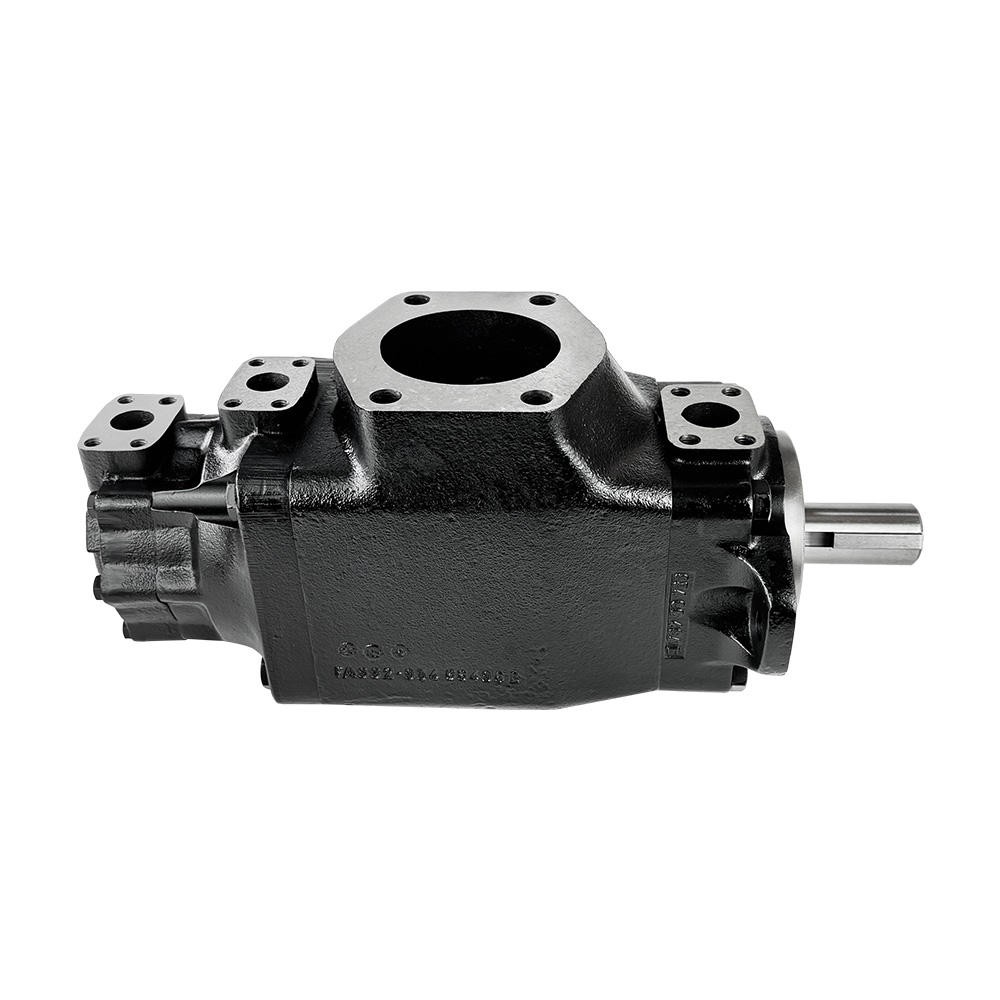

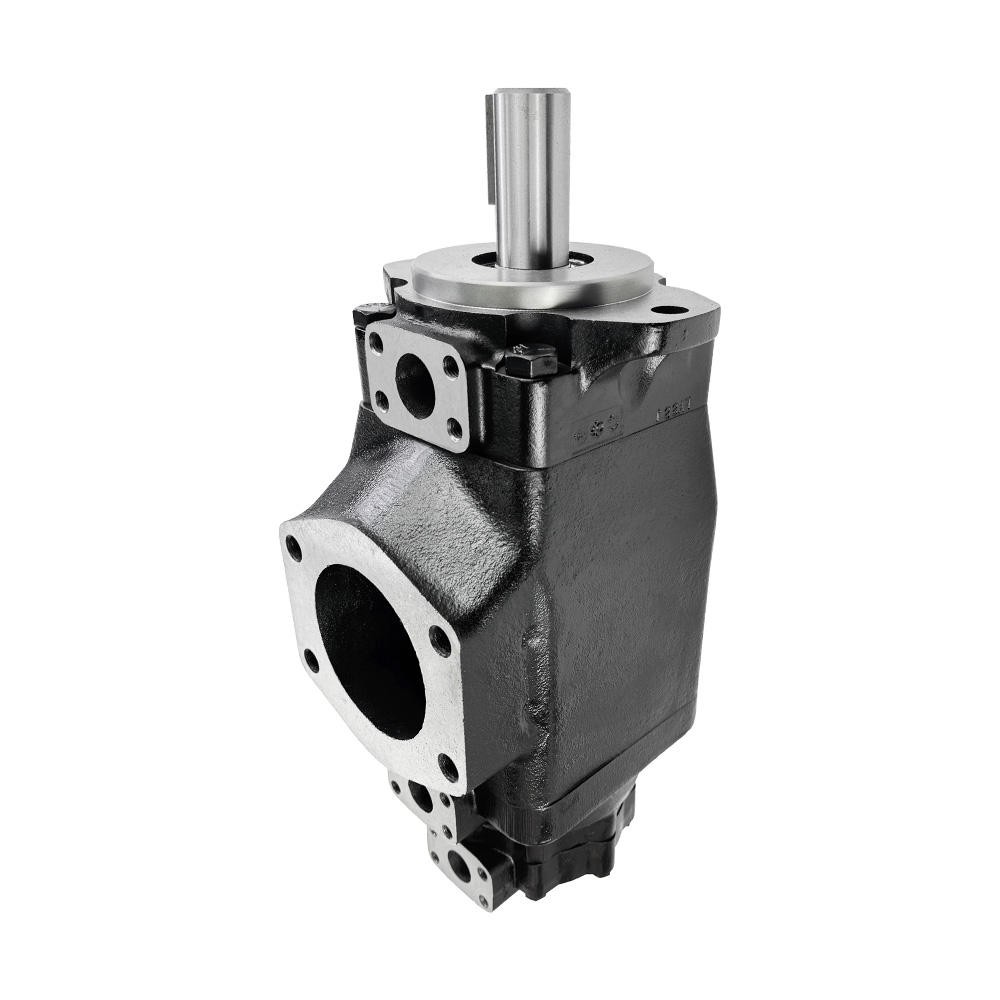

Denison T6,T67,T7 Series-Triple Vane pump:

T6DCC	(M)	-42	-17	-10	-1	R	02	-A	1	01
Series	Type Code	Flow-shaft end pump	Flow-mid pump	Flow-couv er end pump	Shaft type	Rotation	Port positions	Design number	Sealing class	Port dimensions
T67DBB (S)	NO: industrial type M:truck type S:truck type use SAE SAE C J744 installa- tion flange	014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	B02,B03,B04,B05, B06,B07,B08,B09, B10,B11,B12,B14, B15,B17,B20	B02,B03,B04,B05, B06,B07,B08,B09, B10,B11,B12,B14, B15,B17,B20	1,2,3,4	Viewed from shaft end of pump R- right hand for clockwise L- left hand for counter- clockwise	Porting combi- nation (see page 9)	A	1-S1, NBR Nitrile rubber 5-S5, Fluo- rorubber	NO
T67DCB (S)		014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	003/B03,005/B05, 006/B06,008/B08, 010/B10,012/B12, 014/B14,017/B17, 020/B20,022/B22, 025/B25,028/B28, 031/B31	B02,B03,B04,B05, B06,B07,B08,B09, B10,B11,B12,B14, B15,B17,B20	1,2,3,4					NO
T6DCC		014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	003/B03,005/B05, 006/B06,008/B08, 010/B10,012/B12, 014/B14,017/B17, 020/B20,022/B22, 025/B25,028/B28, 031/B31	003/B03,005/B05, 006/B06,008/B08, 010/B10,012/B12, 014/B14,017/B17, 020/B20,022/B22, 025/B25,028/B28, 031/B31	1,2,3,4					00,01, See installation dimensions
T67DDBS		014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	B02,B03,B04,B05, B06,B07,B08,B09, B10,B11,B12,B14, B15,B17,B20	1,2,3,4, 5					NO
T6DDC		014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	003/B03,005/B05, 006/B06,008/B08, 010/B10,012/B12, 014/B14,017/B17, 020/B20,022/B22, 025/B25,028/B28, 031/B31	1,2,3,4, 5					00,01, See installation dimensions
T6EDB (S)		042,045,050,052, 057,062,066,072, 085	014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	B02,B03,B04,B05, B06,B07,B08,B09, B10,B11,B12,B14, B15,B17,B20	1					NO
T6EDC		042,045,050,052, 057,062,066,072, 085	014/B14,017/B17, 020/B20,024/B24, 028/B28,031/B31, 035/B35,038/B38, 042/B42,045/B45, 050/B50,061	003/B03,005/B05, 006/B06,008/B08, 010/B10,012/B12, 014/B14,017/B17, 020/B20,022/B22, 025/B25,028/B28, 031/B31	1					00,01, See installation dimensions

1,This series of vane pump is a high pressure gauge, low noise, high efficiency quantitative vane pump.
2,Its characteristics adapt to the large viscosity range of hydraulic media, can be started at low temperature and high temperatureunder operation, can provide high pressure,low noise, and high volumetric efficiency.
