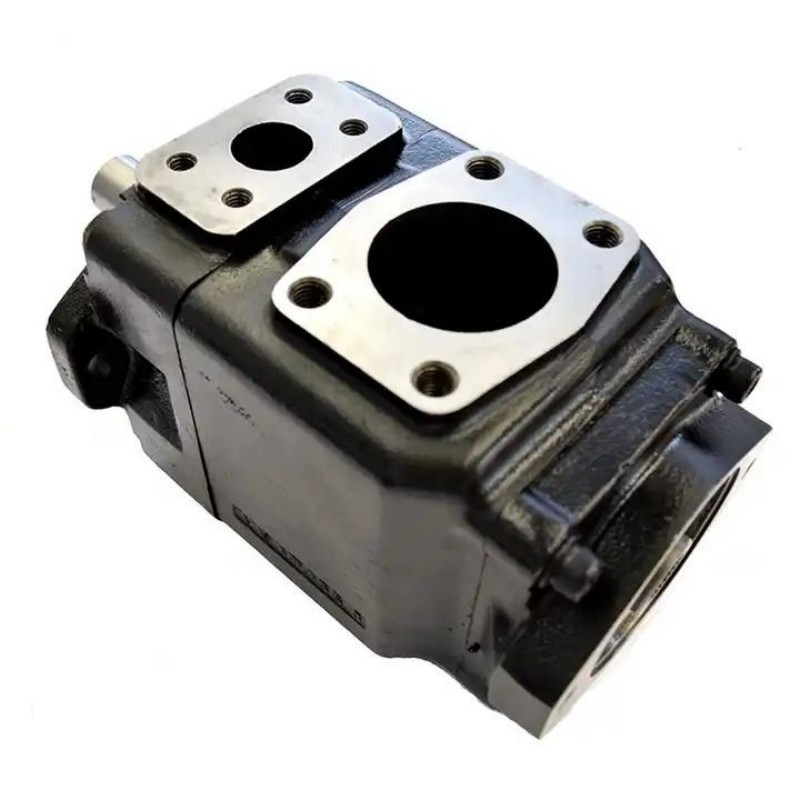

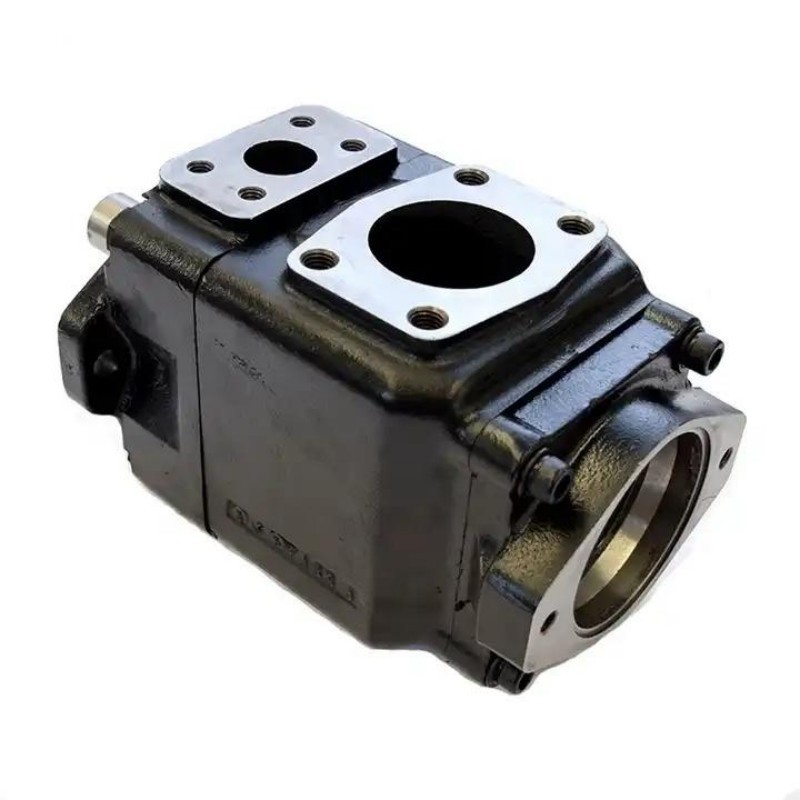

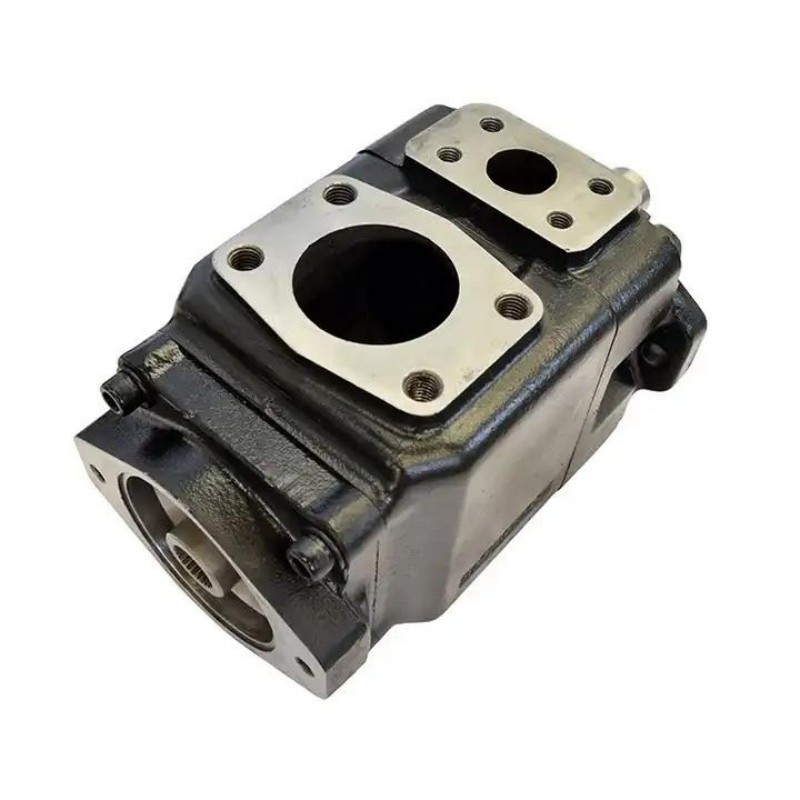

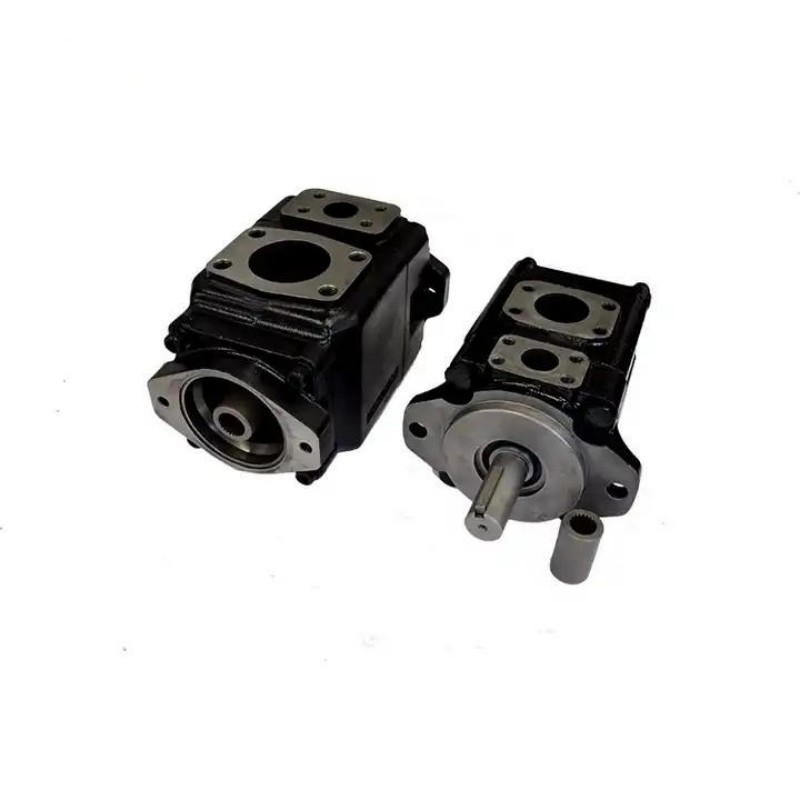

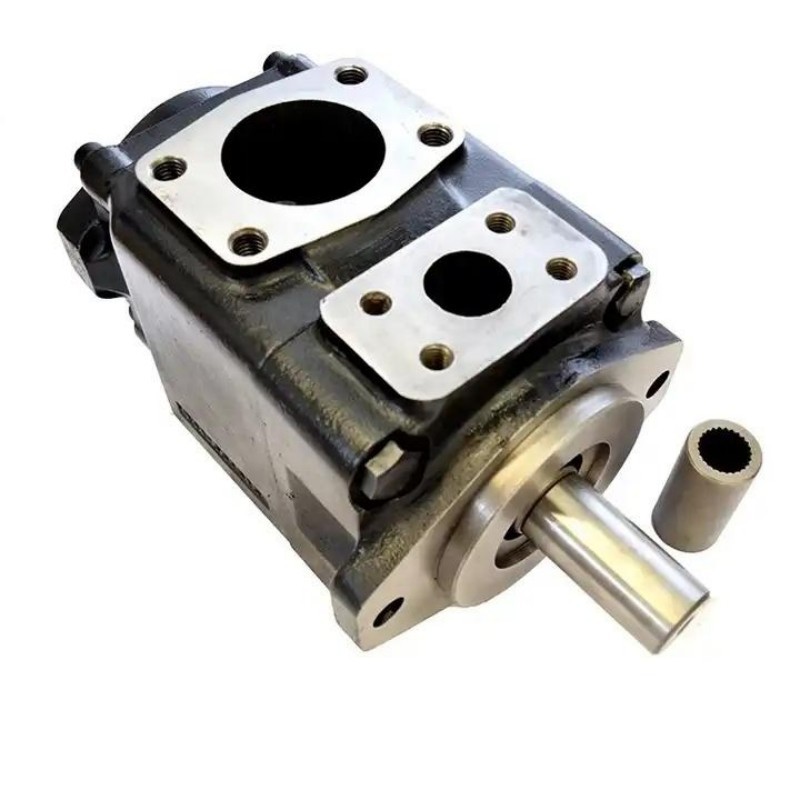

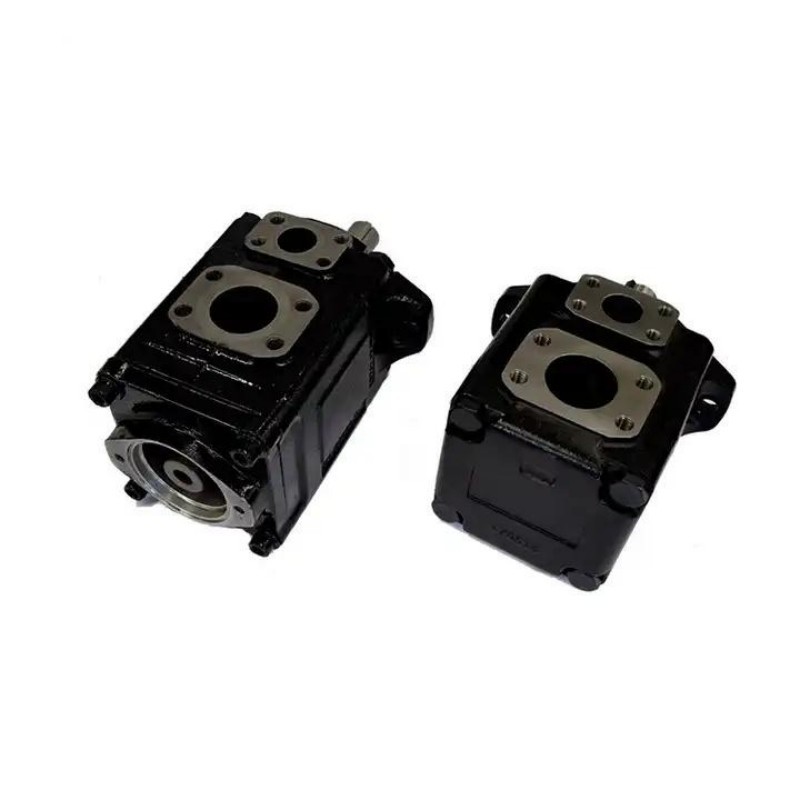

T6CR T6DR T6ER Thru-Drive Pin Vane Pump | Rear Driven High Pressure Fixed Displacement Hydraulic Pump
T6CR, T6DR, T6ER are classic single thru-drive pin vane pumps equipped with rear tail drive structure, which can directly connect secondary or tertiary hydraulic pumps to build multi-circuit oil supply systems flexibly. Adopting balanced pin vane design, the maximum rated pressure reaches 280 bar with volumetric efficiency up to 94%. It features low noise operation, strong anti-pollution performance and long service life. The independent cartridge design allows easy disassembly and maintenance. Fully interchangeable with Denison T6R series on mounting dimensions, widely applied in industrial machinery, construction equipment, injection molding machines, metallurgy and die casting hydraulic systems.

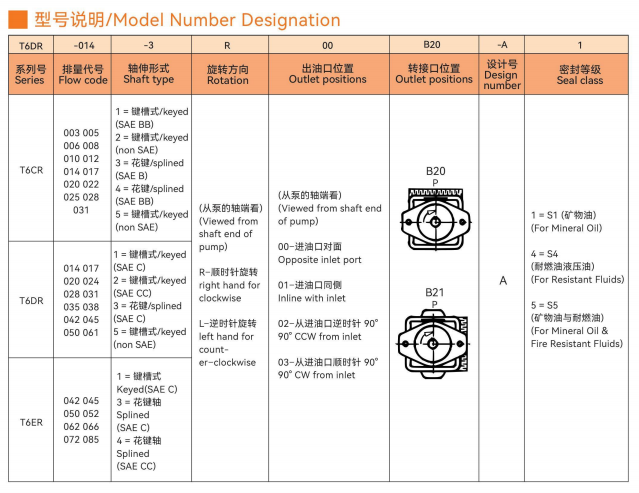

| T6DR | -14 | -3 | R | 00 | B20 | -A | 1 |
Series | Flow code | Shaft type | Rotation | Outlet positions | Outlet positions | Design number | Seal class |
| T6CR | 003005 006008 010012 014017 020022 025028 031 | 1=/keyed (SAE BB) 2=/keyed (non SAE) 3=/splined (SAE B) 4=/splined (SAE BB) 5=/keyed (non SAE) | (Viewed from shaft end of pump) R- right hand for clockwise L- left hand for count- er-clockwise | (Viewed from shaft end of pump) 00- Opposite inlet port 01- Inline with inlet 02-90° 90°CCW from inlet 03-90° 90°CW from inlet | B20 | A | 1=S1 (For Mineral Oil) 4=S4 (For Resistant Fluids) 5=S5 (For Mineral Oil & Fire Resistant Fluids) |
| T6DR | 014017 020024 028031 035038 042045 050061 | 1=/keyed (SAE C) 2=/keyed (SAE CC) 3=/splined (SAE C) 5=/keyed (non SAE) | |||||
| T6ER | 042045 050052 062066 072085 | 1= Keyed(SAE C) 3= Splined (SAE C) 4 = Splined (SAE CC) |
Pin-supported vane design reduces friction and wear
High pressure capability with stable performance
Low noise and low vibration operation
High volumetric efficiency
Long service life and reliable operation
Suitable for continuous and heavy-duty applications
Applications
Industrial hydraulic power units
Injection molding machines
Press machines
Machine tools
Die casting equipment
Metallurgical and heavy-duty machinery
