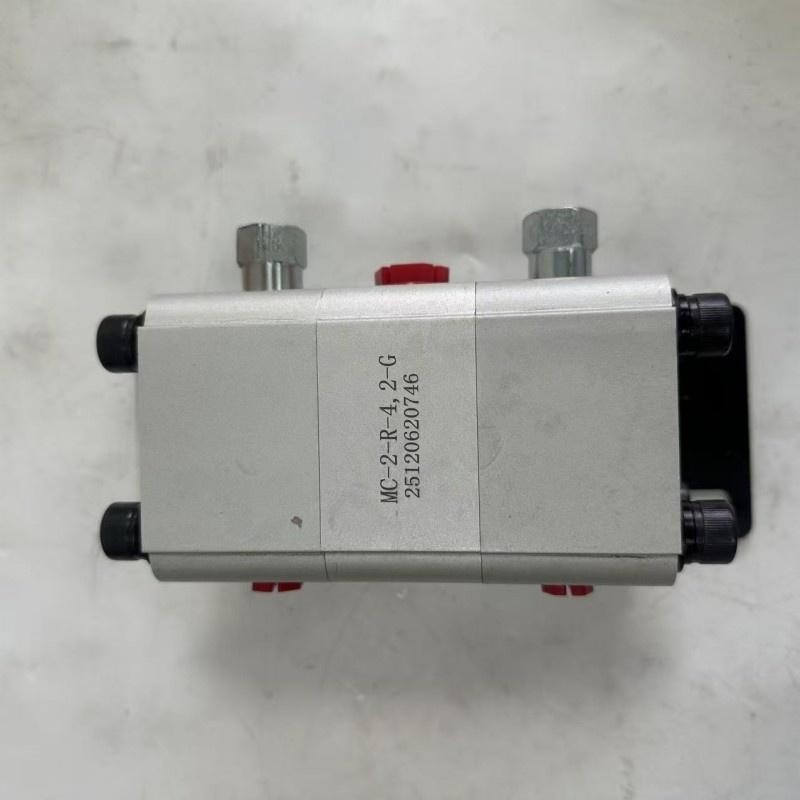

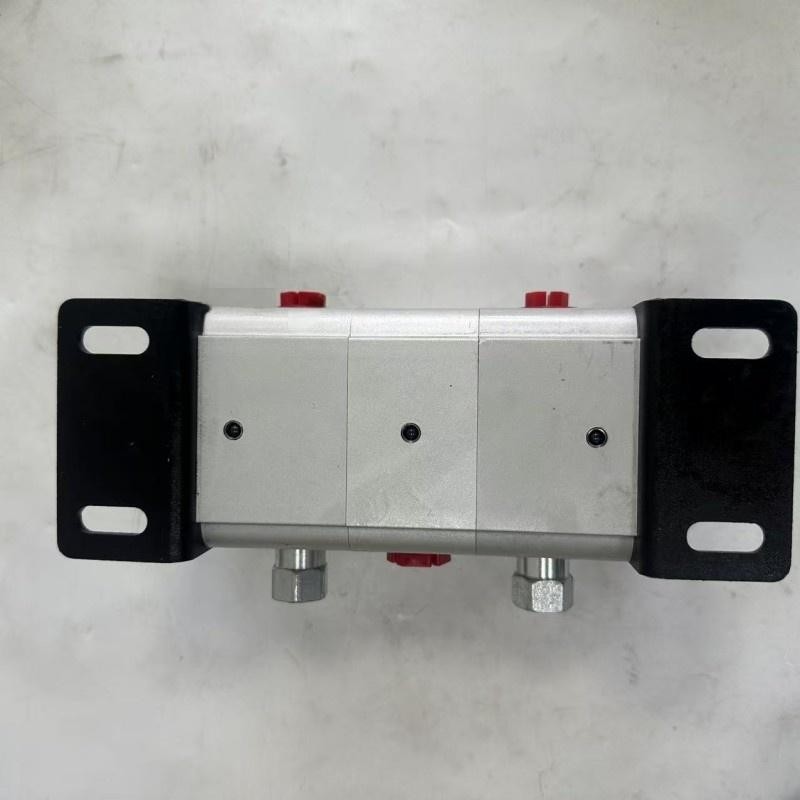

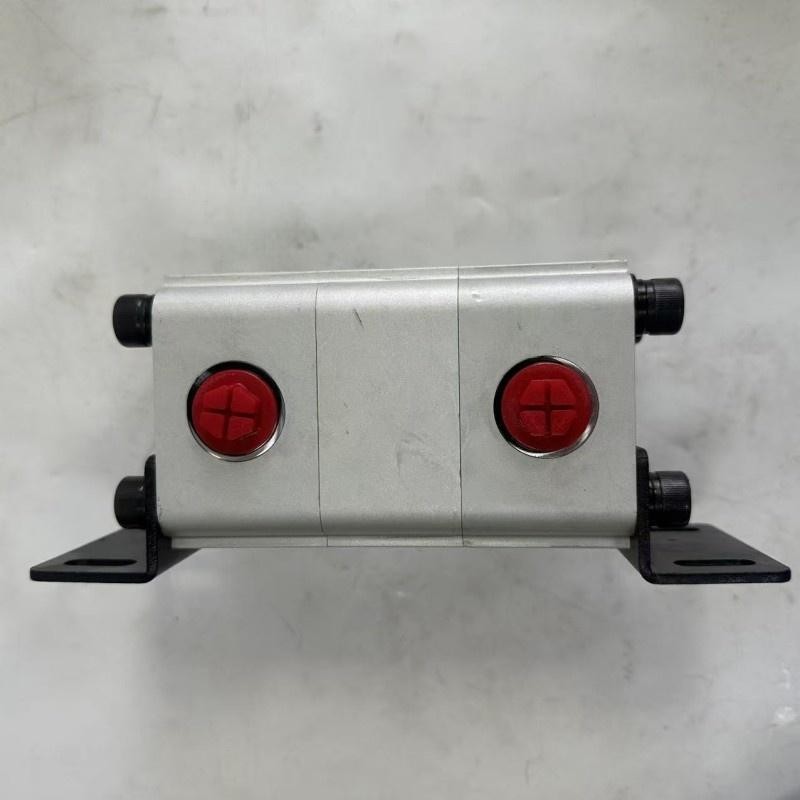

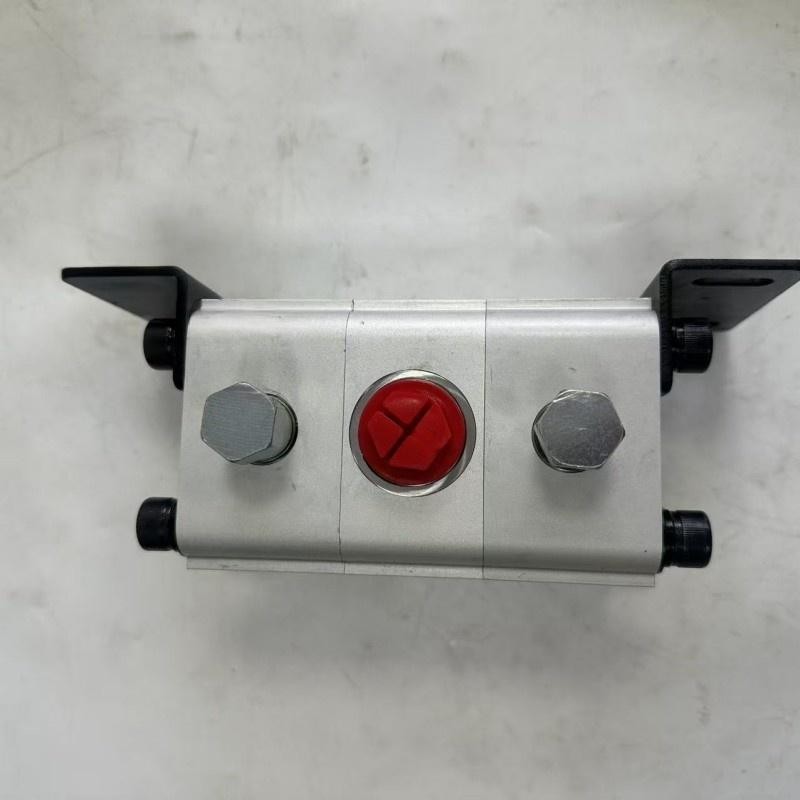

FMC Series High Pressure Multi-section Gear Flow Divider (High Precision Synchronous Motor)

These 12 custom attributes fully cover core parameters of FMC flow divider including series code, reinforced housing structure, high pressure index, full-range displacement, multi-section specifications, integrated compensation unit, standard ports, applicable hydraulic oil and multi-purpose functions. They support webpage product filtering and parameter display to help customers quickly select matching models for multi-channel high pressure heavy synchronous equipment.

INQUIRY

Product Details

Product Tags

FMC series adopts thickened high-strength through-shaft gear structure, supporting up to 12 sections multi-channel synchronous output. Single section displacement ranges from 3.7 to 150mL/r, rated continuous pressure 28MPa and maximum peak pressure 30MPa. Equipped with integrated overflow and one-way compensation module for ultra-low synchronous deviation. It supports flow dividing, flow collecting and pressure boosting with strong anti-pollution capacity, widely applied in multi-channel high flow synchronous hydraulic systems of mining heavy machinery, large hydraulic lifting equipment, ship and metallurgical machinery.

Model	single outlet Displacement (ml/r)	750rpm Minimum inlet flow(1/min)	1500rpm standard inlet flow(I/min)	3000rpm Maximun inlet flow(I/min)	Miximur outlet (Mpa)
FMC-2R×30	30	45	90	120	20
FMC-2R×40	40	60	120	160
FMC-2R×50	50	75	150	200
FMC-2R×70	70	105	210	280
FMC-2R×90	90	135	270	360
FMC-4R×30	30	90	180	240
FMC-4R×40	40	120	240	320
FMC-4R×50	50	150	300	400
FMC-4R×70	70	210	420	560
FMC-4R×90	90	270	540	720

Core Advantages

Ultra Multi-section Combination: Support up to 12 sections to realize synchronous control of more actuators at one time
Super High Pressure Resistance: Reinforced housing adapts continuous 28MPa operation with peak pressure up to 30MPa
Integrated Compensation Module: Built-in overflow and check valve unit automatically eliminates long-running synchronous error
Wide Displacement Coverage: Complete displacement range from 3.7 to 150mL/r to match low and ultra-high flow working conditions
Strong Environmental Adaptability: Wear-resistant gear pair and good anti-pollution performance stable in mining and metallurgy harsh scenes

Applications
