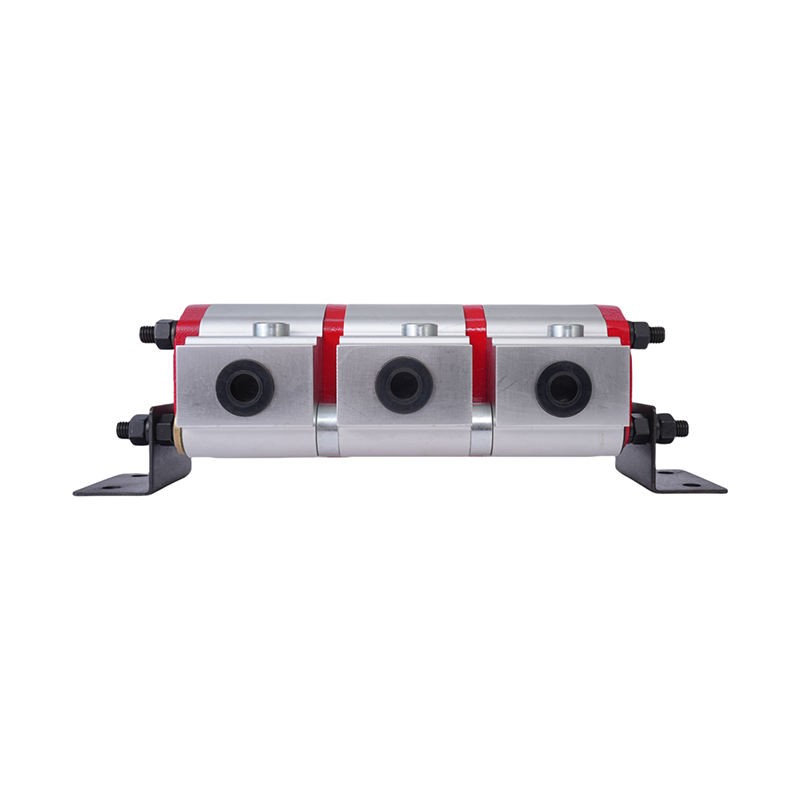

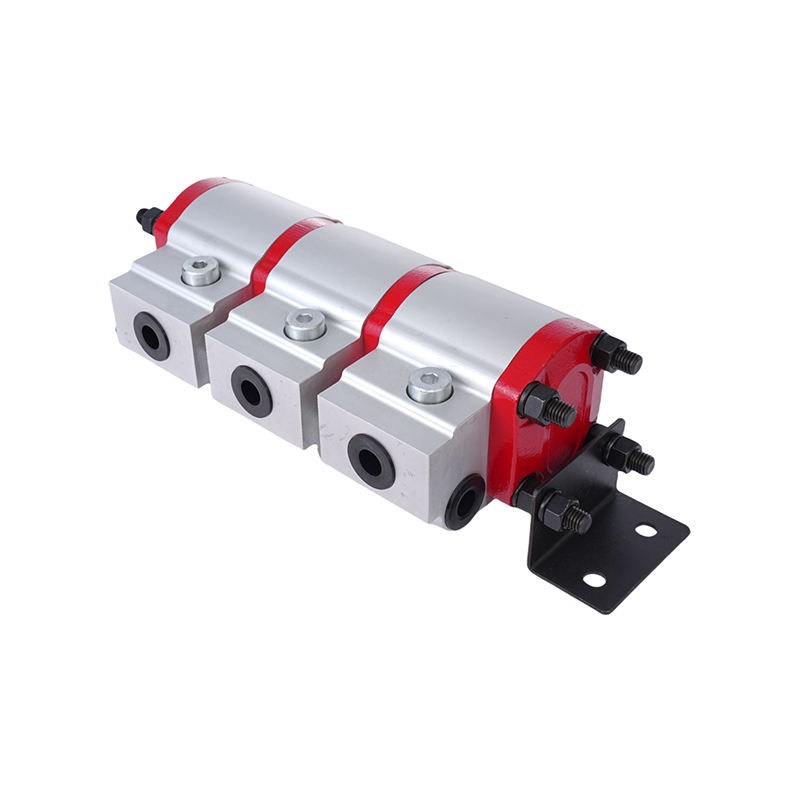

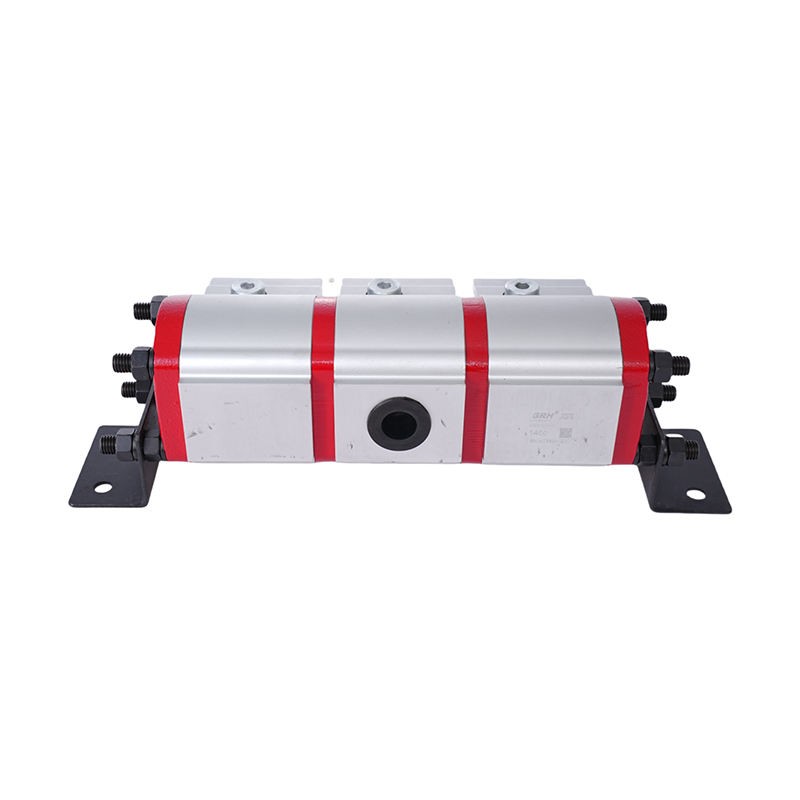

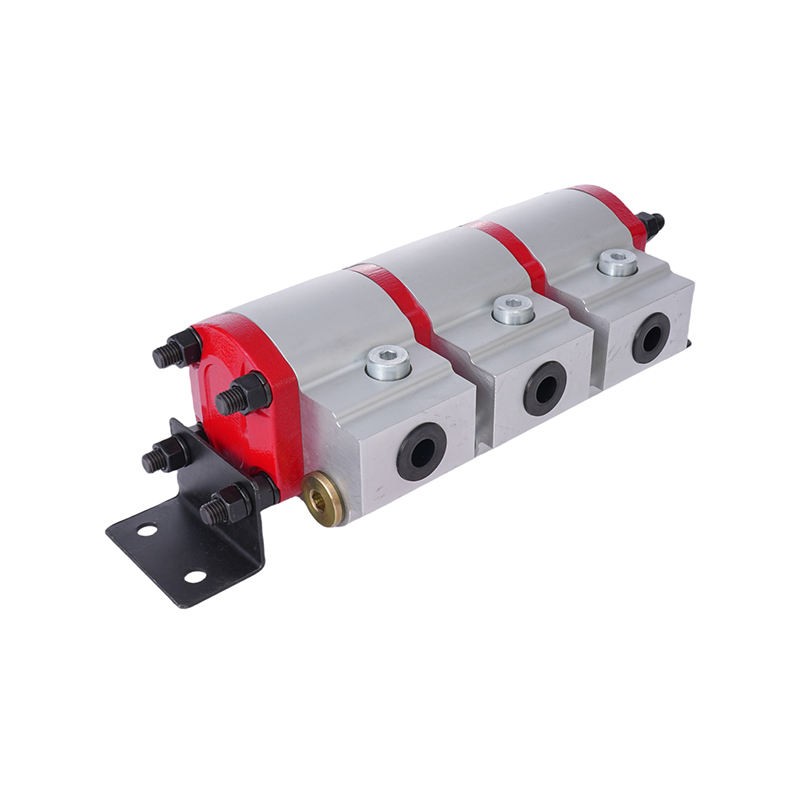

FMXH Series High Pressure Heavy-duty High Flow Gear Flow Divider (High Precision Synchronous Motor)
FMXH series adopts heavy-duty reinforced through-shaft gear structure with thickened integral housing, supporting up to 10 sections synchronous output. Single displacement ranges from 12 to 200mL/r. Rated continuous pressure reaches 30MPa and instantaneous peak pressure is 32MPa. Equipped with independent large-capacity external overflow compensation valve for powerful deviation correction. It realizes flow dividing, flow collecting and pressure boosting functions, featuring wear resistance and strong anti-pollution capacity, widely applied in high-load high flow hydraulic systems such as shield machines, heavy mining trucks, ship lifting equipment and large bridge synchronous lifting machinery.
Model | single outlet Displacement (ml/r) | 750rpm Minimum inlet flow(I/min) | 1500rpm standard inlet flow(I/min) | 3000rpm Maximun inlet flow(I/min) | Miximur outlet (Mpa) |
| FMXH-2R×0.5 | 0.5 | 0.75 | 1.5 | 3.0 | 25 |
| FMXH-2R×1.0 | 1.0 | 1.5 | 3.0 | 6.0 | |
| FMXH-2R×1.5 | 1.5 | 2.25 | 4.5 | 9.0 | |
| FMXH-2R×2.0 | 2.0 | 3.0 | 6.0 | 12 | 21 |
| FMXH-4R×0.5 | 0.5 | 1.5 | 3.0 | 6.0 | |
| FMXH-4R×1.0 | 1.0 | 3.0 | 6.0 | 12 | |
| FMXH-4R×1.5 | 1.5 | 4.5 | 9.0 | 18 | 18 |
| FMXH-4R×2.0 | 2.0 | 6.0 | 12 | 24 |
Core Advantages
- Heavy-duty Reinforced Structure: Thickened alloy housing and thickened gear shaft for stable operation under long-term ultra-heavy load
Super High Pressure Grade: Continuous working pressure 30MPa, peak pressure up to 32MPa for ultra-high pressure industrial scenarios
Large Flow Matching Scope: Single displacement from 12 to 200mL/r to satisfy large flow demand of large engineering equipment
Independent External Compensation Valve: Large capacity relief unit offers rapid stroke correction and full circuit overpressure protection
Multi-section Flexible Combination: Optional 2/4/6/10 sections, bidirectional function simplifies heavy machinery hydraulic pipeline layout
Applications
- Suitable for shield machinery, heavy mining vehicles, ship lifting mechanisms and large bridge synchronous lifting equipment to realize high flow synchronous lifting control of multi-cylinders under ultra-heavy load.
