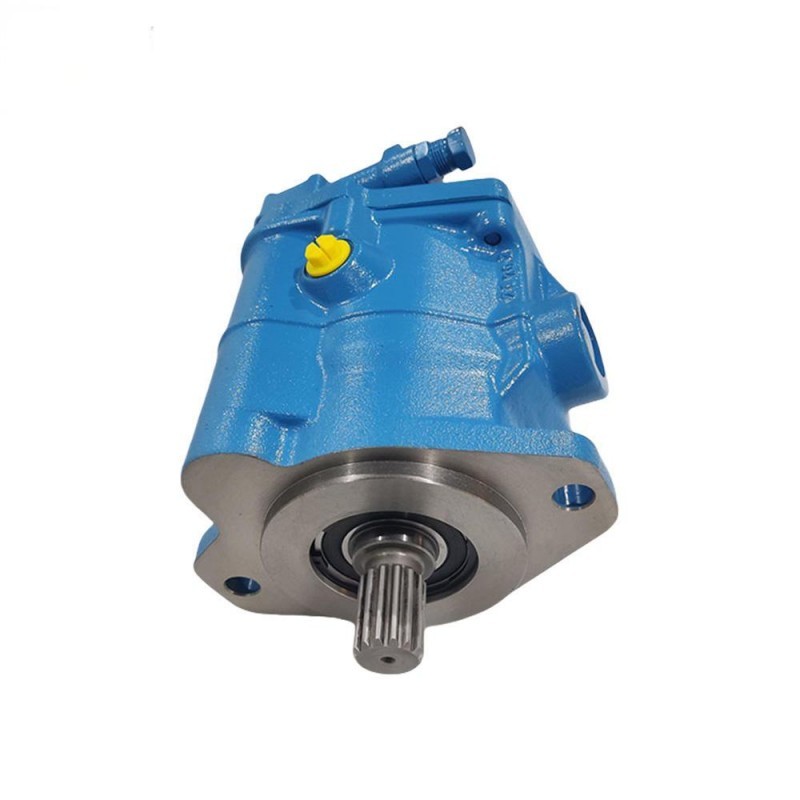

PFB/PVB Series Fixed and Variable Displacement Axial Piston Pump
PFB/PVB series swash plate axial piston pumps are available in fixed and variable structures with rich displacement specifications and stable high rated pressure. PFB delivers fixed flow output while PVB realizes stepless flow adjustment through swash plate angle. Suitable for various industrial open hydraulic circuits. Featuring high volumetric efficiency and low running noise, they are widely used in hydraulic systems for machine tools, injection molding machinery, metallurgical equipment, forging machinery and general hydraulic stations.
Key Advantages
- Small pressure output fluctuation for smoother hydraulic system operation
- Compact and small structure saves internal installation space of equipment
- Optional control modes adapt to different hydraulic system solutions
- Excellent interchangeability facilitates replacement of original pump parts
| Product Parameters | ||||||||
| Size NG | 5 | 6 | 10 | 15 | 20 | 29 | 45 | 90 |
| Displacement(cm³/rev) | 10.5 | 13.8 | 21.1 | 33.0 | 42.8 | 61.6 | 94.5 | 197.5 |
| Speed (rpm) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Flow (L/min) | 18.9 | 24.84 | 37.98 | 59.4 | 77.04 | 110.88 | 170.1 | 355.5 |
| Nominal pressure(bar) | 210 | 140 | 210 | 140 | 210 | 140 | 210 | 210 |
| Max.pressure (bar) | 280 | 200 | 280 | 200 | 280 | 200 | 280 | 280 |
| Weight(approx.)(kg) | 8 | 8 | 15 | 15 | 26 | 26 | 96 | 104 |
| Application field | Used in engineering machinery,oil fields,ships and other machinery fields | |||||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
