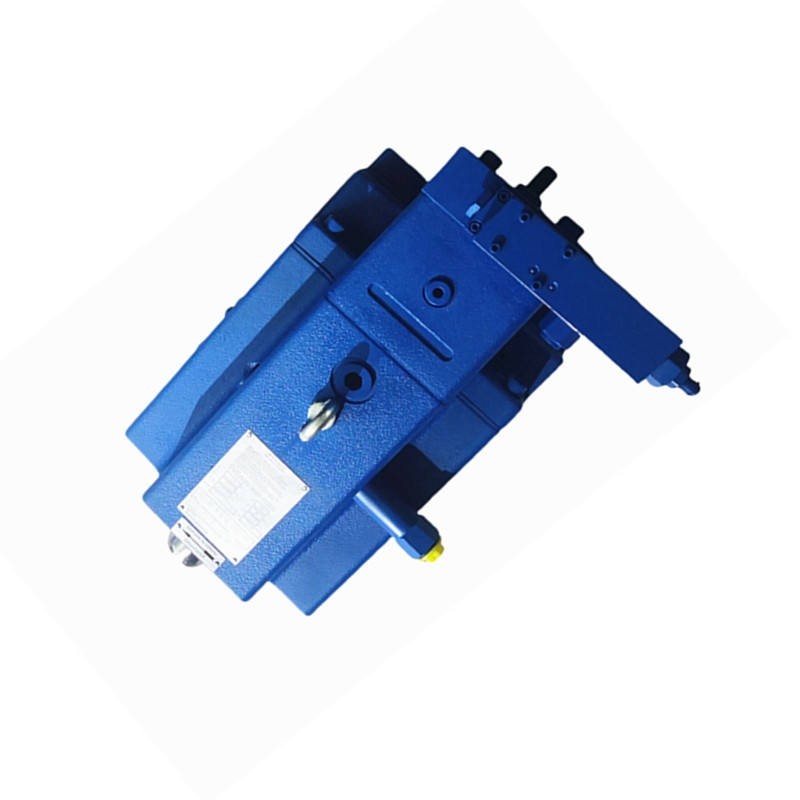

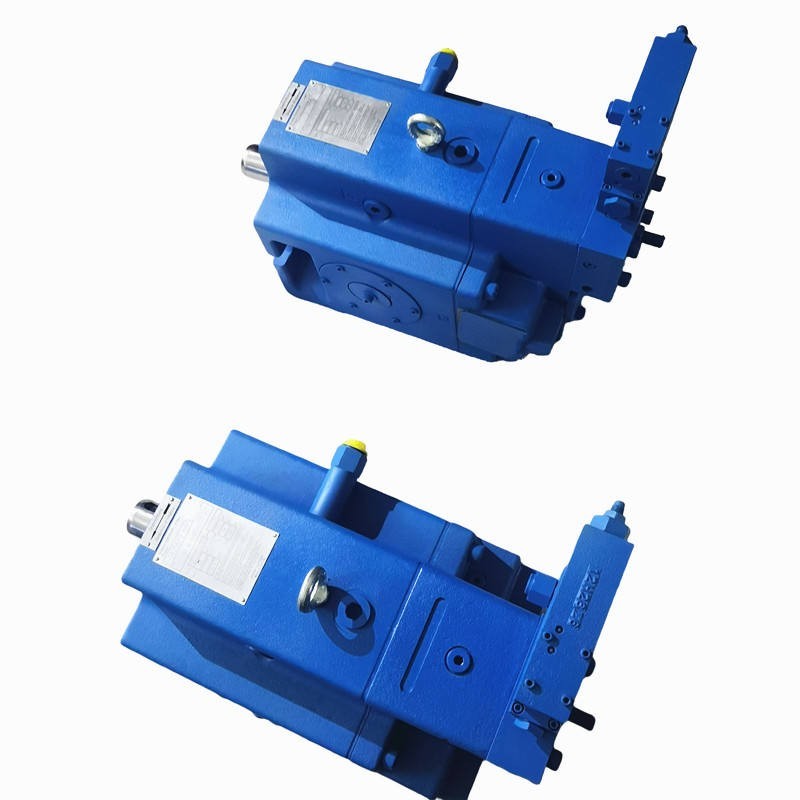

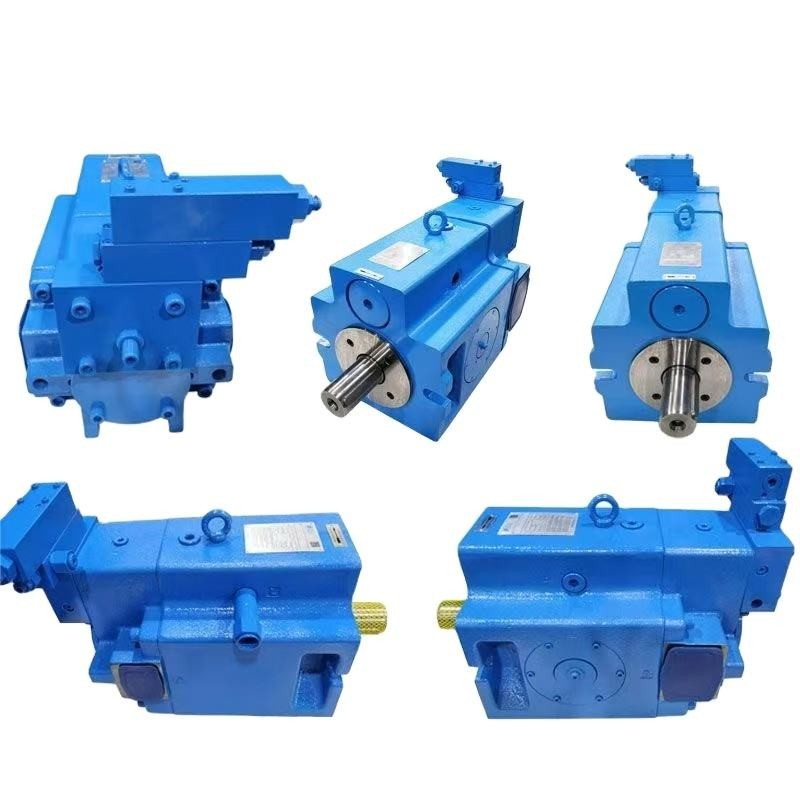

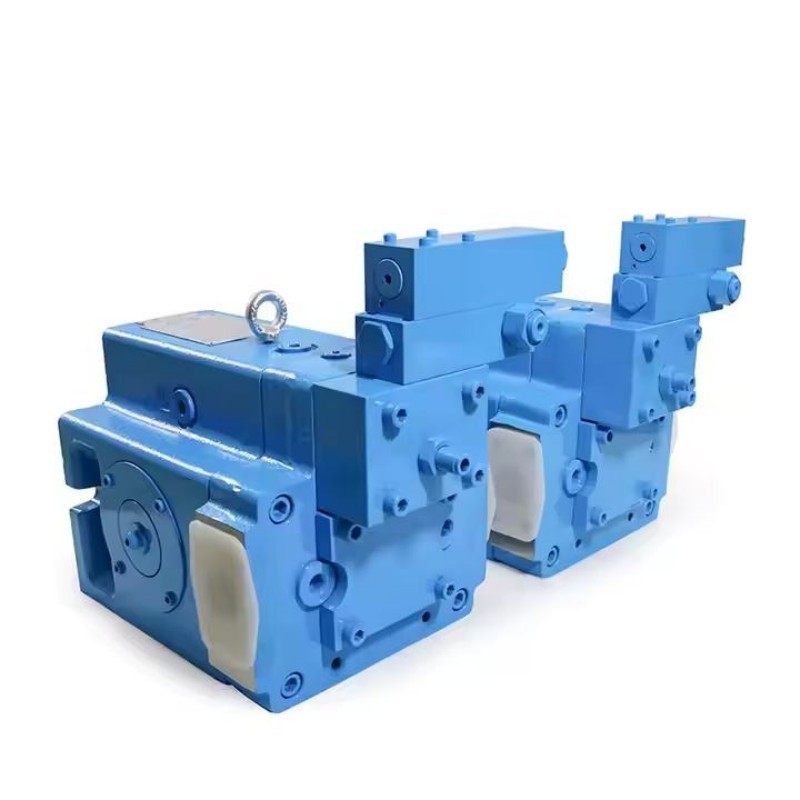

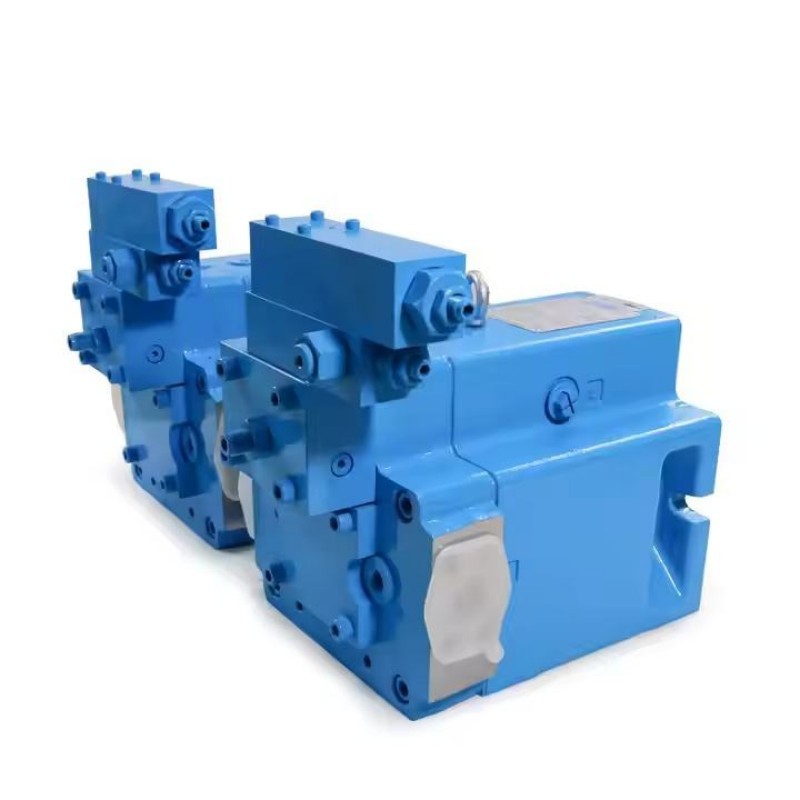

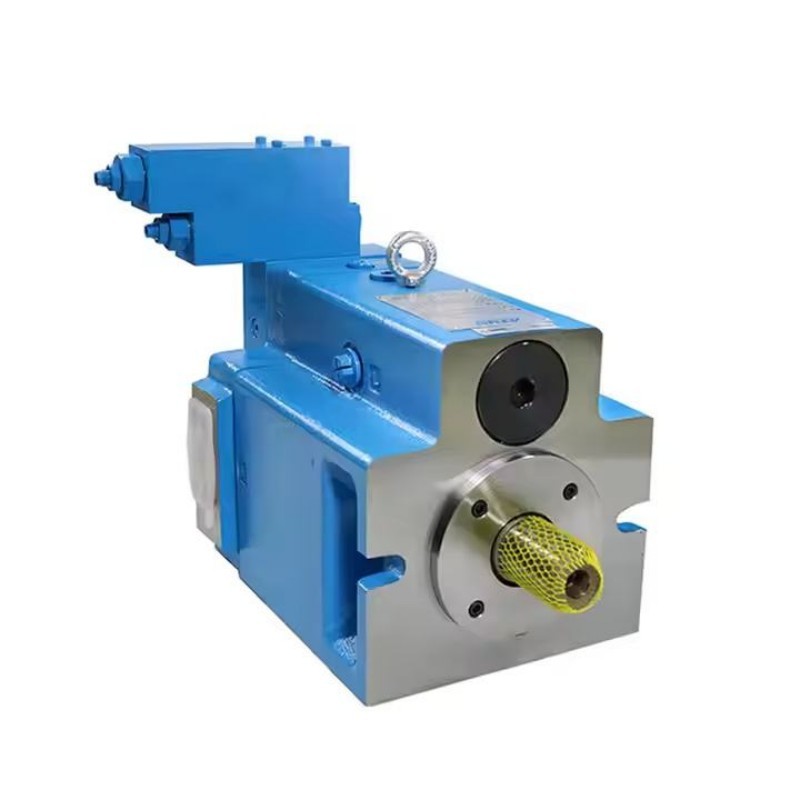

PVXS Series Axial Piston Variable Pump
PVXS Series Axial Piston Variable Pump is swash plate type ultra high pressure heavy duty piston pump for open circuit. Displacement ranges from 66 to 250 cubic centimeter per revolution with high continuous working pressure and short time peak shock pressure tolerance. It adopts pressure balanced rotating assembly with enlarged shaft and heavy duty bearing. It supports pressure compensation load sensing electro proportional and other control modes and provides thru drive interface. Modular structure supports flexible configuration of various control units. Resistant to pulse load, it fits harsh working conditions such as shield machine mining metallurgy die casting and offshore equipment for long term heavy load stable operation.
Key Advantages
- Ultra high pressure level copes with harsh heavy duty industrial operation scenarios
- Fast variable response enables sensitive flow adjustment under changing load
- High power density outputs strong power within limited installation space
- Complete accessory kits support convenient on site inspection replacement and maintenance
| Product Parameters | |||||
| Size NG | 66 | 90 | 130 | 180 | 250 |
| Displacement(cm³/rev) | 66 | 90 | 130 | 180 | 250 |
| Speed (rpm) | 1800 | ||||
| Flow (L/min) | 118 | 162 | 234 | 324 | 450 |
| Nominal pressure(bar) | 350 | ||||
| Max.pressure (bar) | 420 | ||||
| Weight(approx.)(kg) | 55 | 75 | 106 | 114 | 212 |
| Application field | Used in industrial fields,steel plants,power plants, injection molding machines,etc. | ||||
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 10-20 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
