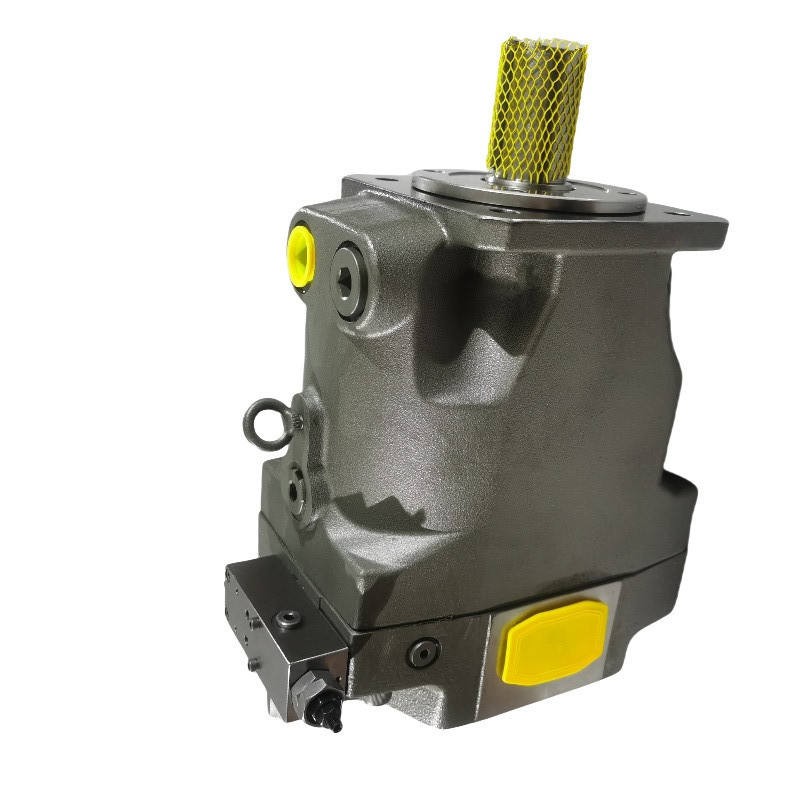

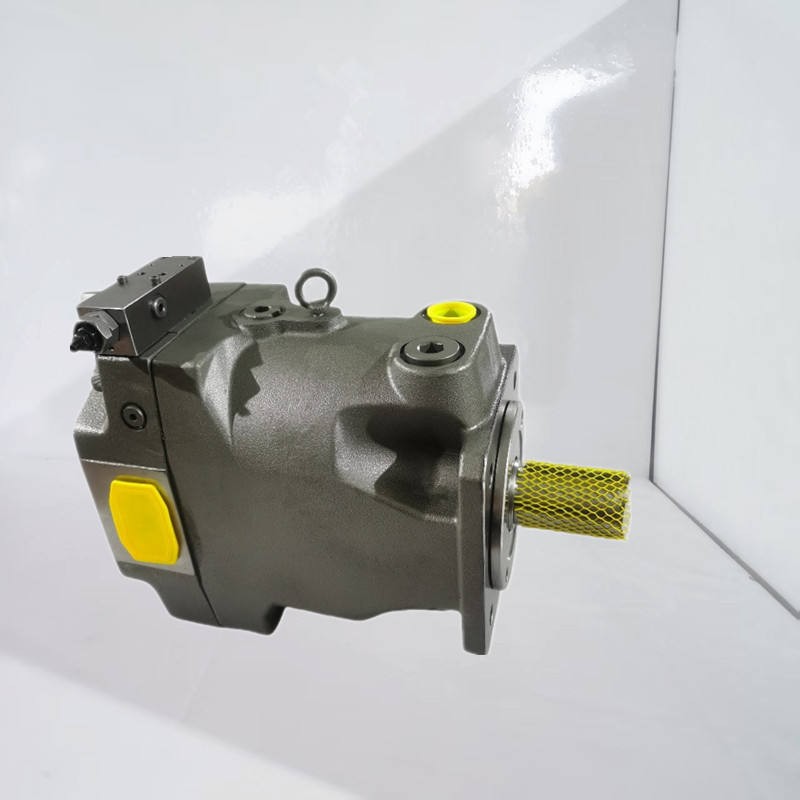

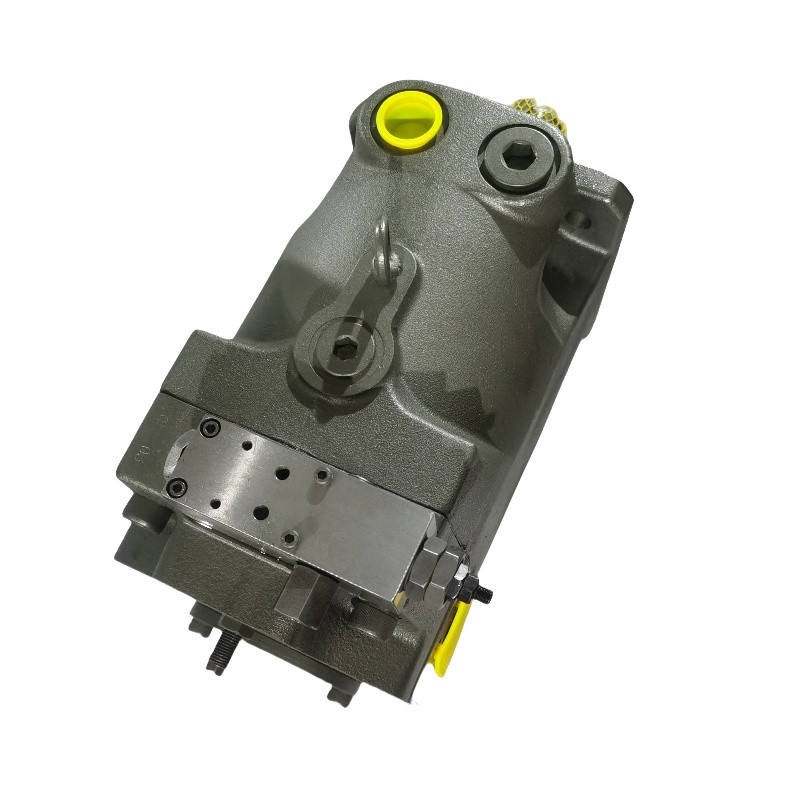

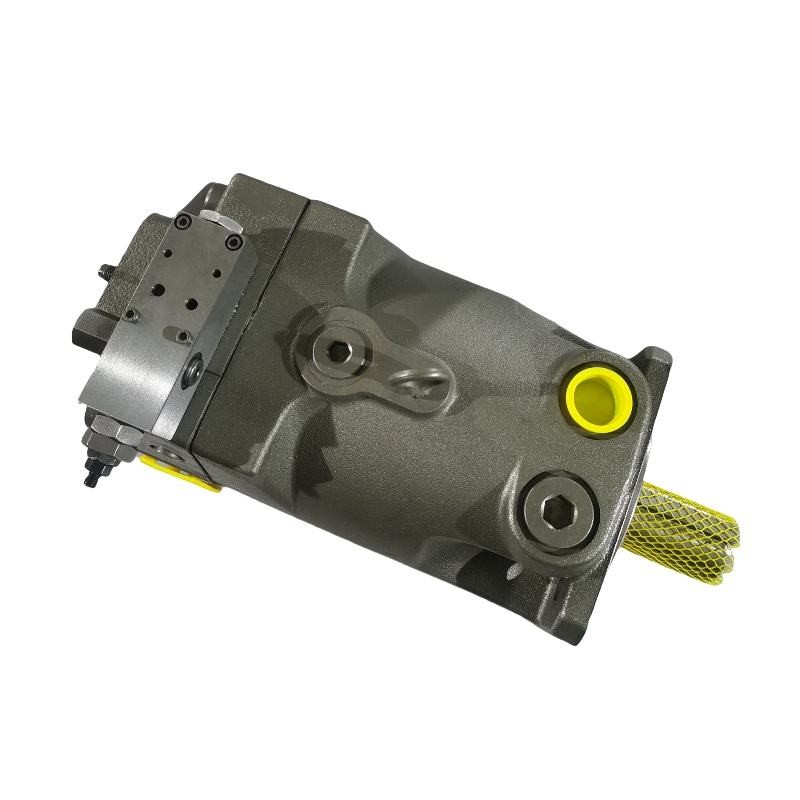

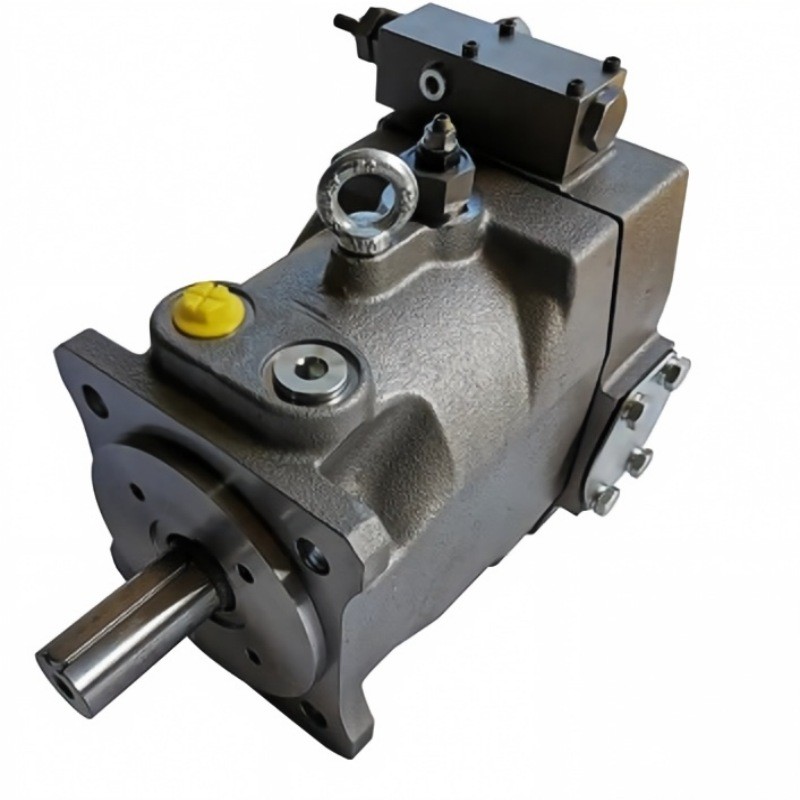

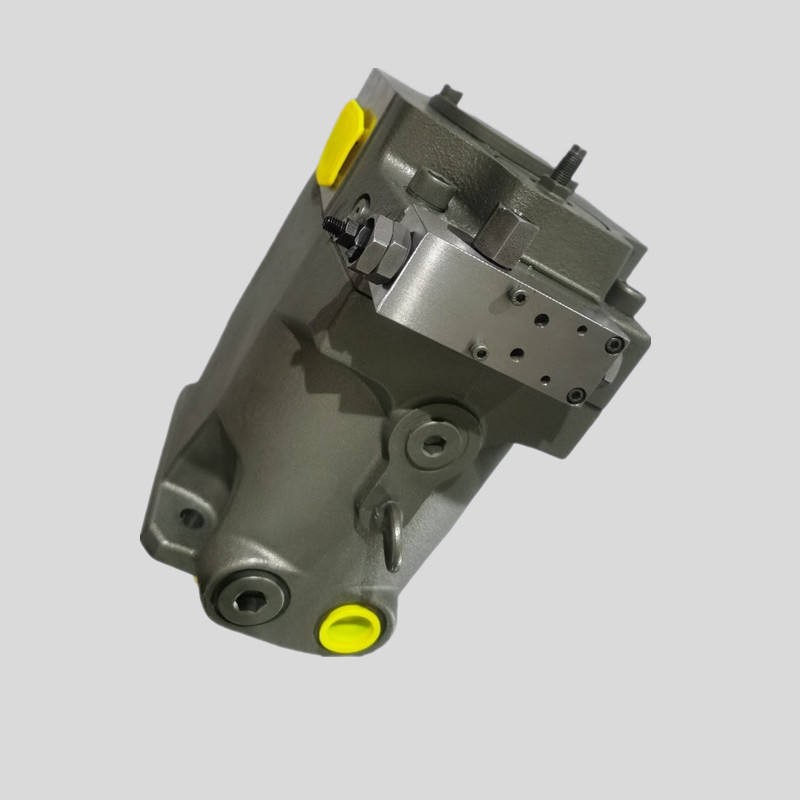

PV Series Variable Displacement Axial Piston Pump

PV Series Variable Displacement Axial Piston Pump
PV series swash‑plate open‑circuit axial piston variable pump, rated 350 bar, peak 420 bar, displacement 16‑360cc/rev, supports thru‑drive multi‑pump combination, multiple variable controls, cast iron housing, low noise & fast response, widely used for injection molding, metallurgy and construction machinery.

Product Details

Product Tags

Product Description

PV series swash plate axial piston variable pump is designed for open hydraulic circuits. Displacement ranges from 16 to 360cc/rev with rated pressure 350bar and peak pressure 420bar. It adopts nine piston structure and supports through drive for multi pump combined installation. Multiple control modes are available including pressure compensation constant power load sensing and electric proportional control. It features fast response and fits high pressure heavy duty conditions such as industry metallurgy and marine heavy duty equipment.

Key Advantages

  • High power density delivers large hydraulic power in limited installation space
  • Lower system energy consumption by supplying flow on demand to reduce waste loss
  • Good anti pollution performance extends service life of hydraulic oil and components
  • Simple maintenance and wearing parts replacement without complex tooling

Product Parameters

Product  Parameters
Size NG16 20 23 28 32 40 46 63 80 92 140 180 270 360
Displacement(cm³/rev)16 20 23 28 32 40 46 63 80 92 140 180 270 360
Speed     (rpm)3000 3000 3000 3000 2800 2800 2800 2800 2500 2300 2400 2200 1800 1750
Flow     (L/min)48 60 69 84 90 112 129 176 200 212 336 396 486 630
Nominal pressure(bar)350
Max.pressure(bar)420
Weight(approx.)(kg)19 19 19 19 30 30 30 59 59 59 90 90 172 180
Application field

  Used in open hydraulic systems,mainly used in the steel
industry,paper industry,construction machinery,etc.

Our Advantages

1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions

After Sales Service

Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

FAQ


Q: What's the lead time for orders?
A: Standard models ship in 10-20 days; customized units require 30-45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
