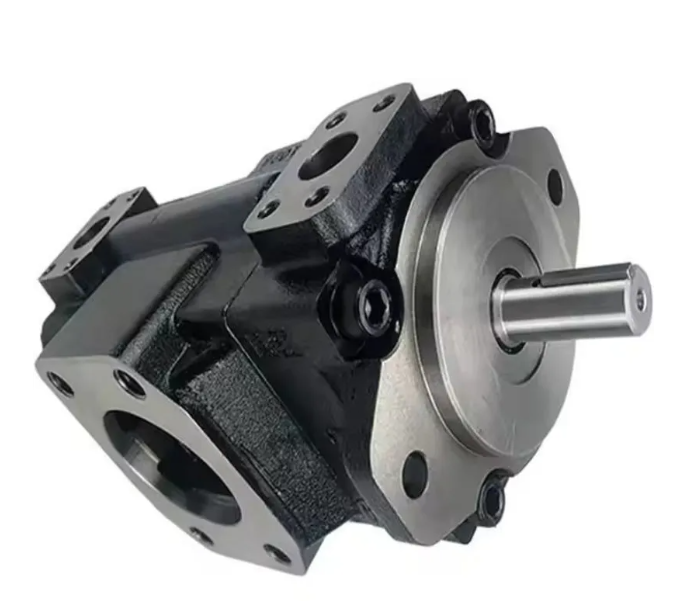

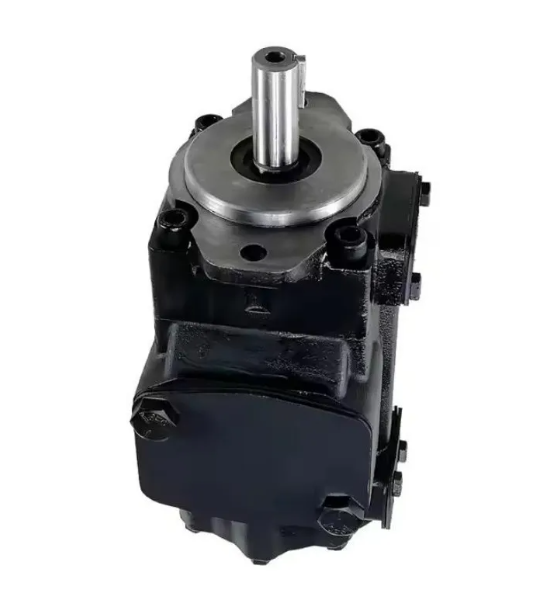

Parker Hydraulic Vane Pump T7 T7dB Denison Servo Pump
Product Description
High pressure and high performance dowel pin type vane pumps are widely used for plastic machinery, casting machinery, metal machinery, pressing machinery, refining machinery, construction machinery, marine-Machinery.
Denison T7 Series Single Vane Pump:
T7BB(S) T7DB(S) T7EB(S) T67CB T6CC T67DB T6DC T67EB T67EC T6EC T6GCC T7GBB T67GCB T7DD(S) T7ED(S) T7EE(S) T7ED T6ED T6EE
More Series
| Series | Model |
| T6 Single Pump: | T6C, T6D, T6E |

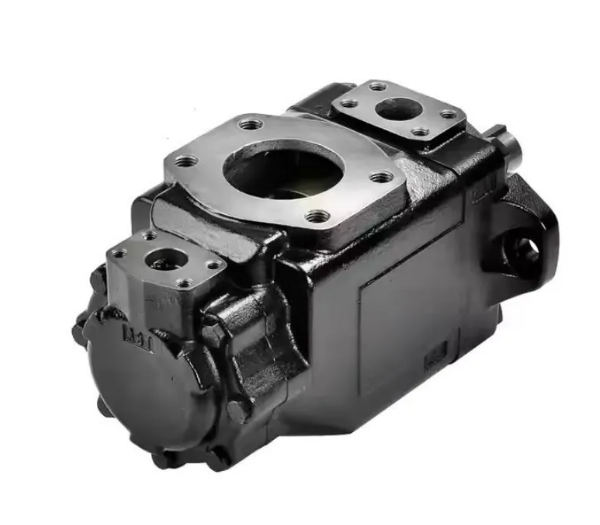

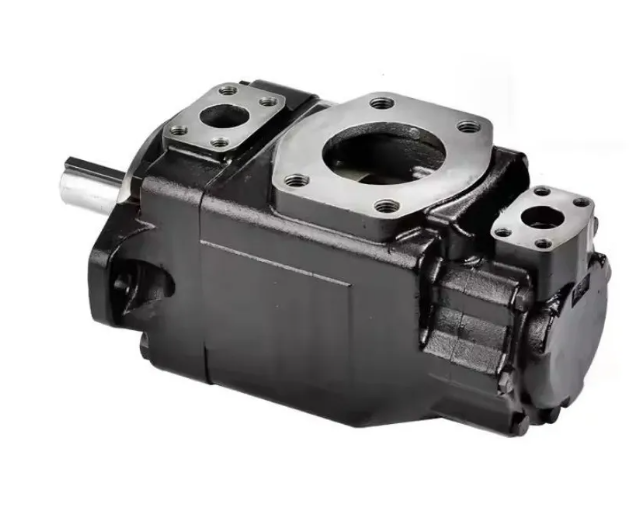

| T6 Double Pump: | T6CC, T6DC, T6EC, T6ED,T6DR,TGC |
| T6 Treble Pump: | T6DCC, T6DDCS, T6EDC, T6EDCS |
| Denison Cartridge Kits type: | T6C, T6D, T6E, T7B, T7D, T7E |
| T6C single pump & cartridge: | 003, 005, 006, 008, 010, 012, 014, 017, 020, 022, 025, 028, 031 |
| T6D, T7D single pump & cartridge: | 014, 017, 020, 024, 028, 031, 035, 038, 042, 045, 050, 061 |
| T6E, T7E single pump & cartridge: | 042, 045, 050, 052, 057, 062, 066, 072, 085 |
1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.
2. This vane pump can fit side viscosity hydraulic medium, and be started at low temperature and work at high temperature.
3. As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope.

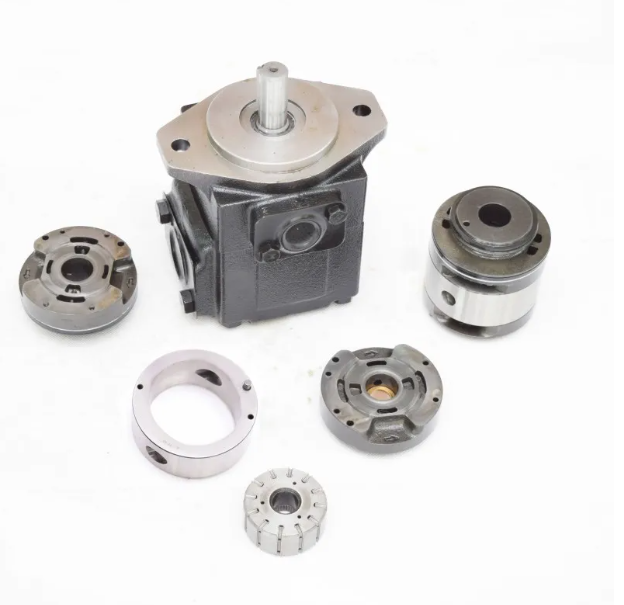

4. All parts can be replaced with the original , including cartridge kits, Shafts, Seals, Bearings and other parts.
Product Parameters
| T7BS | E10 | 1 | R | 00 | A | 1 | M0 | ||||
| Series | Displacement Volume | Type of shaft | Rotation | Porting combination | Design number | Seal class | Ports | ||||
| T7B | E02 E03 E04 E05 E06 E07 E08 E09 E10 E11 E12 E14 E15 E17 E20 | 2=(keyed) (ISO R775) | shaft end view R=Clockwise L=Counter- clockwise | 01=(standard) P=(Pressure) S=(Suction) 00 01 02 03 | A | 1=S1 BUNAN- 0,7 bar max. (for mineral oil) 5=S5 - 0,7 bar max. (for mineral oil and fire resistant fluids) | MW=Specific flange pattern S=1"-SAE flange J518 with Metric threads M0=4bolts SAE flange J518 with Metric threads 00=4 bolts SAE flange J518 with UNC threads (T7B not available) S=1-1/2" P=1" | ||||
| T7BS | 1=(keyed) (SAE B) 3 =(splined)16/32 (SAE B) 13(teeth) 4 =(splined)16/32 (SAE BB) 15(teeth) | ||||||||||
| T7D | E14 E17 E20 E22 E24 E28 E31 E35 E38 E42 | 5=(keyed) (ISO 3019-2-G32M ) | MW=4 bolts SAE flangeJ518 with Metric threads S=2-1/2" P=1-1/4" OW=4bolts SAE flangeJ518 with UNC threads (T7D not available) | ||||||||
