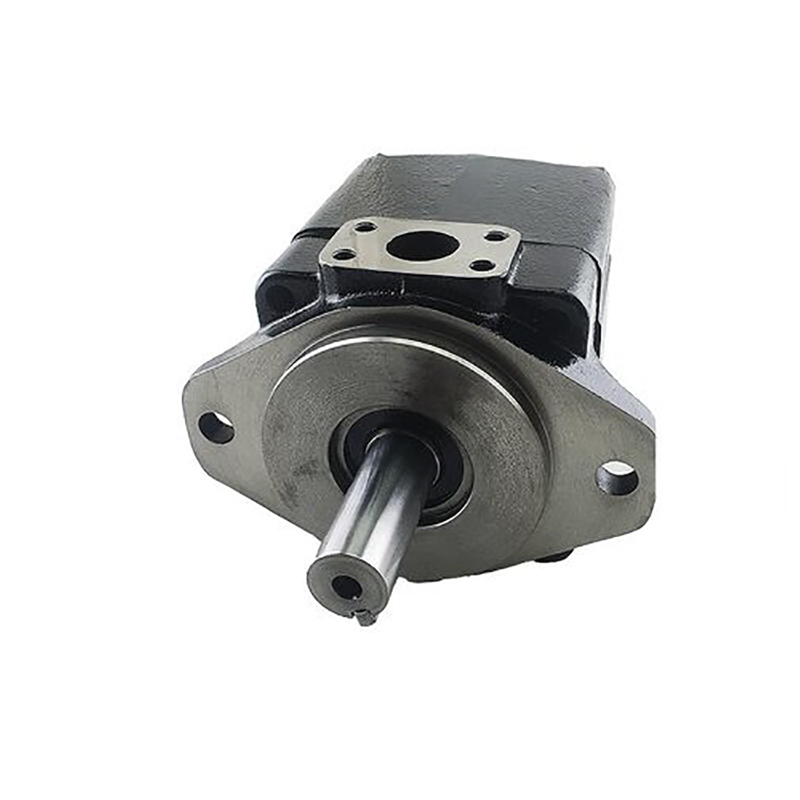

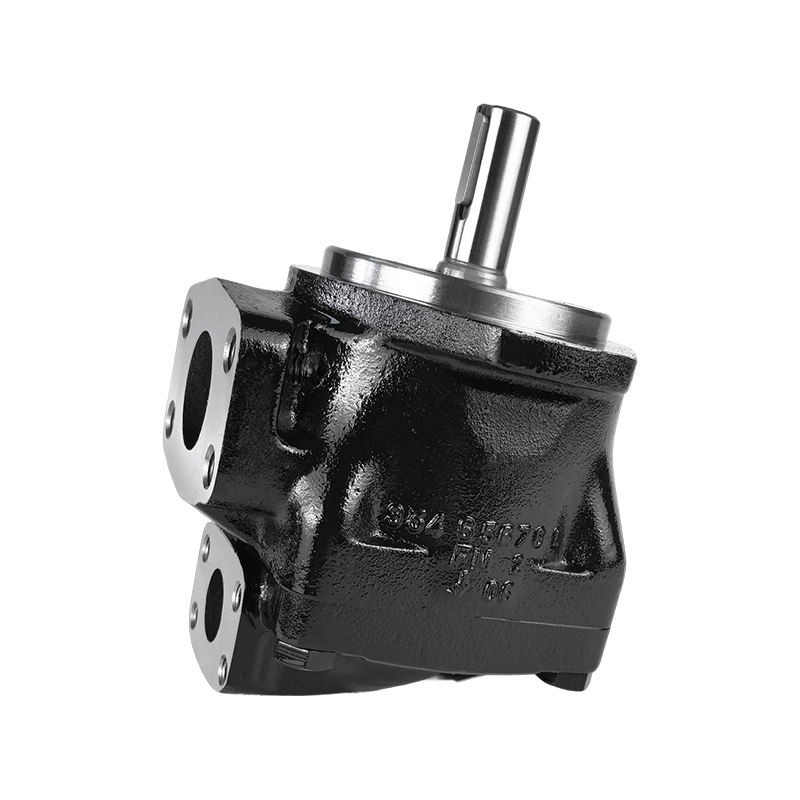

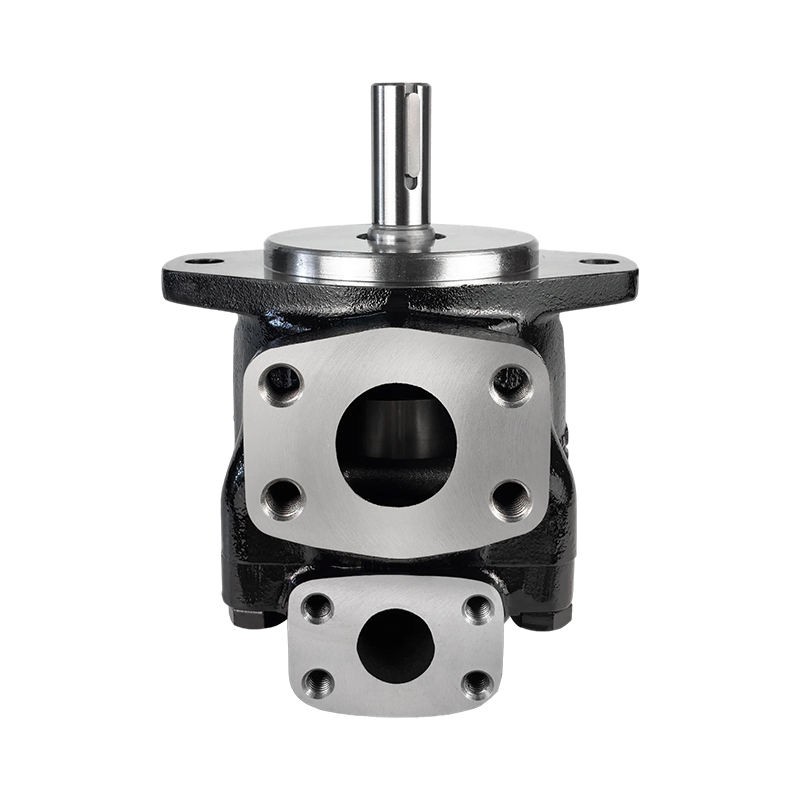

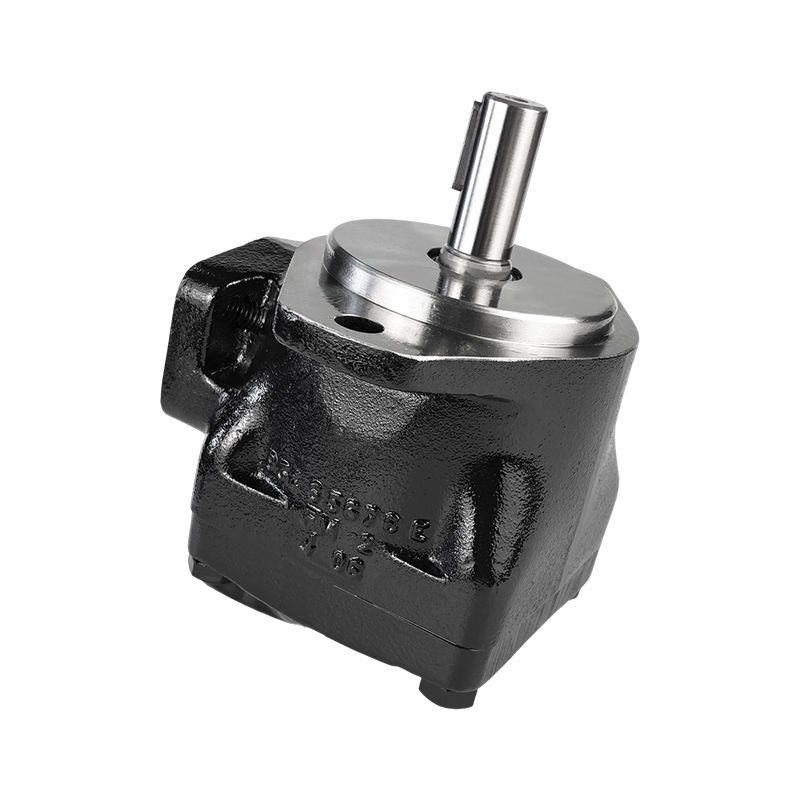

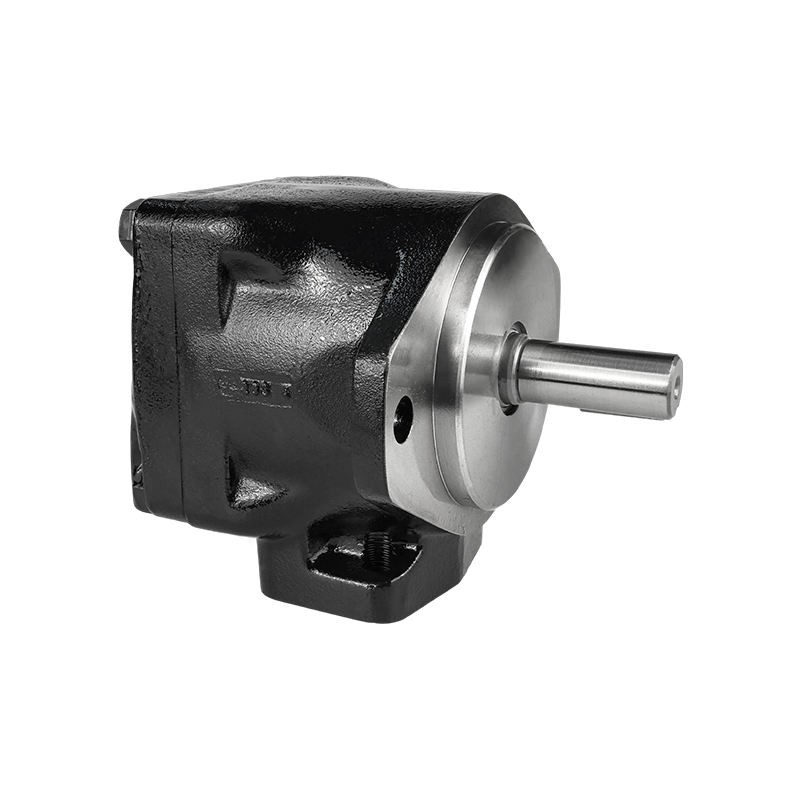

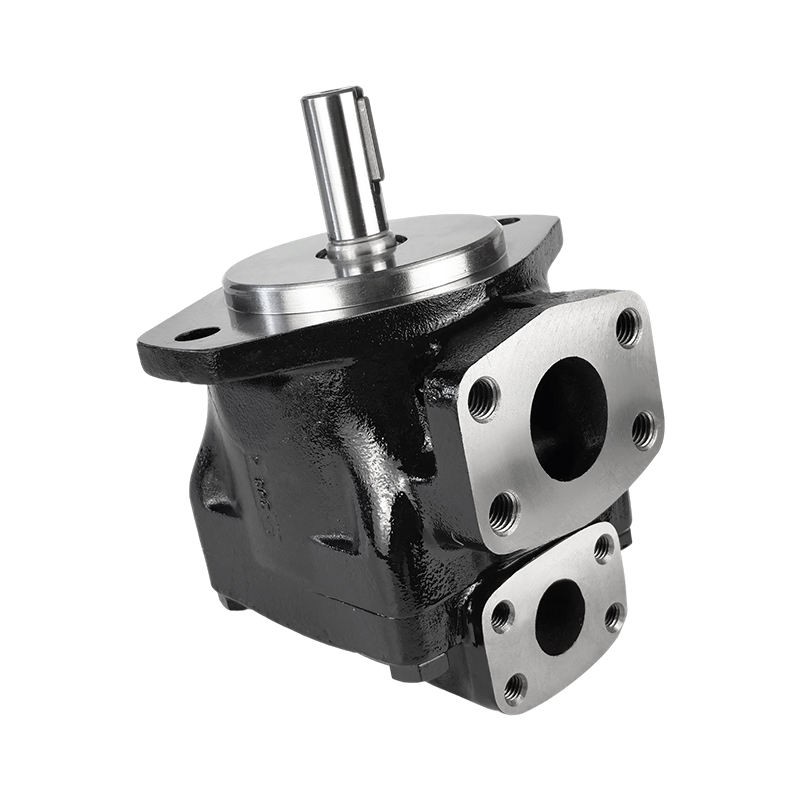

T2SCT/T2SDT Series Thru-drive Fixed Displacement Vane Pump
T2SCT and T2SDT series are thru-drive fixed displacement vane pumps. Other hydraulic pumps can be directly mounted at rear end to form tandem or triple combined oil supply systems. T2SCT is basic version while T2SDT adopts reinforced internal components to withstand higher working pressure. The pump features low flow pulsation and low operating noise. Compact structure brings easy disassembly and maintenance. It is widely used in construction machinery, special equipment, machine tools and hydraulic power units.
T2SCT/T2SDT Series Vane Pumps

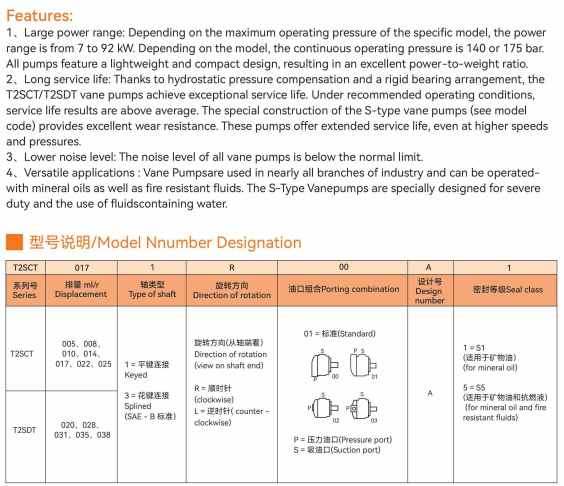

| T2SCT | 017 | 1 | R | 00 | A | 1 |
Series | ml/r Displacement | Type of shaft | Direction of rotation | Porting combination | Design number | Seal class |
| T2SCT | 005、008、 010、014、 017、022、025 | 1= Keyed 3= Splined (SAE-B) | Direction of rotation (view on shaft end) R= (clockwise) L=(counter- clockwise) | 01=(Standard) | A | 1=S1 (for mineral oil) 5=S5 (for mineral oil and fire resistant fluids) |
 | ||||||
| T2SDT | 020、028、 031、035、038 | |||||
| P=(Pressure port) S=(Suction port) |
Pin-supported vane design reduces friction and wear
High pressure capability with stable performance
Low noise and low vibration operation
High volumetric efficiency
Long service life and reliable operation
Suitable for continuous and heavy-duty applications
Applications
Industrial hydraulic power units
Injection molding machines
Press machines
Machine tools
Die casting equipment
Metallurgical and heavy-duty machinery
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
A: Standard models ship in 7-15 days; customized units require 30-45 days.
A: Yes, we have partnered service centers in key regions.
A: Absolutely! We offer tailored attachments.
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Contact us via email/phone for a quote, then confirm with a PO.
