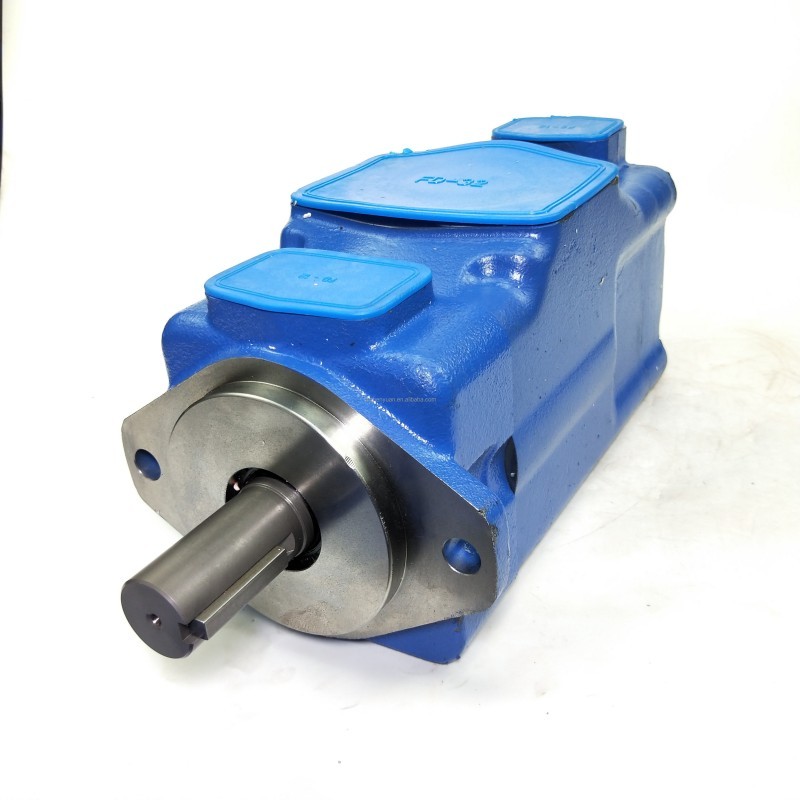

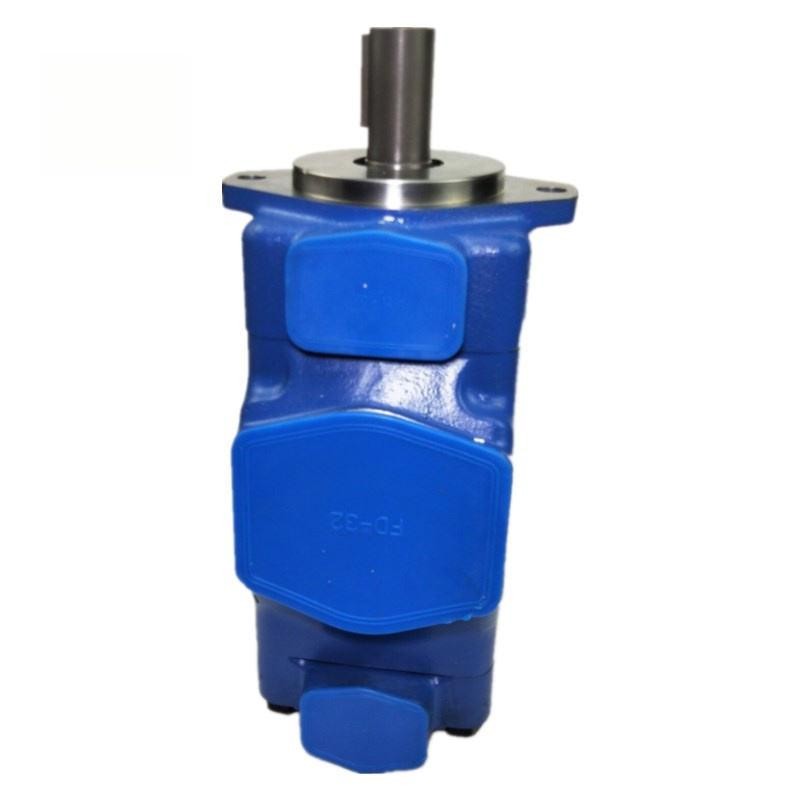

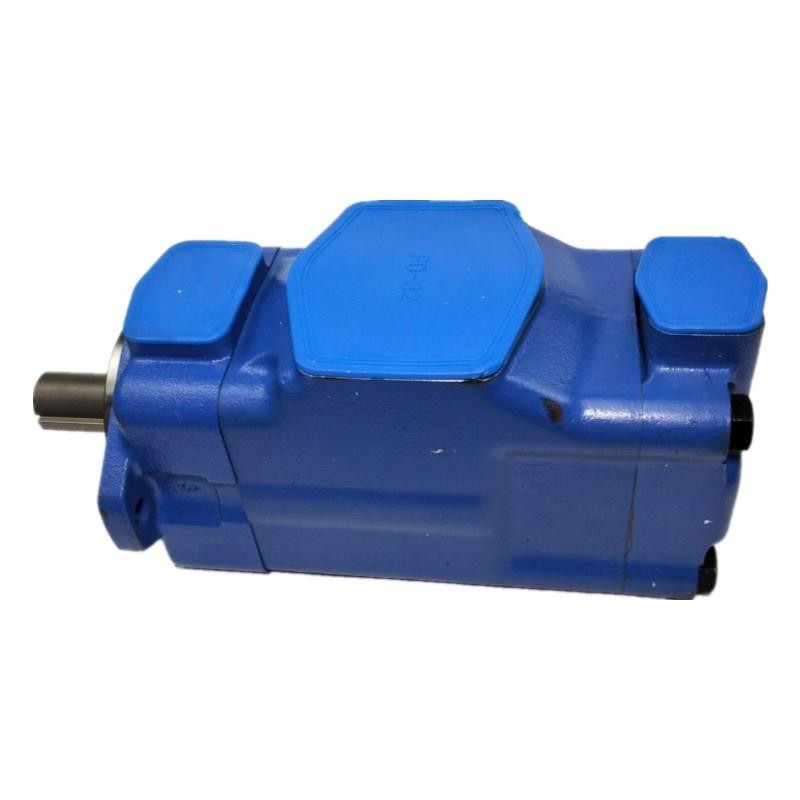

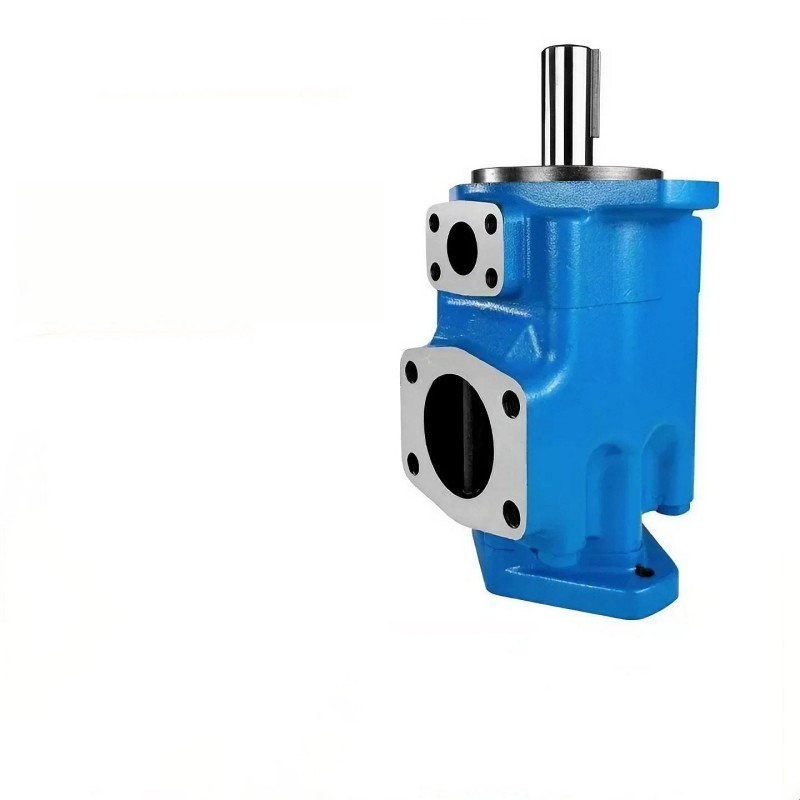

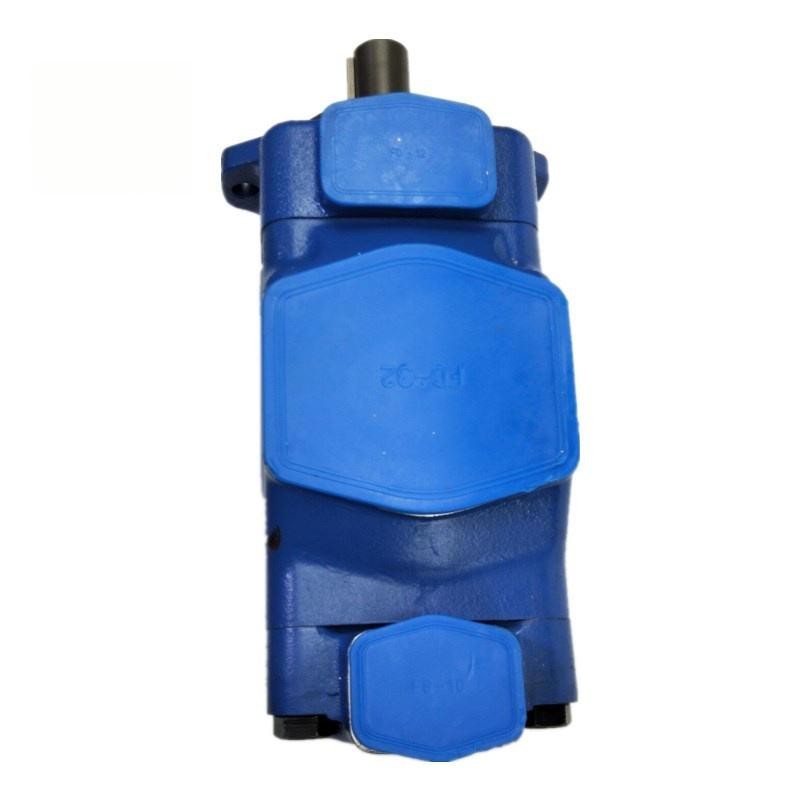

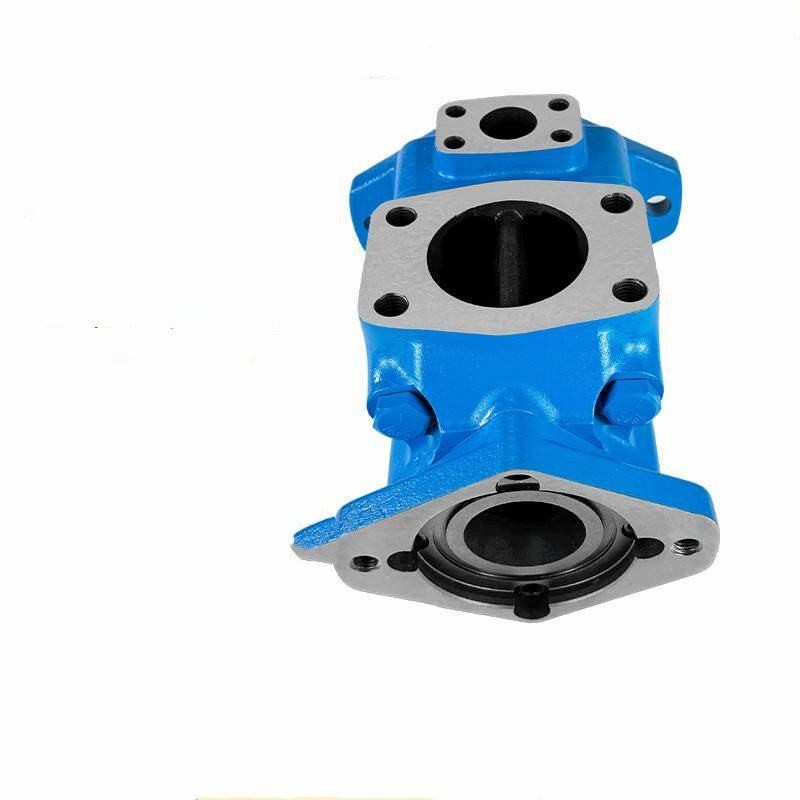

25VT 35VT 45VT Thru-Drive Balanced Fixed Displacement Intra-Vane Pump
25VT/35VT/45VT,Series-Vane Pumps

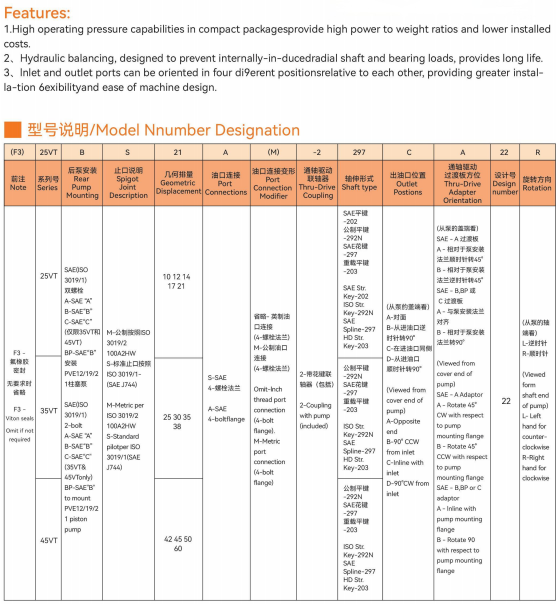

| (F3) | 25VT | B | S | 21 | A | (M) | -2 | 297 | C | A | 22 | R |
Note | Series | Rear Pump Mounting | Spigot Joint Description | Geometric Displacement | Port Connections | Port Connection Modifier | Thru-Drive Coupling | Shaft type | Outlet Postions | Thru-Drive Adapter Orientation | Design number | Rotation |
| F3- F3- Viton seals Omit if not required | 25VT | SAE(ISO 3019/1) 2-bolt A-SAE“A” B-SAE“B” C-SAE"C" (35VT& 45VTonly) BP-SAE"B" to mount PVE12/19/2 1 piston pump | M-Metric per ISO 3019/2 100A2HW S-Standard pilotper ISO 3019/1(SAE J744) | 1012141721 | S-SAE 4- A-SAE 4-boltflange | Omit-Inch thread port connection (4-bolt flange). M-Metric port connection (4-bolt flange) | 2-Coupling with pump (included) | SAE Str. Key-202 ISO Str. Key-292N SAE Spline-297 HD Str. Key-203 | (Viewed from cover end of pump) A-Opposite end B-90°cCW from inlet C-Inline with inlet D-90℃W from inlet | (Viewed from cover end of pump) SAE-AAdaptor A-Rotate 45° CW with respect to pump mounting flange B-Rotate 45° CCW with respect to pump mounting flange SAE-B,BP or C adaptor A-Inline with pump mounting flange B-Rotate 90 with respect to pump mounting flange | 22 | (Viewed form shaft end of pump) L-Left hand for counter- clockwise R-Right hand for clockwise |
| 35VT | 25303538 | ISO Str. Key-292N SAE Spline-297 HD Str. Key-203 | ||||||||||
| 45VT | 42455060 | ISO Str. Key-292N SAE Spline-297 HD Str. Key-203 |
Pin-supported vane design reduces friction and wear
High pressure capability with stable performance
Low noise and low vibration operation
High volumetric efficiency
Long service life and reliable operation
Suitable for continuous and heavy-duty applications
Applications
Industrial hydraulic power units
Injection molding machines
Press machines
Machine tools
Die casting equipment
Metallurgical and heavy-duty machinery
1.OEM/ODM capabilities
2.Competitive pricing & bulk discounts
3.Fast shipping & customs clearance support
4.Turnkey project solutions
Standard Warranty: 12 months
Extended Warranty: Optional coverage up to 24 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
