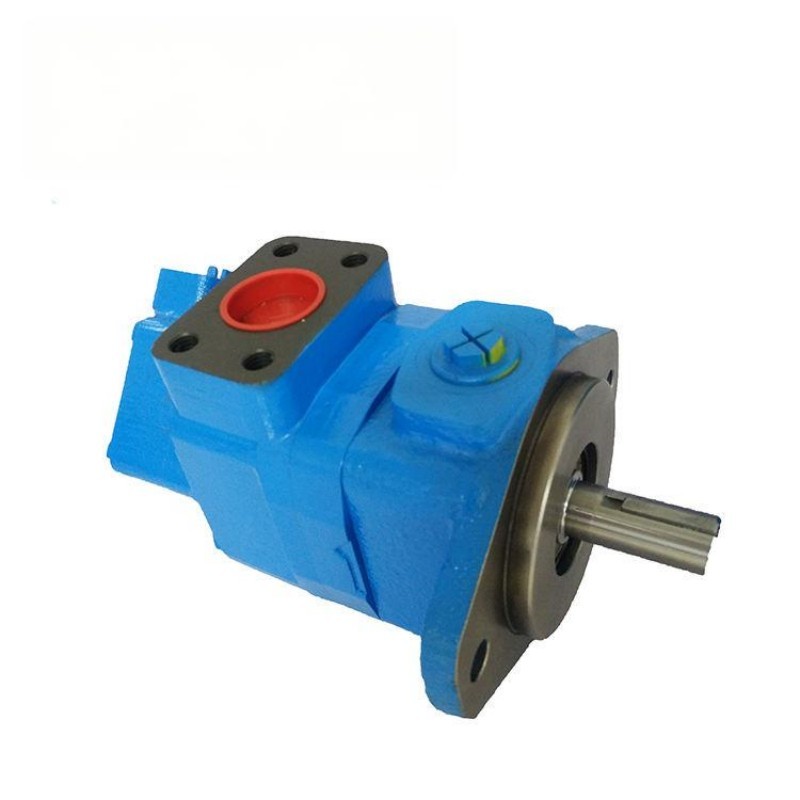

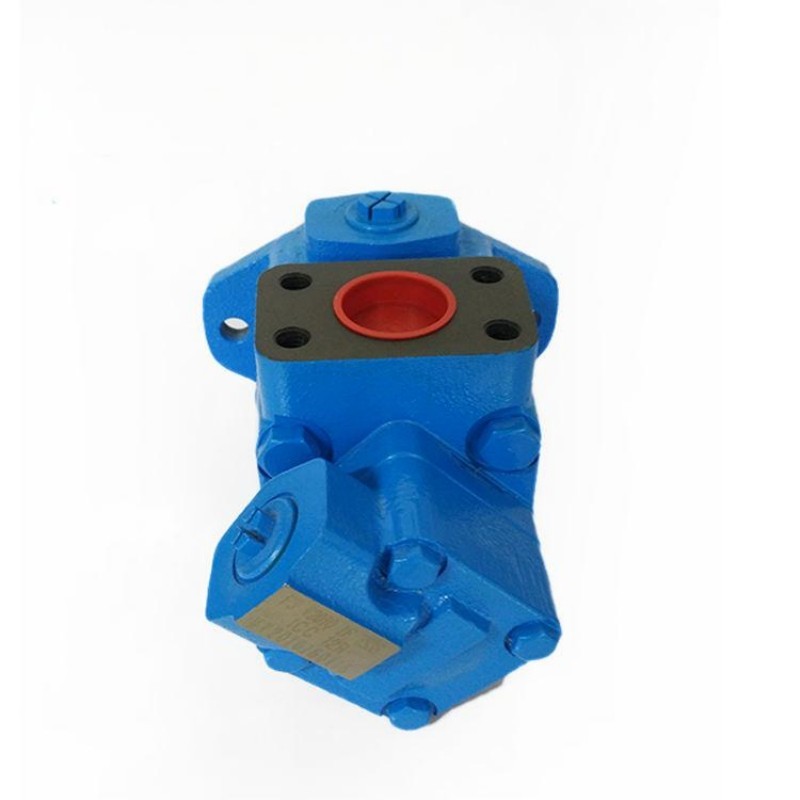

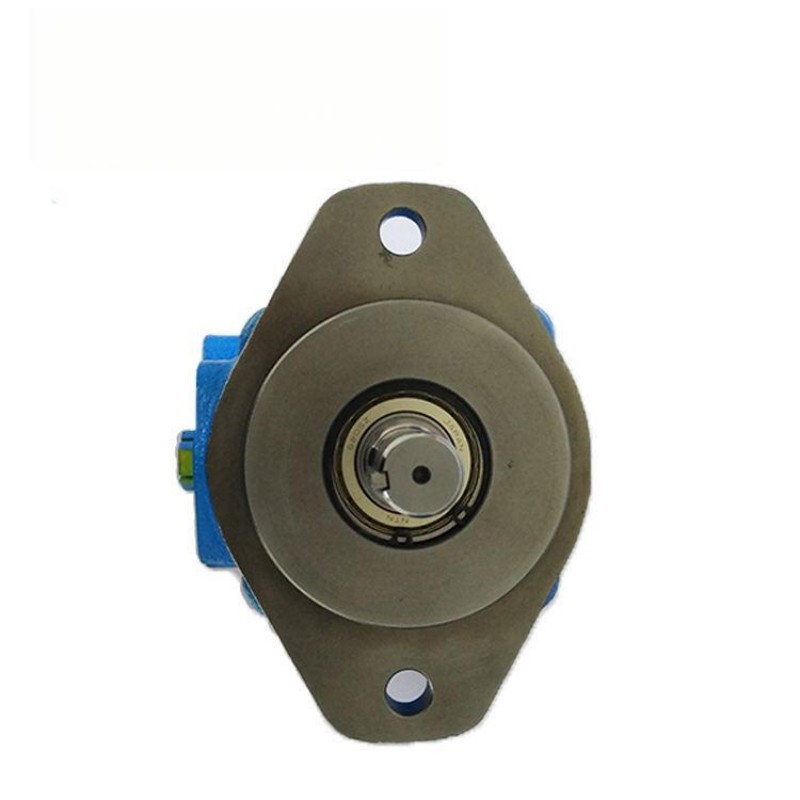

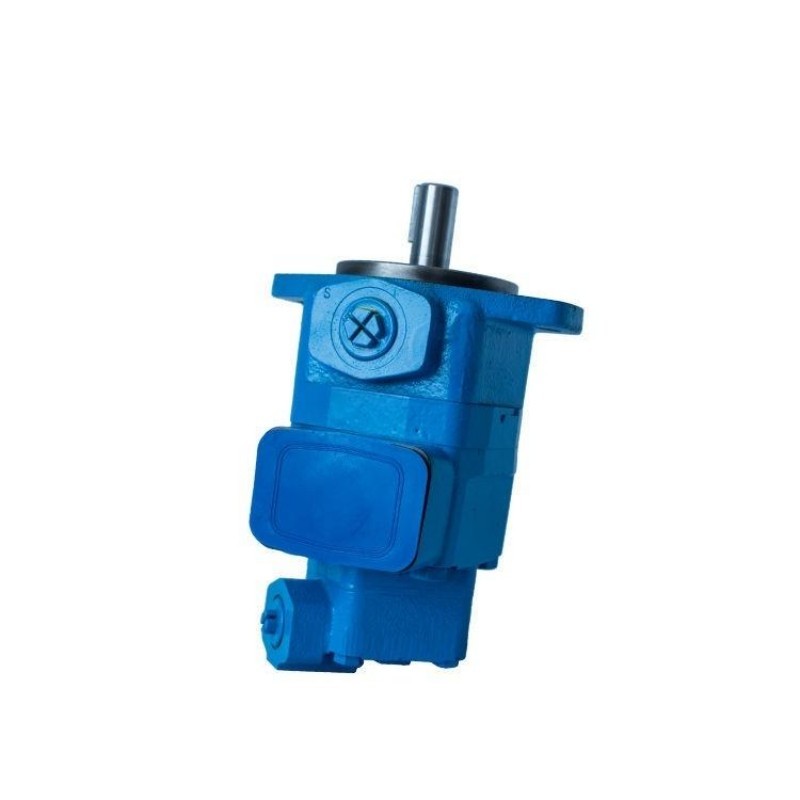

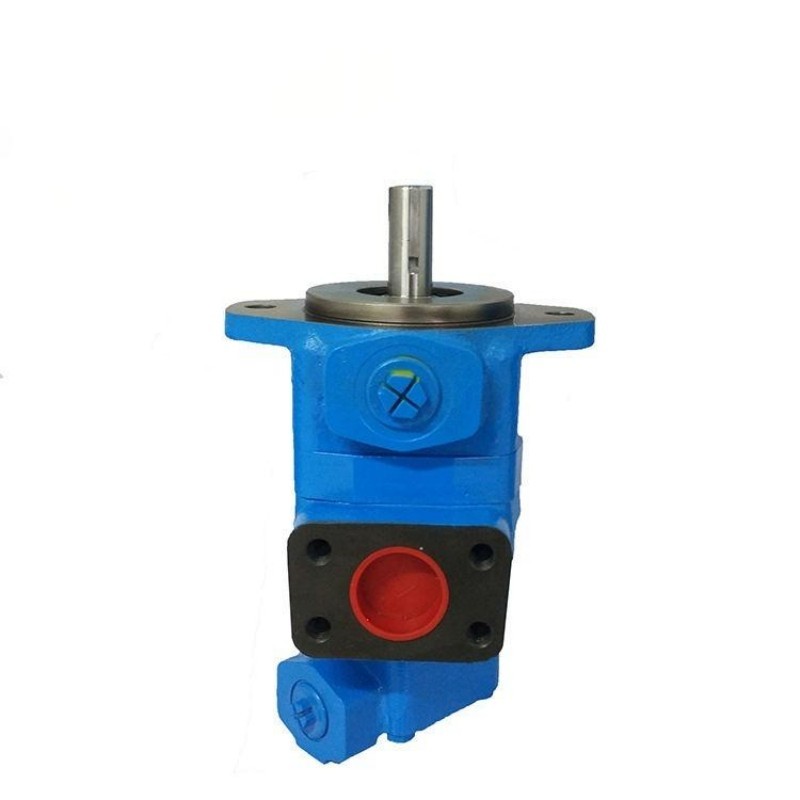

V2010 V2020 Series Tandem Balanced Fixed Displacement Vane Pump
V2010 and V2020 tandem vane pumps are integrated by series connection of V10 and V20 single pump cartridges, belonging to medium-low pressure balanced fixed displacement vane pumps. V2010 combines large-displacement V20 with small-displacement V10, one circuit for main equipment movement and another for pilot control oil supply. V2020 adopts dual equal-displacement V20 cartridges, supplying oil for two independent main hydraulic circuits simultaneously. The pump adopts symmetric balanced stator structure to counteract radial hydraulic force, reducing bearing load with low vibration and noise during operation. Built-in floating valve plate automatically compensates end clearance to maintain stable volumetric efficiency under long-term operation. Modular insert cartridge design brings easy disassembly and maintenance, and the installation angle of oil ports is adjustable. Widely applied in CNC machine tools, small injection molding equipment, hydraulic power units and light industrial automation equipment. One motor drives dual oil circuits to save installation space and supporting costs, fully interchangeable with imported tandem vane pumps of the same model.

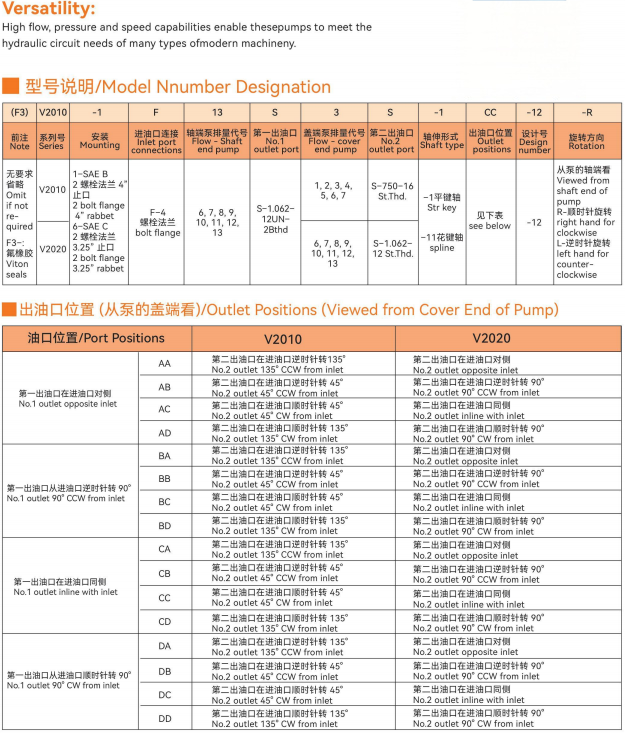

V2010/V2020,Series-Double Pumps
| (F3) | V2010 | -1 | F | 13 | S | 3 | S | -1 | CC | -12 | -R |
Note | Series | Mounting | Inlet port connections | Flow-Shaft end pump | No.1 outlet port | Flow-cover end pump | No.2 outlet port | Shaft type | Outlet positions | Design number | Rotation |
Omit if not re- quired F3-: Viton seals | V2010 | 1-SAE B 2 bolt flange 4”rabbet 6-SAE C 2 bolt flange 3.25”rabbet | F-4 bolt flange | 6,7,8,9, 10,11,12, 13 | S-1.062- 12UN- 2Bthd | 1,2,3,4, 5,6,7 | S-750-16 St.Thd. | -1 Str key -11 spline . | see below | -12 | Viewed from shaft end of pump R- right hand for clockwise L- left hand for counter- clockwise |
| V2020 | 6,7,8,9, 10,11,12, 13 | S-1.062- 12 St.Thd |
Pin-supported vane design reduces friction and wear
High pressure capability with stable performance
Low noise and low vibration operation
High volumetric efficiency
Long service life and reliable operation
Suitable for continuous and heavy-duty applications
Applications
Industrial hydraulic power units
Injection molding machines
Press machines
Machine tools
Die casting equipment
Metallurgical and heavy-duty machinery
