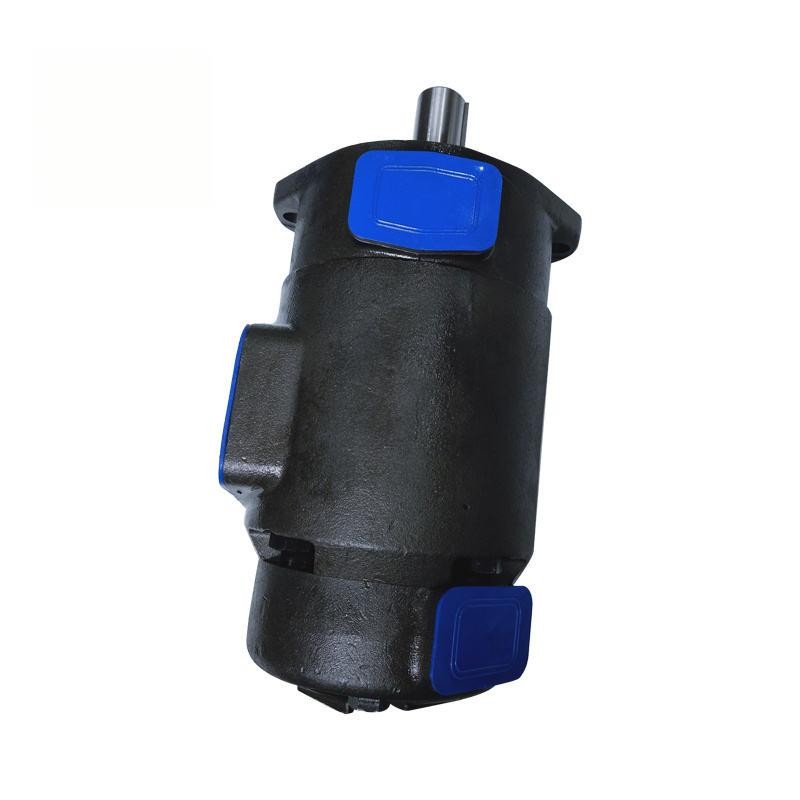

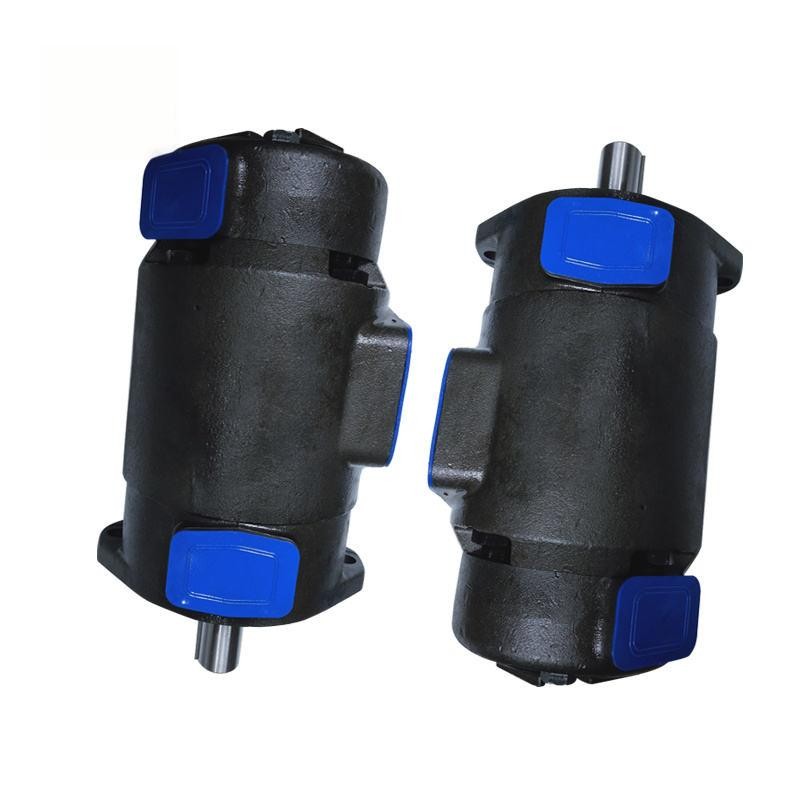

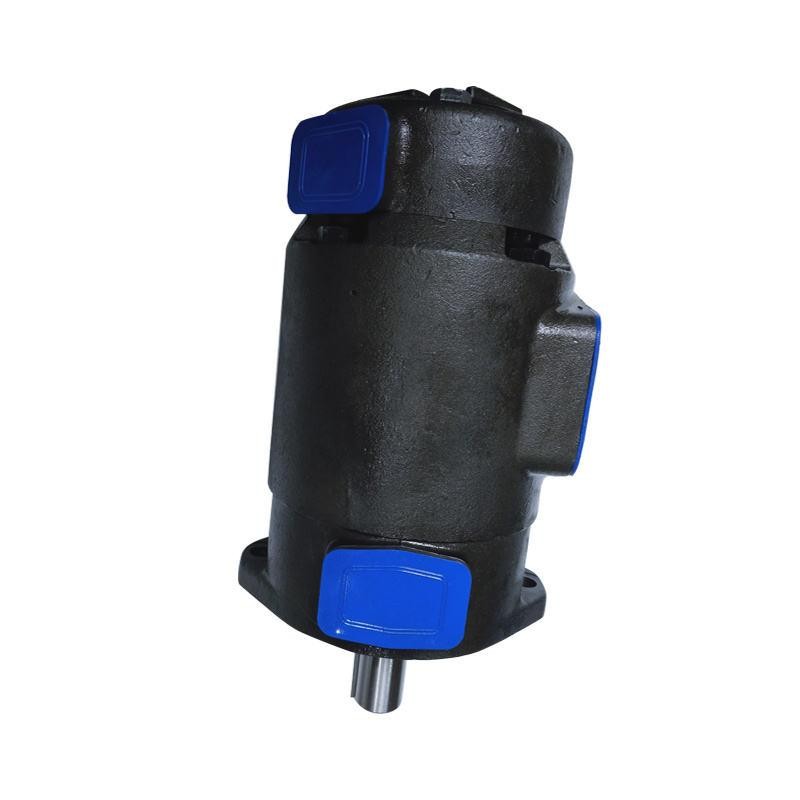

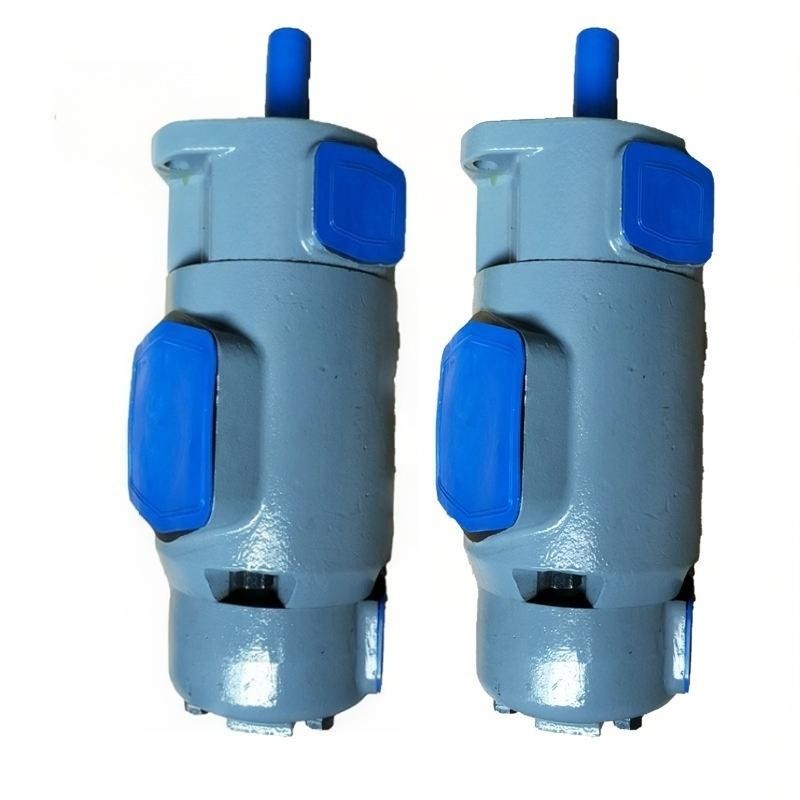

SQP,Series Single/Double Vane Pumps

Series	Displacement code	Geometric displacement cm³/r	With antiwear hydraulic oil ri phosphate ester fluid		With water glycol fluid		With water-oil emulsions		Min.speed r/min
			Max operating pressure (bar)	Max speed r/min	Max operating pressure (bar)	Max speed r/min	Max operating pressure (bar)	Max speed (r/min)
SQP(S)1	2	7.5	140	1800	138	1500	138	1200	600
	3	10.2
	4	12.8	175		157
	5	16.7
	6	19.2
	7	22.9
	8	26.2
	9	28.8
	10	31
	11	35
	12	37.9	160		138
	14	44.2	140
	10	32.5	175	1800	157	1500	138	1200	600
	12	38.3
	14	43.3
	15	46.7
	17	52.5
	19	59.2
	21	65
	25	78.6	140		138
SQP(S)3	17	53.3	175	1800	157	1500	138	1200	600
	21	66.7
	25	79.2
	30	95
	32	100
	35	109
	38	118
	42	134	140		138
	45	140	138
	30	96	175	1800	157	1500	138	1200	600
	35	109
	38	128
	42	134
	45	140
	50	156
	57	181
	60	189
	66	210
	75	236	138		138

• Pin-supported vane design reduces friction and wear

• High pressure capability with stable performance

• Low noise and low vibration operation

• High volumetric efficiency

• Long service life and reliable operation

• Suitable for continuous and heavy-duty applications

Applications

• Industrial hydraulic power units

• Injection molding machines

• Press machines

• Machine tools

• Die casting equipment

• Metallurgical and heavy-duty machinery

1. OEM/ODM capabilities
   2.Competitive pricing & bulk discounts
   3.Fast shipping & customs clearance support
   4.Turnkey project solutions

   Standard Warranty: 12 months
   Extended Warranty: Optional coverage up to 24 months.
   Global Support: 24/7 technical assistance and spare parts supply.
   Training: On-site or remote operation/maintenance training.
